ASUS ROG Strix Z690-G Gaming Wifi
LGA 1700, Intel Z690 (DDR5), mATXProduktinformationen
Das ROG Strix Z690-G Gaming WiFi ist die erste Wahl für Enthusiasten, die gerne kompakte mATX-Setups bauen. Erstklassige Stromversorgung, Kühlung und die Netzwerkstandards wurden zusammen mit DDR5 und PCIe 5.0 integriert, um die volle Leistung der Intel Core Prozessoren der 12. Generation zu entfesseln. Darüber hinaus gibt es eine Reihe von ASUS-exklusiven intelligenten Steuerungen, die jeden Aspekt der Systemleistung optimieren.
Die digitale Leistungssteuerung und eine Reihe von Leistungsstufen sorgen für die nötige Power, um die Intel-CPUs zu beherrschen. Zwei starke Kühlkörper, die mit dem metallischen I/O-Shield verbunden sind, kühlen die VRMs. Diese Struktur bietet ausreichend Masse und Oberfläche, um die Wärmeentwicklung von Intels Prozessoren zu bewältigen.
Prozessor-Familie | Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold |
Arbeitsspeichertyp | DDR5-RAM |
Anzahl Speichermodule (RAM) | 4 x |
Interne Anschlussmöglichkeiten | S-ATA III (6x) |
Kabellose Übertragung | Bluetooth, WLAN |
Mainboard Features | Front Panel Audiostecker |
Artikelnummer | 17252884 |
Hersteller | ASUS |
Kategorie | Mainboard |
Herstellernr. | 90MB19G0-M0EAY0 |
Release-Datum | 4.11.2021 |
Externe Links |
Formfaktor | Micro ATX (mATX) |
Sockel | LGA 1700 |
Chipsatz | Intel Z690 (DDR5) |
Mainboard Features | Front Panel Audiostecker |
Betriebssystem Kompatibilität | Windows 10 |
BIOS Typ | UEFI AMI |
Kabellose Übertragung | Bluetooth, WLAN |
WLAN Standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax |
Prozessor-Familie | Celeron, Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen, Pentium Gold |
Arbeitsspeicher Formfaktor | DIMM |
Anzahl Pins | 288 x |
Anzahl Speichermodule (RAM) | 4 x |
Max. Speicher (RAM) | 128 GB |
Arbeitsspeicher Chip | DDR5-6000 |
Max. RAM OC | 6000 MHz |
Unterstützte Arbeitsspeichergeschwindigkeit | 4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz |
Arbeitsspeichertyp | DDR5-RAM |
RAM-Puffer | unbuffered |

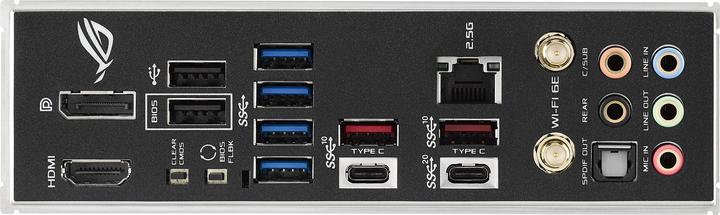

Video-Anschlüsse | DisplayPort (1x), HDMI (1x) |
Video-Anschluss Version | Displayport 1.4, HDMI 2.1 |
Netzwerk-Anschlüsse | RJ45 (1x) |
Ethernet Controller Marke | Realtek |
Ethernet Controller | Intel, Intel I225-V |
Max. Port Geschwindigkeit | 2.50 Gbit/s |
Chip | Realtek ALC4080 |
Audiokanal | 7.1 Kanal |
Audio-Anschlüsse | Klinke 3.5mm (5x) |
RAID Konfiguration | 0, 1, 10, 5 |
Interne Anschlussmöglichkeiten | S-ATA III (6x) |
Erweiterungs-Slot | PCI Express x1 (Gen 3) (1x), PCI Express x16 (Gen 4) (1x) |
Anzahl Lüfter Stecker | 3 |
USB-Anschlüsse | USB-A |
Genaue USB-Anschlüsse | USB-A 3.2 Gen 1 (4x), USB-A 3.2 Gen 2 (2x) |
Strom Anschlüsse | 8-pin PCI-E |
Herstellerengagement | SBTi |
CO₂-Emission | |
Klimabeitrag |

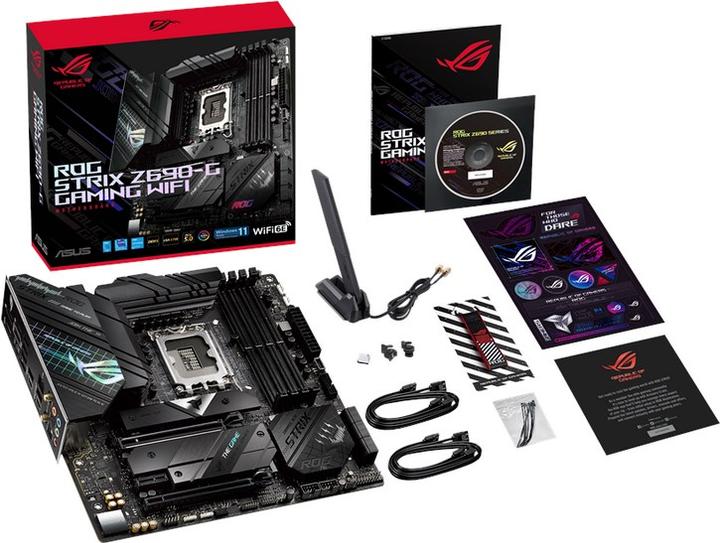

Lieferumfang | Sata Kabel |
Länge | 244 mm |
Breite | 244 mm |
Höhe | 244 mm |
Gewicht | 1200 g |
Länge | 30.70 cm |
Breite | 28.30 cm |
Höhe | 8.50 cm |
Gewicht | 2.02 kg |
