Durchflussrate max. = 1 → 150 cm³/s (Wasser), 3 → 300 cm³/s (Öl)
Anschluss = M12-Anschluss
Steuerausgang = PNP
Montageart = Kompakt
Versorgungsspannung = 21 → 26 V dc
Bildschirm = LED
Rohrdurchmesserbereich = 1/4 Zoll
Betriebstemperatur min. = -25°C
Betriebstemperatur max. = +80°C

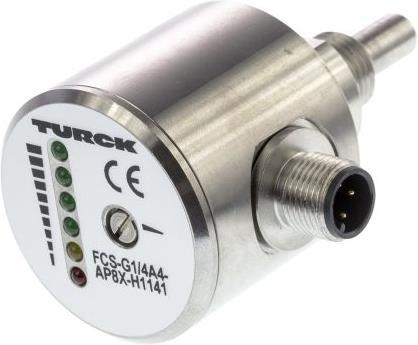

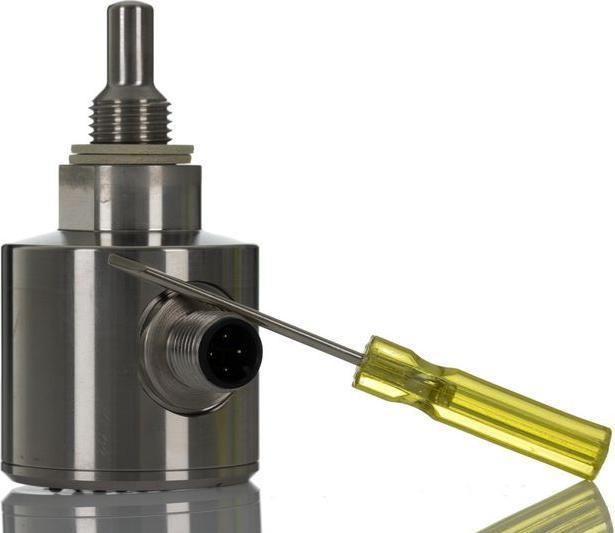

Digital Flow Control Sensor. Sensor and signal processor in one stainless steel compact housing On-delay time: 8s (typical) Ingress protection to IP67 Simple adjustment via LED bar graph and potentiometer Response time: 12s max. Switch on and off times: 2s typical Output - PNP transistor; short-circuit proof; reverse polarity protected Fluid temperature range: –25 to +80°C (100°C for 10 minutes max.) M12, four-pin plug Flow rates: 1 to 150cm/s (water); 3 to 300cm/s (oil); 2 to 30m/s (air).
