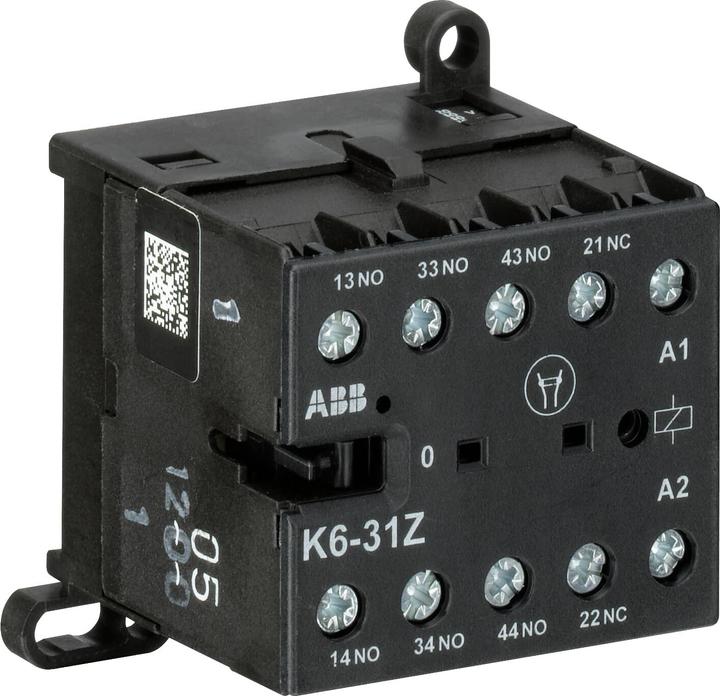

ABB Stotz S&J Auxiliary Relay K6-31Z-80

Manufacturer: ABB Stotz S&J
Designation: Auxiliary Relay
Type: K6-31Z-80
Rated control supply voltage Us at AC 50 Hz: 220-240 V
Rated control supply voltage Us at AC 60 Hz: 220-240 V
Voltage type for actuation: AC
Rated operational current Ie, 400 V: 3 A
Connection type for auxiliary circuit: Screw connection
Mounting type: DIN rail
Interface: no
Number of auxiliary contacts as normally open: 1
Number of auxiliary contacts as normally closed: 3
With LED indicator: no
Suitable for manual operation: no

Additional details: Small auxiliary relays K/KC 6 fulfill relay functions and represent a series with very compact dimensions and connection options in screw, solder pin, and flat plug technology. The 4-pole devices offer a wide range of applications even in unfavorable space conditions. With their AC or DC control, they switch control circuits or load circuits up to 4 A (230 V). Mountable accessories include extinguishing elements as well as 2-pole auxiliary switches that can be mounted laterally or from the front.
EAN: 4013614153280.
