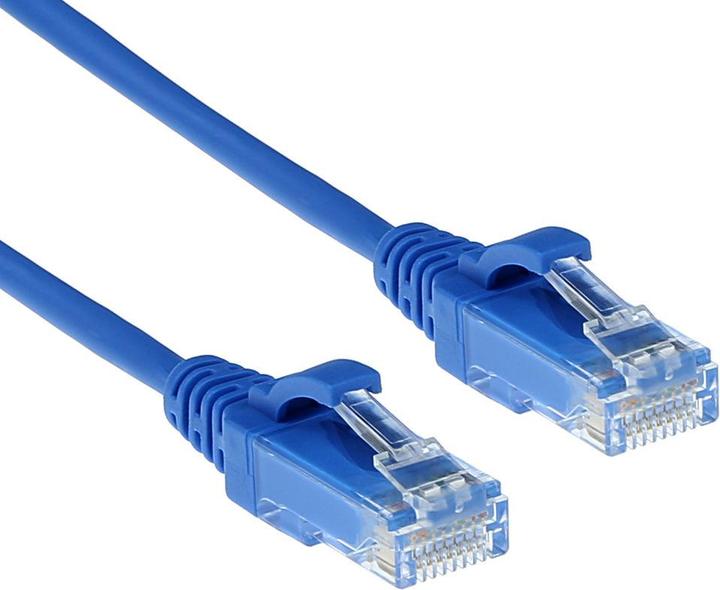

ACT Blue 5 meter LSZH U/UTP CAT6 datacenter slimline patch cable snagless with RJ45 connectors
U/UTP, CAT6, 5 mPrice in EUR including VAT
Free shipping starting at 30,–

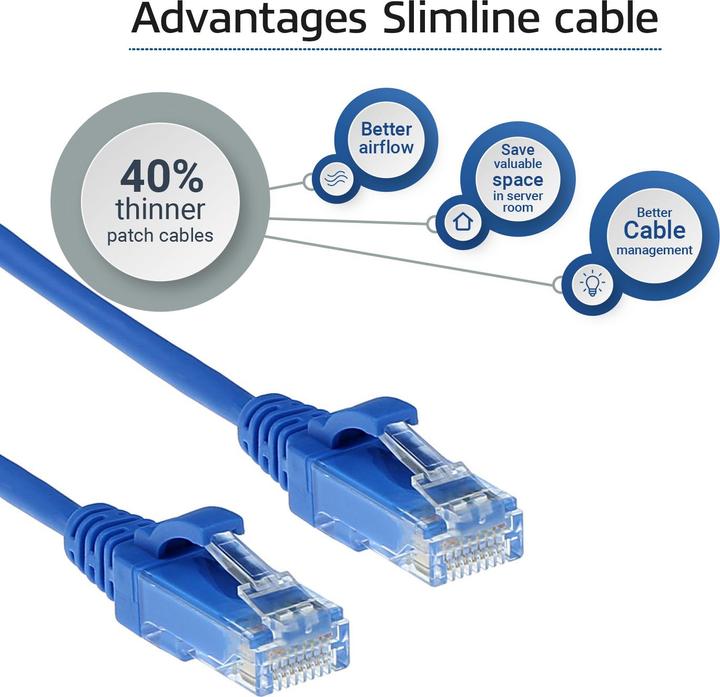

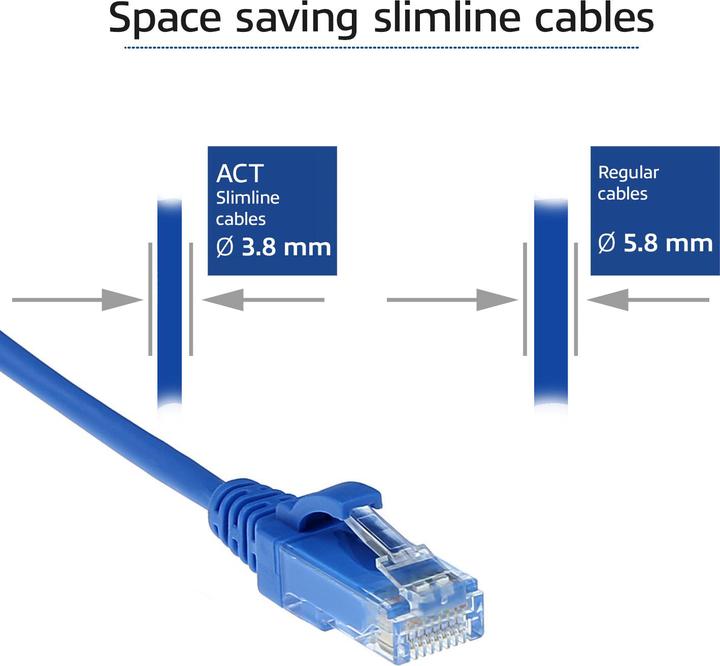

CAT6 U/UTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6 patch cords, and the bending radius is lower compared to regular patch cords. All this results in better airflow in the cabinet.
Although ISO/IEC and TIA standards describe the use of patch cords between 22 and 26 AWG, it is possible to use 28 AWG patch cables, but this will result in higher attenuation, particularly at higher frequencies.
ACT therefore recommends a shorter permanent link length than with regular 24 AWG patch cords to accommodate this higher attenuation.
ACT advises a maximum bundle size of 24 cables in PoE applications to assist in limiting the temperature increases in the cables associated with delivering PoE deployments. Current standards work limits the maximum temperature increase to less than 15 degrees Celsius above ambient for the center cable in a bundle.
Patch cable type | Copper cable |
Contact assignment | crossover |
Item number | 17206407 |
Manufacturer | ACT |
Category | Network cables |
Manufacturer no. | DC9605 |
Release date | 21.10.2021 |
Cable colour | Blue |
Material | Copper |

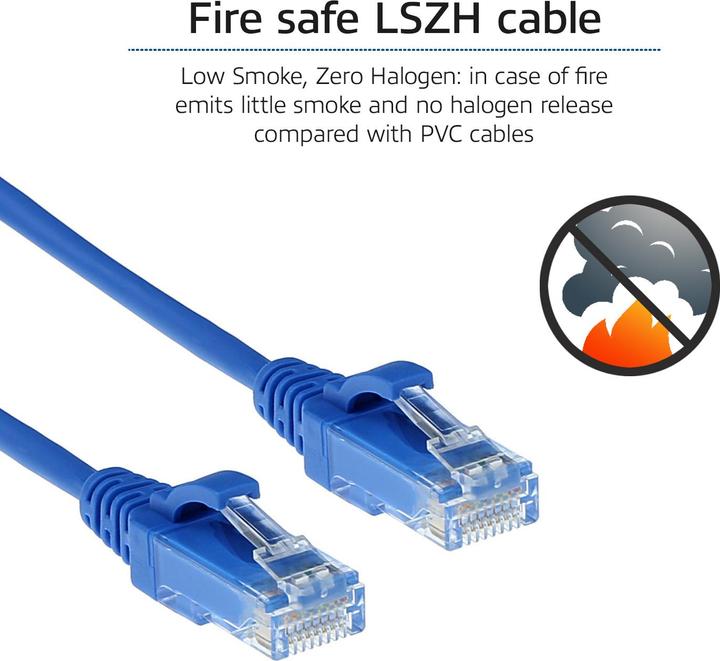

Material of the isolation | LSZH |
Connection A | RJ45 |
Connection B | RJ45 |
Cable Application | Network |
Cable design | Slim |
Plug type | Gold-plated contacts |
Cable connection | Connection (m/m) |

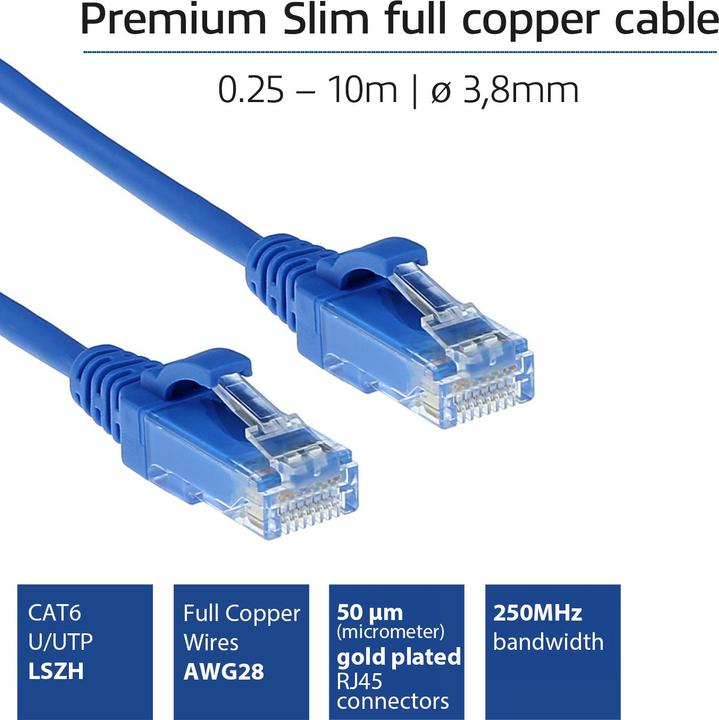

American Wire Gauge (AWG) | 28 |
Frequency | 250 MHz |
Temperature range | -20° - +60° C |
Patch cable type | Copper cable |
Cable category | CAT6 |
Contact assignment | crossover |
Shield | U/UTP |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Scope of delivery | ACT Blue 5 metre LSZH U, UTP CAT6 datacenter slimline patch cable with RJ45 connectors CAT6 U, UTP SLIMLI |
Diameter | 3.80 mm |
Length | 5 m |
