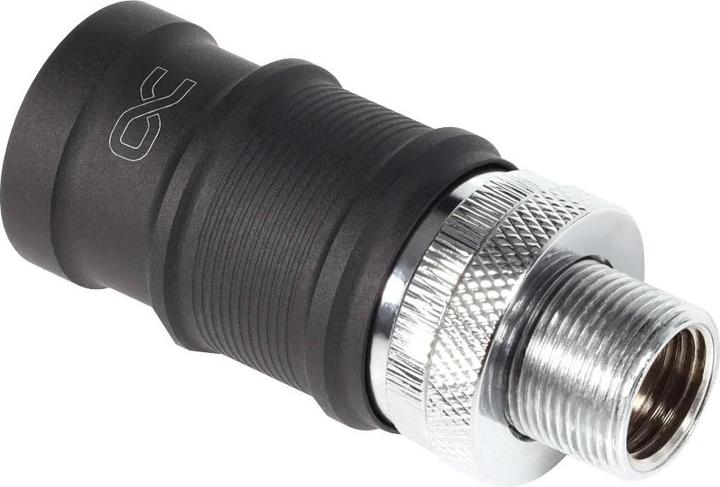

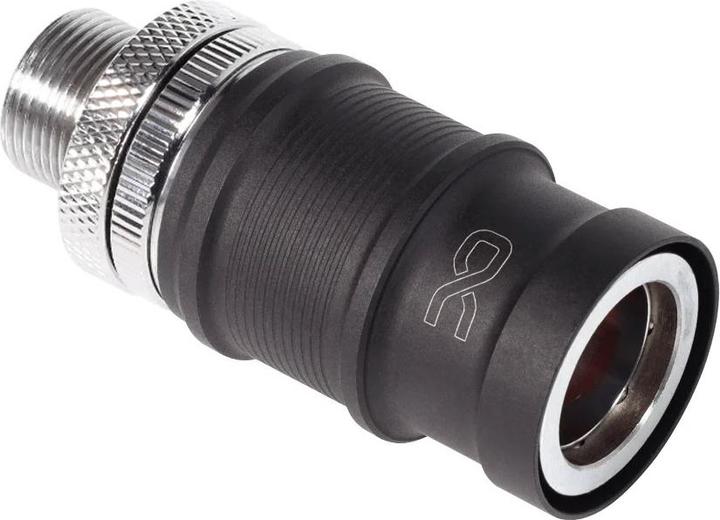

The Alphacool ES quick disconnect is optimized for use in server and workstation systems. It features precise manufacturing quality, excellent water flow, and a secure click mechanism for closure.

Maximum Flow: Other quick disconnects can negatively impact water flow. Therefore, the quick coupling has been fundamentally redesigned to minimize disruption to the water flow. Special emphasis was placed on achieving minimal manufacturing tolerances.

Quick and Easy: The ES quick disconnects from Alphacool simplify the setup of server and workstation systems. Thanks to the user-friendly operation, complex systems can be connected quickly and effortlessly. To open the quick disconnect, the outer ring is pulled back. The seal closes immediately, preventing coolant from leaking. To lock the quick disconnects, simply push them together. A clicking sound confirms secure closure.

Function of the bulkhead fitting: The bulkhead fitting allows a hose to be routed through, for example, a hole in the case. It is securely attached to the case using a locknut. Standard hose connections with 1/4" can then be screwed on.

Note: To avoid damaging the O-ring, the quick disconnect should not be opened or closed when dry.

Technical Data:
Dimensions (L x D): 62 x 28 mm
Weight: 115 g
Material: nickel-plated brass, plastic
Connection: 1x 1/4" female
Color: chrome, black.
