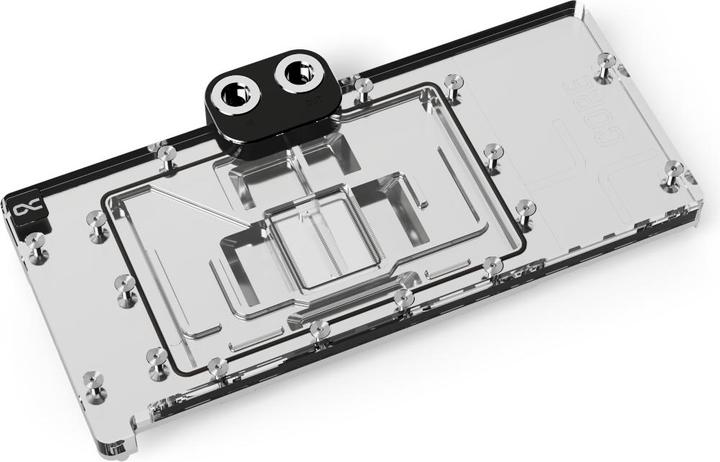

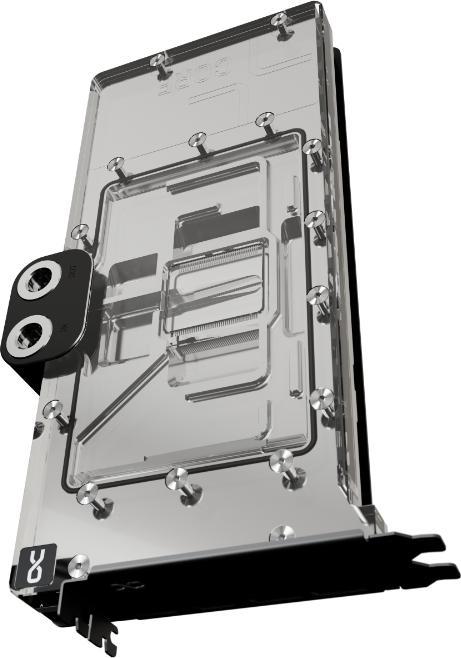

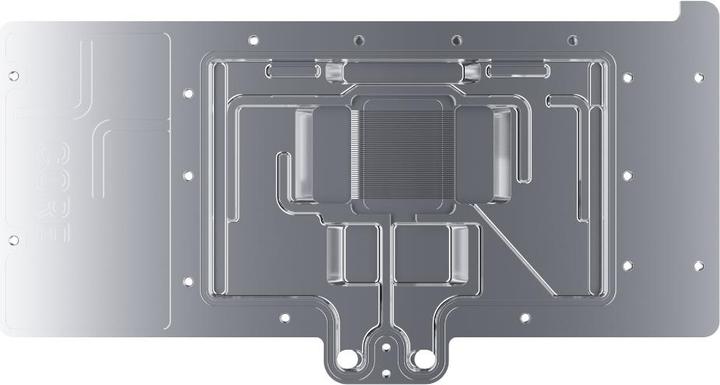

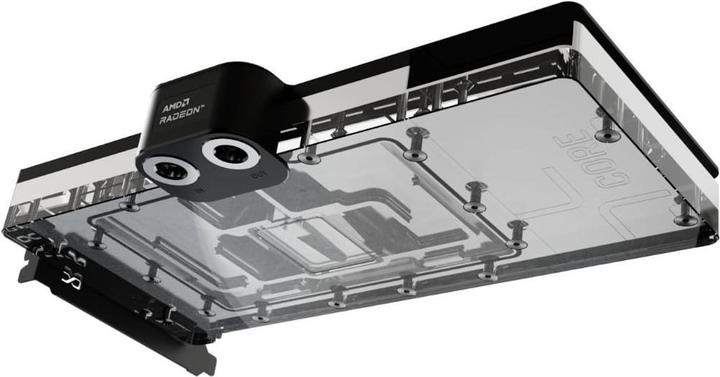

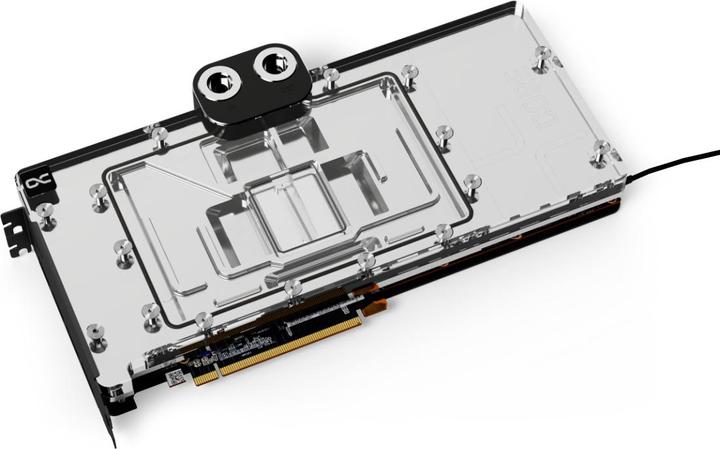

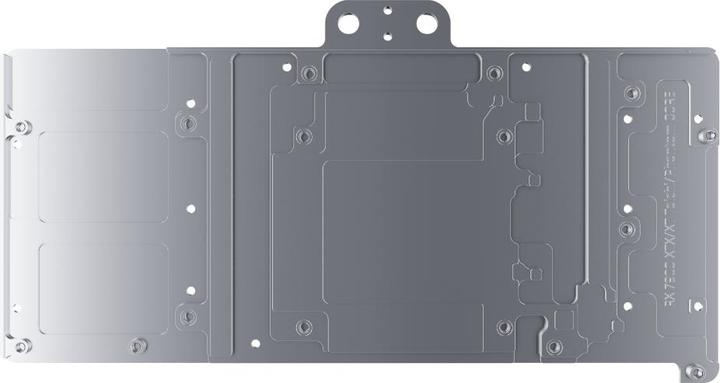

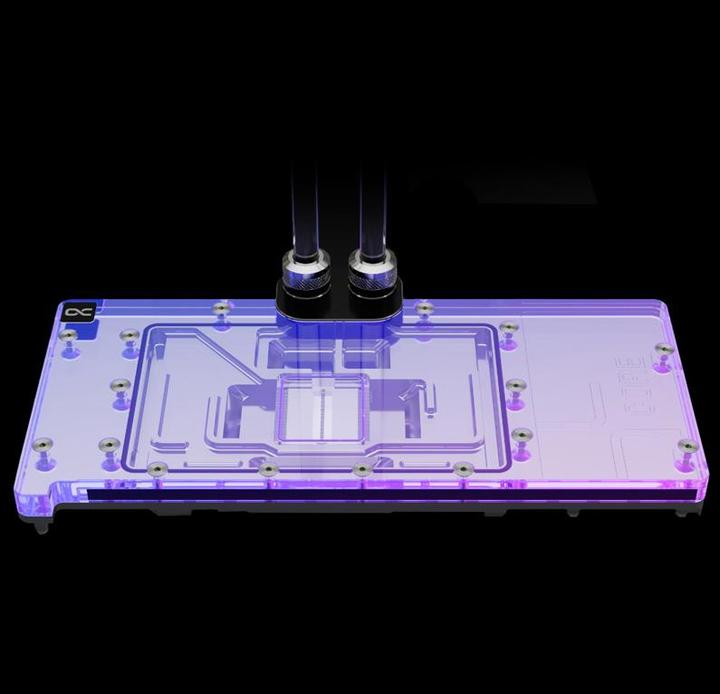

The core product series from Alphacool is characterized by high quality, outstanding performance, and a uniform, functional design language. The core of this cooler is the copper cooler, which is milled from a single piece of copper along with the end terminal. The fine finish, combined with the hard and resistant chrome plating of the entire copper radiator, meets the highest quality standards. The two integrated G1/4" brass threads, left in chrome, visually stand out from the terminal and are key elements of the new design language evident in all products of the Core series.

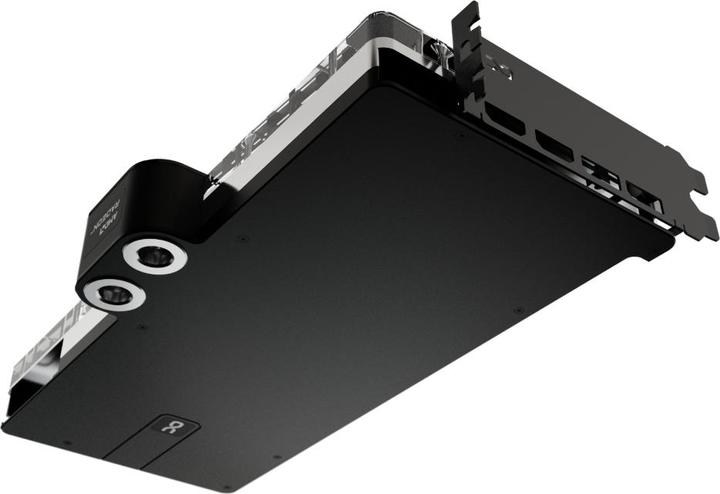

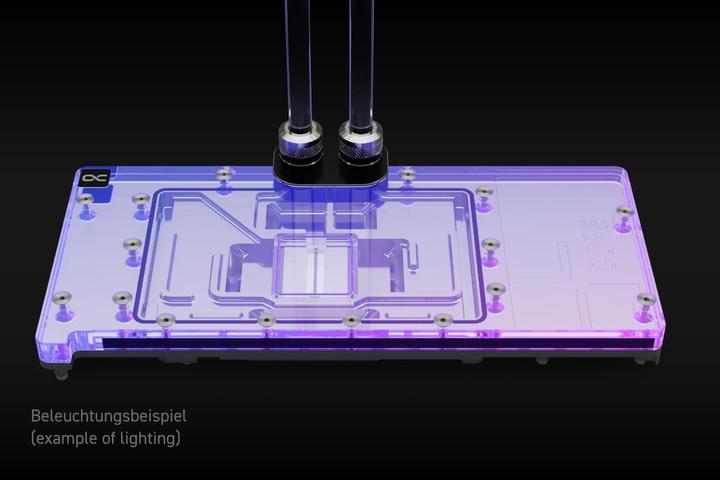

The aluminum backplate, adapted to the design, forms a unit with the terminal and presents a clear and homogeneous appearance on the back of the radiator. The lighting consists of digitally addressable RGB LEDs that illuminate the entire cooler evenly. The technical development is reflected in the water supply to the nozzle plate and the optimization of the jet plate itself, which was completely redesigned based on numerous simulations and practical tests in cooperation with board partners.

The fin thickness and distances have been adjusted, the cooling surface has been enlarged, and the water flow to the core components with the greatest heat output has been optimized. The enclosed special soft heat-conducting pads with up to 7 W/mK adapt perfectly to even the smallest tolerances.

Technical data:

• Radiator dimensions (L x W x H): 276 x 143.90 x 31.93 mm
• Radiator base material: chrome-plated copper
• Radiator top material: acrylic
• Connections: 4 x G1/4"
• Radiator base thickness: 11.3 mm
• Radiator fin thickness: 0.4 mm
• Radiator spacing: 0.4 mm
• Backplate dimensions (L x W x H): 276 x 120.90 x 5 mm
• Material: aluminum
• Color: black.
