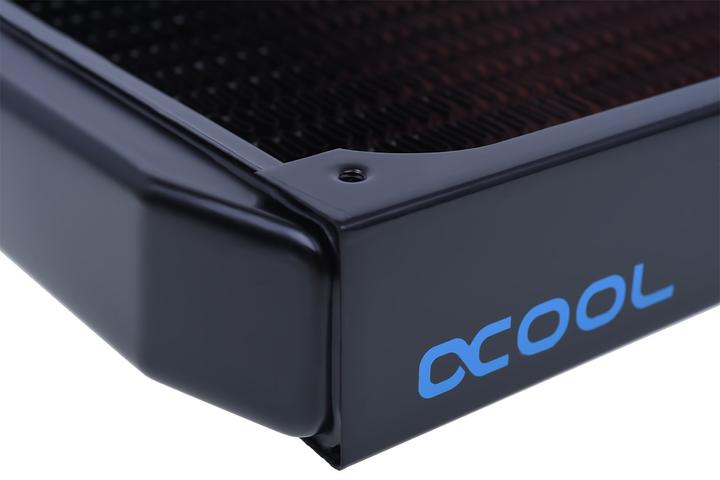

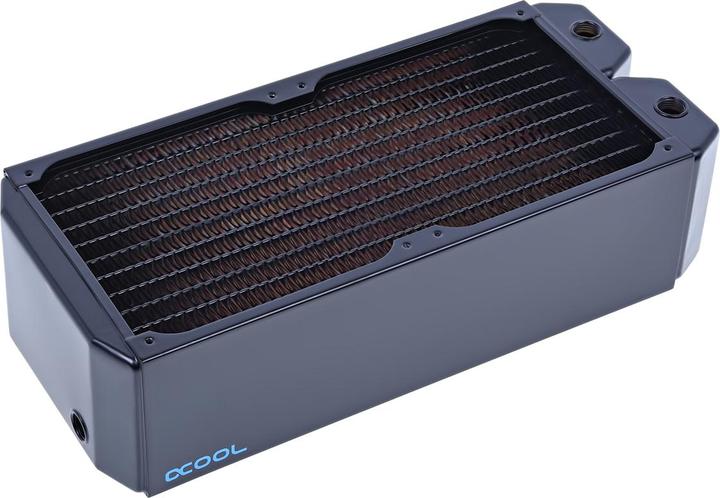

The new NexXxoS Monsta series from Alphacool is truly unique. This new generation of radiators offers a significantly larger cooling surface with a thickness of over 80 mm compared to previous models, resulting in a noticeable improvement in cooling performance. The series ranks among the best radiators in all areas and sizes. Its simple black design makes it visually compatible with any system.

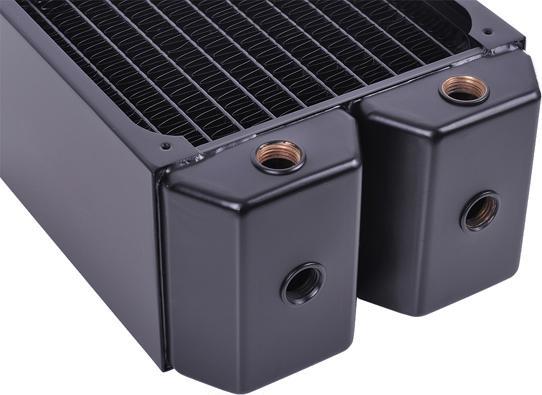

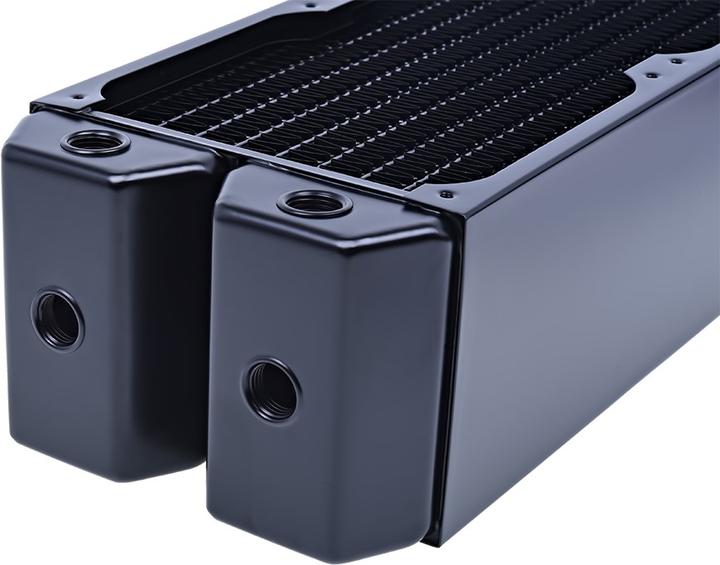

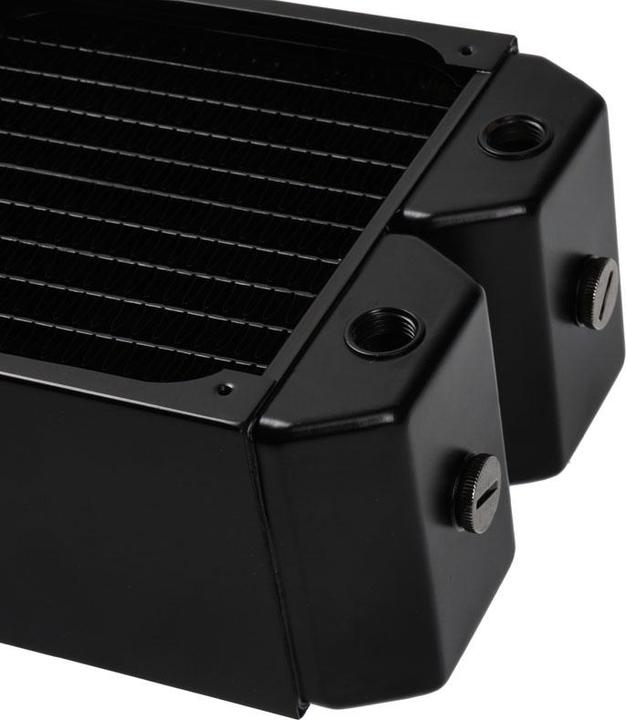

The NexXxoS Monsta radiator is made from copper. It is rightly called a "Full Copper" radiator, as not only the fins and channels are made of copper, but also the inlet chambers. Each inlet chamber features three inlets and outlets, allowing for flexible connections to custom water cooling systems. This reduces the need for bends, enhancing flow and thus improving cooling performance. In addition to the six connections, there is a seventh G1/4" thread, which serves for venting but can also be used for filling.

This massive radiator, which boasts a thickness of 86 mm and a length of 324 mm, has an incredibly large cooling surface. The fin spacing has been optimized to achieve effective cooling even with slow fans. However, the higher the fan speed, the better the cooling performance compared to thinner competitors. For instance, the cooling performance with a fan running at 1200 RPM is roughly equivalent to that of a 60 mm radiator with two fans.

Technical details:

• Dimensions: 324 x 86 x 144 mm (W x H x D)
• Material: Copper, Brass, Steel
• Color: Black
• Weight: 2.02 kg
• Connections: 6x G1/4 inch
• Fan compatibility: 2x 140 mm

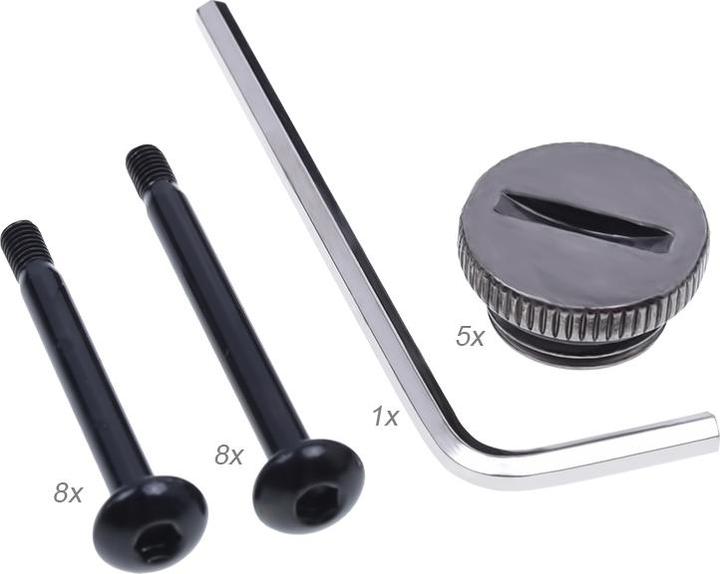

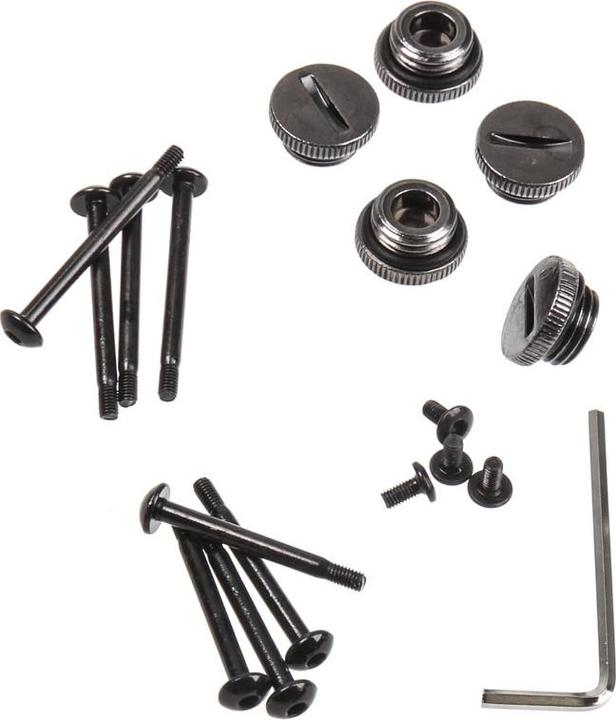

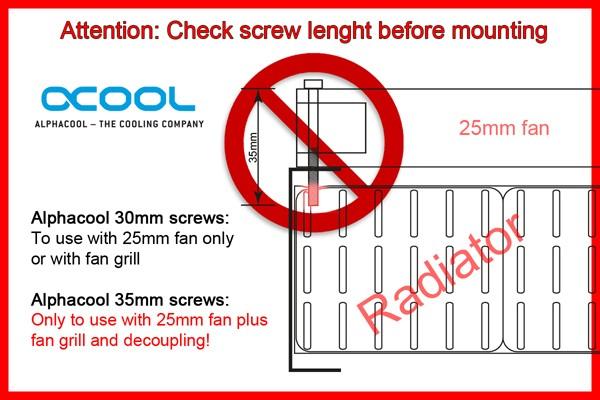

• Fan/radiator mounting: 8x M3x30mm, 8x M3x35mm.
