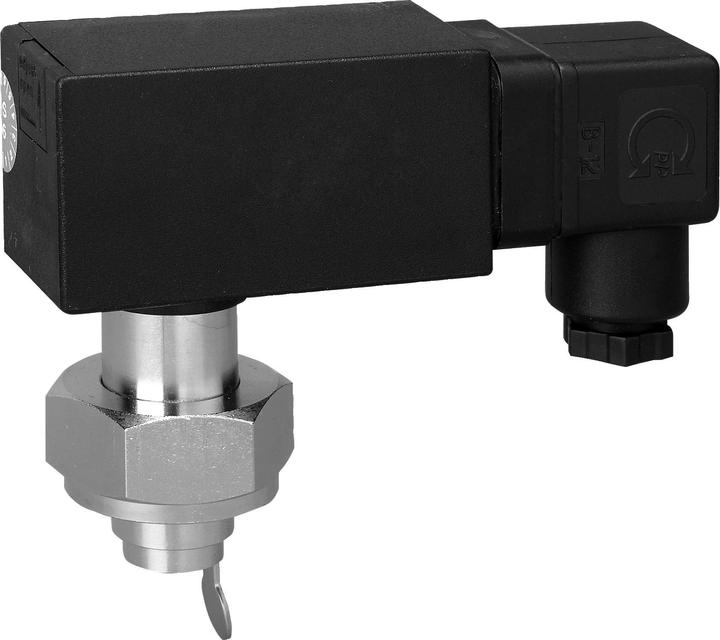

Alre-it flow monitor JSW-3/4

Manufacturer: Alre-it
Designation: Flow monitor for 3/4" mechanical installation
Type: JSW-3/4
Material of process connection: Brass
Material of pennant: Stainless steel
Design of sensor: Lug
Suitable for medium: Liquids
Voltage type: AC
Max. voltage of contacts: 230 V
Voltage of contacts: 230 V
Max. contact load: 5 A
Protection class (IP): IP65
Explosion-proof: No

The Alre-it flow monitor JSW-3/4 is designed for monitoring small and medium, non-aggressive liquid quantities in pipelines with a diameter of 3/4". The unit does not require a supply voltage.

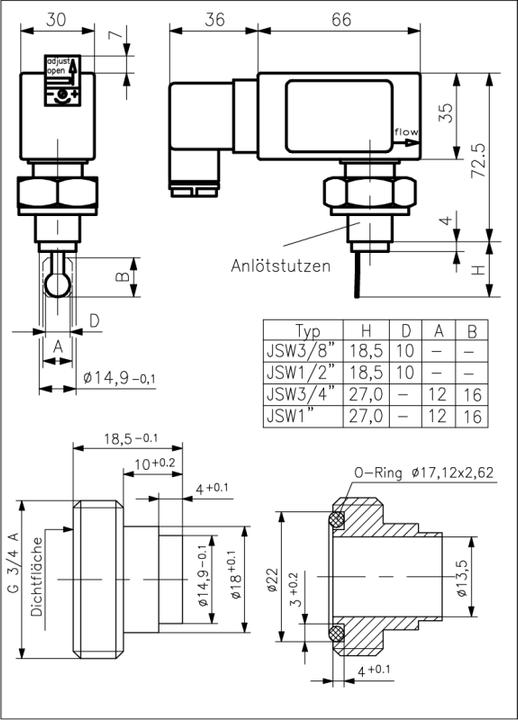

Installation: Vertical in a horizontal pipeline. Calming distance should be at least 5 times the pipe diameter upstream and downstream of the paddle. Mounting/fastening is done by means of a union nut G 3/8 on a soldering socket (for soldering into a standard copper T-piece with outlet 1/2) or T-piece.

Not tested for drinking water.
Switching point falling: 7.0 to 9.5 l/min
Switching point rising: 9.0 to 11.0 l/min
Switching differential: 2.0 l/min
Accuracy: +/- 15% of the adjusted setpoint (switching values only apply when the flow monitor is installed in our T-piece. The switching values increase when using copper T-pieces).
EAN: 4050528044785.
