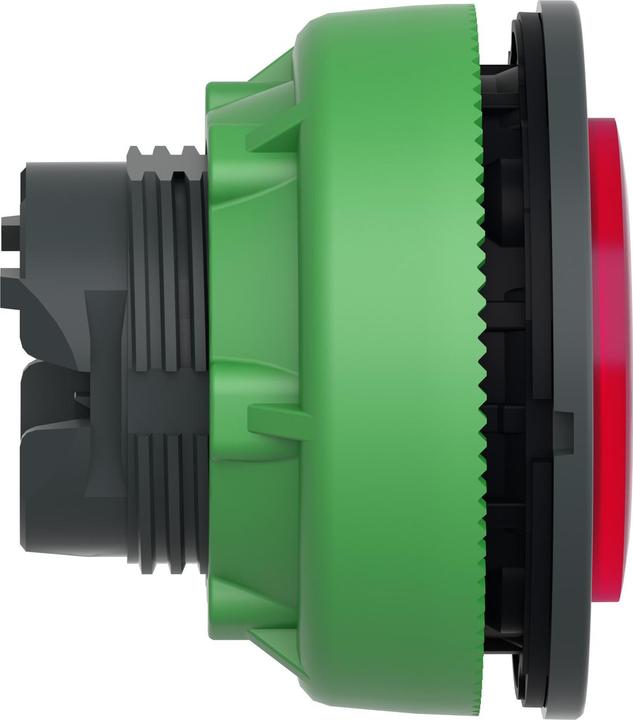

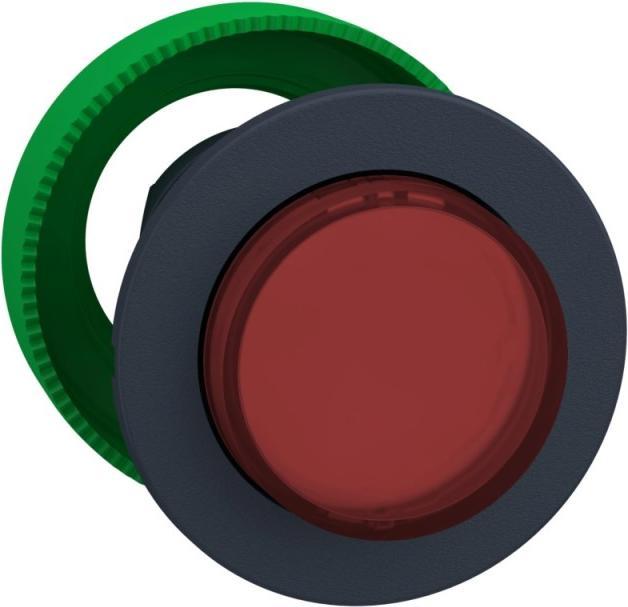

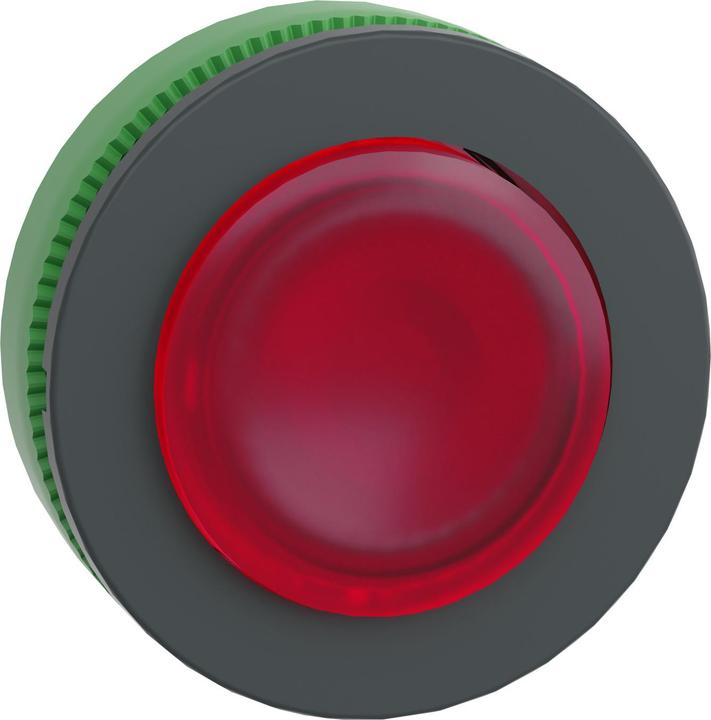

APC Front element illuminated pushbutton, ø30mm, without detent, protruding pushbutton, red, raised
Price in EUR including VAT
Free shipping starting at 30,–
Schneider Electric Front Element ZB5FW143
Manufacturer: Schneider Electric
Designation: Front element ZB5F push button, round 30.5mm
Type: ZB5FW143
Button color: red
Number of command positions: 1
Lens shape: round
Hole diameter: 30.5 mm
Button shape: flat
Suitable for lighting: yes
With protective cover: yes
Labeled: no
Latch switching function: no
Momentary: yes
With front ring: yes
Material of front ring: plastic
Front ring color: black
Protection class (IP), front side: IP66
Protection class (NEMA), front side: 4X
Schneider Electric Front Element ZB5FW143: additional details
The Harmony XB5F/ZB5F series made of plastic offers a wide range of 30mm complete devices such as push buttons, indicator lights, and selector switches, including emergency stop buttons. Additionally, due to the modular design of the devices, all components can also be purchased as individual elements and optionally for 22mm installation size. Due to their quality, flexibility, and extreme robustness (protection classes up to IP69K), these devices are ideal for most applications in industry and buildings. This illuminated push button in red is compatible with a universal LED with various supply voltages. The installation of this product takes place in a 30mm hole. Due to the numerous existing product standards and certifications, it is suitable for international use. Thanks to the Green Premium environmental label, you can obtain detailed information about material contents, environmental impacts, and circular economy, which support your sustainability goals.
Colour | Red |
Width | 37 mm |
Diameter | 30.50 mm |
Item number | 31865041 |
Manufacturer | APC |
Category | Buttons + Switches |
Manufacturer no. | ZB5FW143 |
Release date | 13.10.2022 |
Colour | Red |
Exact colour description | Red projecting, unlabelled |
Material group | Plastic |
Material | Dark grey plastic |
LED colour | Red |
Protection type (IP code) | IP69K |
Country of origin | France |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | Better World Verification=Green Premium, Colour of the switch=Red, Front element Illuminated push-button, Housing material=plastic, Increased, Lighting, o.detent, ø30mm, Protection class=IP66 IP67 IP69 IP69K, Push-button protruding, Red, Size of cut-out (rectangular)=-888, Suitable for=Harmony XB5, Switching function = spring return from top/bottom |
Length | 32 mm |
Width | 37 mm |
Height | 37 mm |
Diameter | 30.50 mm |
