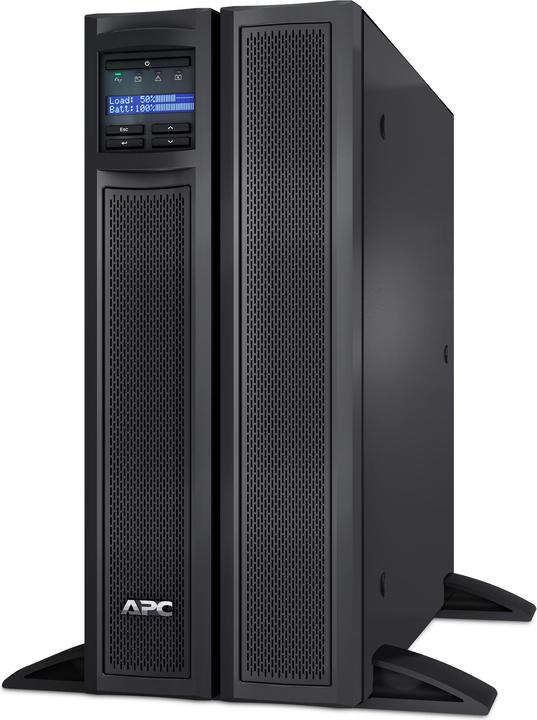

APC Usv Smx2200hv, 2200va/1980w
2200 VA, 1980 W, Line-interactive UPSMore than 10 pieces in stock at supplier
Product details
Line-interactive UPS, 2200 VA / 1980 W. Continues to deliver power during a power outage. Up to 1980 watts output power. Surge protection up to 645 Joules. Connections: 8x C13, 2x C19, 1x C20 input. Management: USB, serial (RS-232), SmartSlot. The APC Smart-UPS series protects your critical data with reliable, uninterruptible power supply. The 19-inch housing can also be installed in a rack. The device offers a capacity of 2200 VA with a maximum output power of 1980 watts. During a power outage, the device ensures independent power supply for 10 to 25 minutes (at 100%/50% load). Intuitive operation, easy management. Its LC display always shows the most important parameters such as operating mode and efficiency, voltage, frequency, and energy consumption. A clear menu ensures intuitive operation of all device functions. For management via direct connection, a USB and a serial RS-232 interface are available. Low maintenance. The sealed lead-acid battery with gelled electrolyte is completely maintenance-free. The UPS calculates the expected battery life and detects premature aging through regular battery tests. The charging voltage is adjusted to the temperature of the battery, allowing for particularly gentle charging, which positively affects the lifespan. High efficiency. A high efficiency of typically over 90% helps to keep power consumption and cooling requirements low, thereby benefiting both the environment and your budget.
Model | 19" rack |
Scope of application | Network cabinet, Server room |
Plug type | C13, C19, IEC Jumpers |
Operating time at full load | 9.80 min |
Documents | Note.pdf |
Item number | 5808850 |
Manufacturer | APC |
Category | UPS |
Manufacturer no. | SMX2200HV |
Release date | 8.7.2013 |
UPS type | Line-interactive UPS |
Power output | 1980 W |
Output power capacity | 2200 VA |
Model | 19" rack |
Rack height units | 4 U |
shaft type | Sine wave |
UPS protection functions | Overvoltage protection |
Scope of application | Network cabinet, Server room |
Plug type | C13, C19, IEC Jumpers |
USB ports | USB-A |
Input voltage | 140 - 280 V |
Output frequency | 50 - 60 Hz |
overvoltage protection | 645 J |
Efficiency full load | 98.10% |
Maximum operating temperature | 40 °C |
Operating temperature | 0 - 40 °C |
Operating humidity | 0% - 95% |
Max. noise level | 55 dB |
Battery category | Industry battery |
Battery | Rechargeable battery |
Battery type | Lead–acid battery |
Battery size | Device specific |
Number of cells | 1x |
Battery weight per cell | 22300 g |
Charging time | 3 h |
Operating time at full load | 9.80 min |
Operating time at half load | 25.30 min |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂ emissions | 53,87 kg |
Climate contribution | EUR 1,34 |
Scope of delivery | CD with software documentation CD rack assembly instructions, RS-232, USB cable |
Items per sales unit | 1x |
Height | 432 mm |
Weight | 38.56 kg |
Width | 178 mm |
Length | 483 mm |
Product Safety |
Length | 64 cm |
Width | 63 cm |
Height | 35 cm |
Weight | 45 kg |
