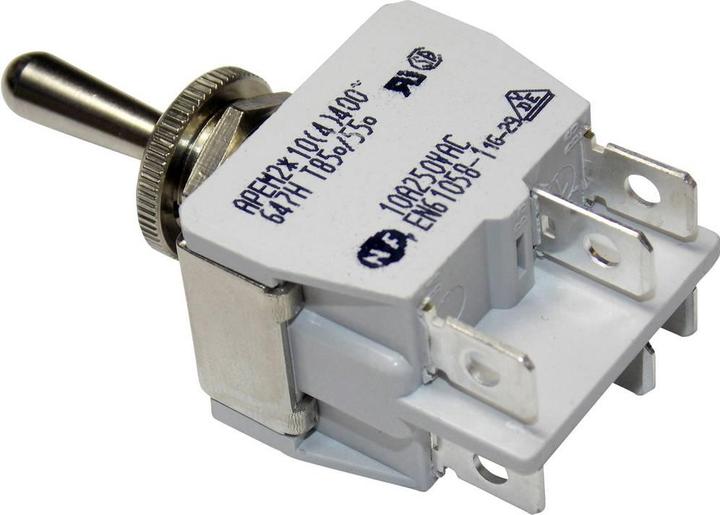

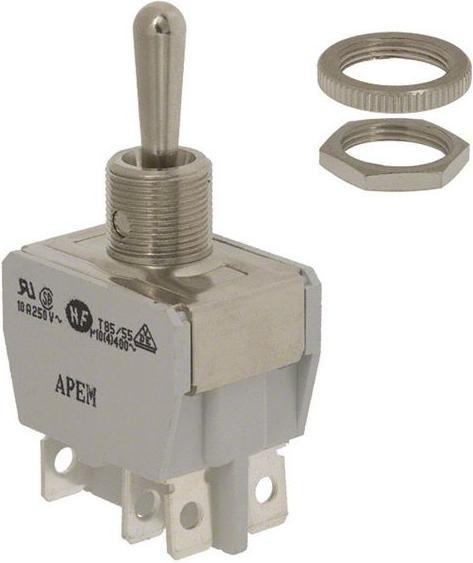

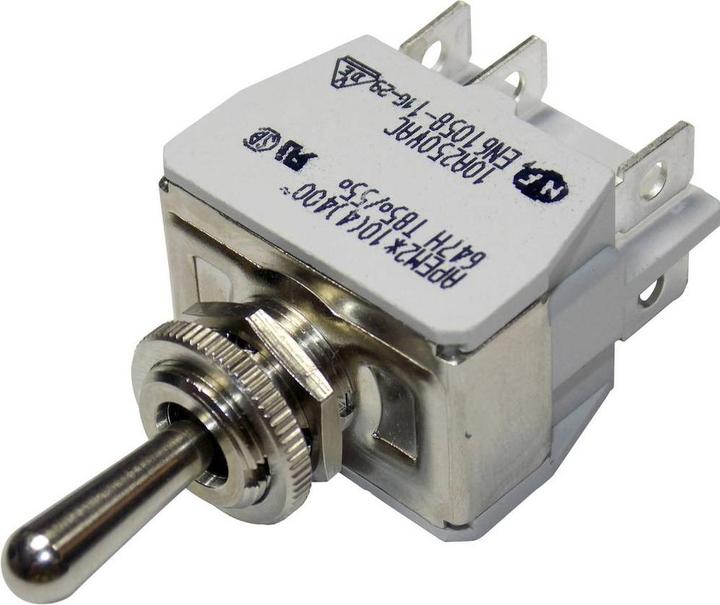

APEM switch toggle DP ON/OFF/ON 10A FASTON
Price in EUR including VAT
Delivered between Fri, 24.4. and Wed, 29.4.
More than 10 pieces in stock at supplier
More than 10 pieces in stock at supplier
Free shipping starting at 30,–
Product details
Contact arrangement: Double pole double throw switch (DPDT)
Switching sequence: On-Off-On
Rated contact current: 10 A
Mounting type: Front panel mounting
Connection type: Solder lug

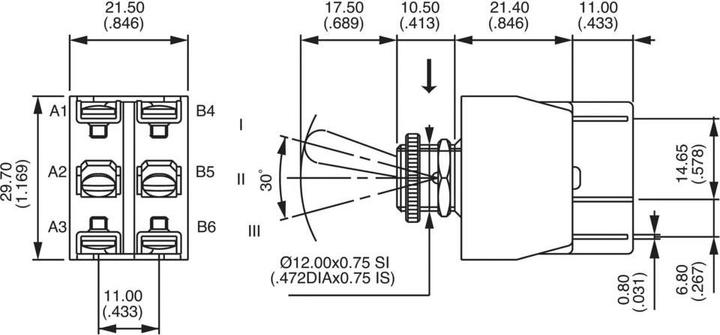

Panel cutout diameter: 12.2 mm
Actuator length: 17.5 mm
Actuator material: Nickel plated brass
Rated voltage: 400V AC
Contact resistance: 10 mΩ
Mechanical life: 10,000 electrical cycles
For preloaded switches, "On" refers to the momentary position. Toggle switches are standard with a 15A metal lever. Available in single and double pole configurations with a choice of flat insulated or nickel plated brass levers. Features a 12 mm mounting socket and 250 (1/4") terminals. Brass actuator and melamine/polyester housing with silver/nickel alloy contacts.
Colour | Silver |
Switch + button type | Rocker switch |
Width | 30 mm |
Diameter | 12 mm |
Item number | 9954315 |
Manufacturer | APEM |
Category | Buttons + Switches |
Manufacturer no. | 647H/2 |
Release date | 22.10.2018 |
External links |
Colour | Silver |
Material group | Metal |
Material | Metal |
Switch + button type | Rocker switch |
Number of actuation levels | 3x |
Number of poles | 2x |
Nominal voltage | 250 V |
Nominal current | 10 A |
CO₂ emissions | 95,84 kg |
Climate contribution | EUR 0,77 |
Items per sales unit | 1 pcs. |
Length | 60 mm |
Width | 30 mm |
Height | 21 mm |
Diameter | 12 mm |
Product Safety |
