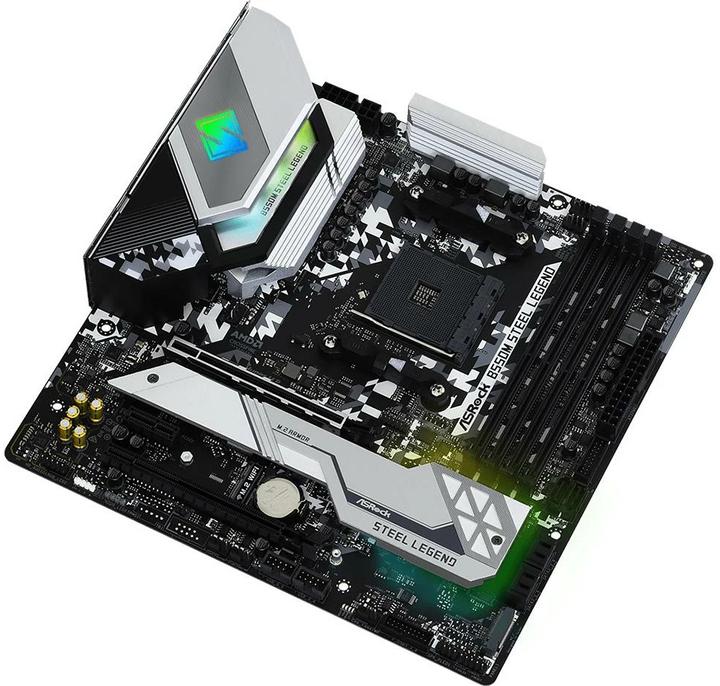

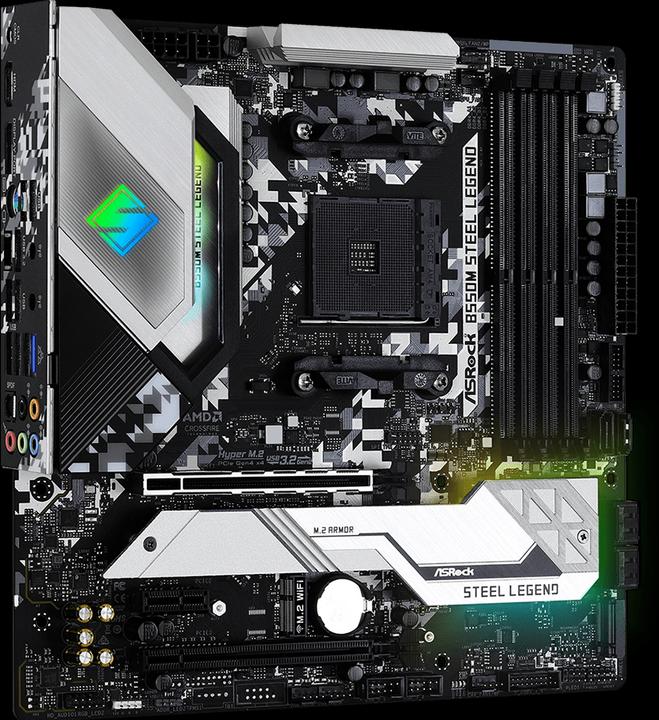

Product details
Beneath its uncompromising appearance lies a wealth of game-oriented features and excellent gameplay options. Everything revolves around providing players with a new gaming experience.
Processor family | Ryzen 3rd generation |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (6x) |
Mainboard features | Clear CMOS Button |
Item number | 13348338 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBCU0-A0UAYZ |
Release date | 10.5.2023 |
Form factor | Micro ATX (mATX) |
Socket | AM4 |
Chipset | AMD B550 |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | Ryzen 3rd generation |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4-2133, DDR4-2400, DDR4-2666, DDR4-2800, DDR4-3000, DDR4-3200 |
Max. RAM OC | 4733 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Error Correcting Code, Unbuffered |

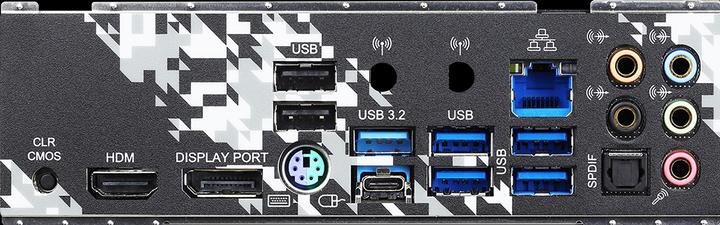

Video connections | HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Multi-GPU technology | AMD Quad-GPU CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Dragon RTL8125BG |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC1200 |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x) |
RAID configuration | 0, 1, 10 |
Internal connection options | M.2 PCI/SATA Combo (2x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (2x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 3.2 Gen 1 (4x) |
Power connectors | 20+8 pin ATX, 24-pin EATX |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 244 mm |
Height | 70 mm |
Weight | 465 g |
Length | 31.50 cm |
Width | 7.50 cm |
Height | 29 cm |
Weight | 1.54 kg |
Product Safety |
Specifications may include unverified machine translations.
