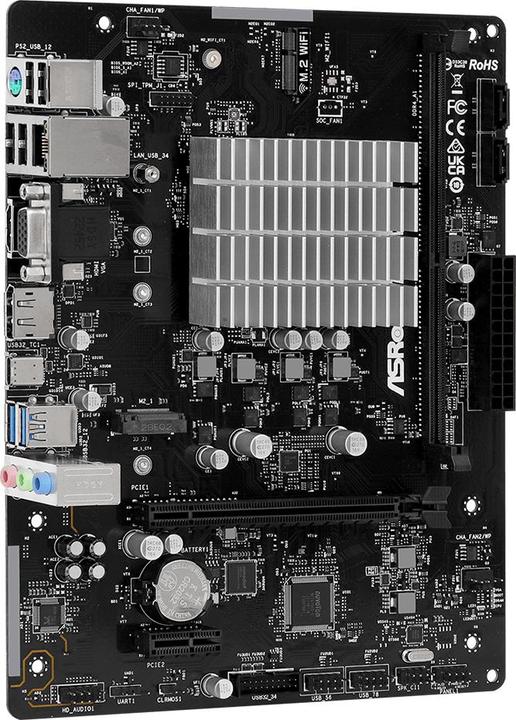

The Intel N100 processor, based on the Gracemont CPU microarchitecture with the Intel 7 process, features 4 E-cores with a turbo frequency of 3.4 GHz and Intel UHD graphics with 24 EUs. It is suitable for entry-level users and is fully equipped with all three types of the most commonly used ports: D-Sub, DisplayPort, and HDMI. The CPU is covered by a specially designed heatsink that allows for improved heat dissipation. With its extremely quiet, fanless design, this ASRock motherboard provides the quietest computer environment. It supports 10-bit HEVC and VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a maximum resolution of up to 4K x 2K at 60 Hz. USB 3.2 Gen1 Type-C offers a data transfer rate of up to 5 Gbit/s and a reversible next-generation USB design for the back of the computer case. In addition to the integrated LAN port, users can also opt for wireless connections via the M.2 slot (Key E).
Processor family | N-Series |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 1 x |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 PCIe (1x), S-ATA III (2x) |
Mainboard features | Front panel audio connector |
Item number | 35669253 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer no. | 90-MXBK80-A0UAYZ |
Release date | 17.5.2023 |
Sales rank in Category Motherboards | 40 of 890 |
Form factor | Micro ATX (mATX) |
Socket | BGA 1264 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI AMI |
Processor family | N-Series |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 1 x |
Max. memory (RAM) | 32 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 3200 MHz |
Supported memory speed | 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek 8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (1x), Jack 3.5mm Line In (1x), Microphone |
Internal connection options | 24-pin ATX power connector (1x), 8-pin ATX 12V (1x), M.2 PCIe (1x), S-ATA III (2x) |
Expansion slot | PCI Express x1 (Gen 3) (1x) |
PCI express version (max.) | 3 |
Number of fan connector | 2 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x), USB-C 3.2 Gen 1 (1x) |
Power connectors | 24-pin ATX |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | ASRock Motherboard Utility (A-Tuning), ASRock XFast LAN, Sata Cables |
Length | 178 mm |
Width | 226 mm |
Height | 178 mm |
Weight | 800 g |
Length | 28 cm |
Width | 21 cm |
Height | 6 cm |
Weight | 640 g |
Product Safety |
How often does a product of this brand in the «Motherboards» category have a defect within the first 24 months?
Source: GalaxusHow many working days on average does it take to process a warranty claim from when it arrives at the service centre until it’s back with the customer?
Source: GalaxusHow often is a product of this brand in the «Motherboards» category returned?
Source: Galaxus
The Intel N100 is an attractive processor for home servers and NAS. And the Asrock N100M has largely matching features. However, it is not suitable for sustained high computing loads, at least not in a compact housing without a fan. The N100M is also very expensive at 130 euros and consumes a hefty 15 watts of power when idle...
