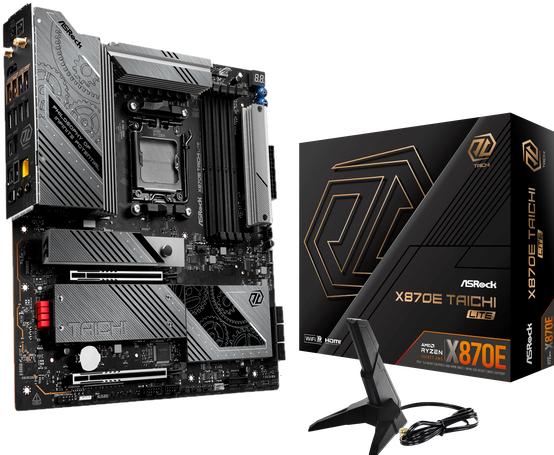

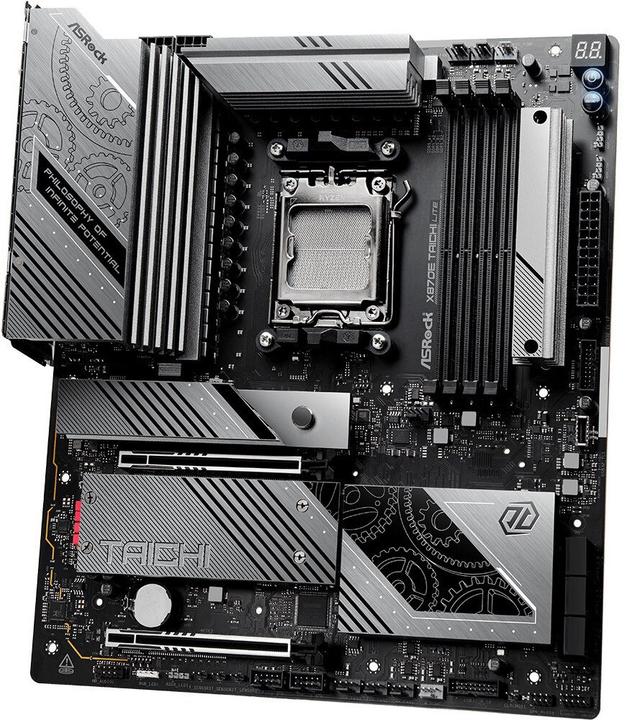

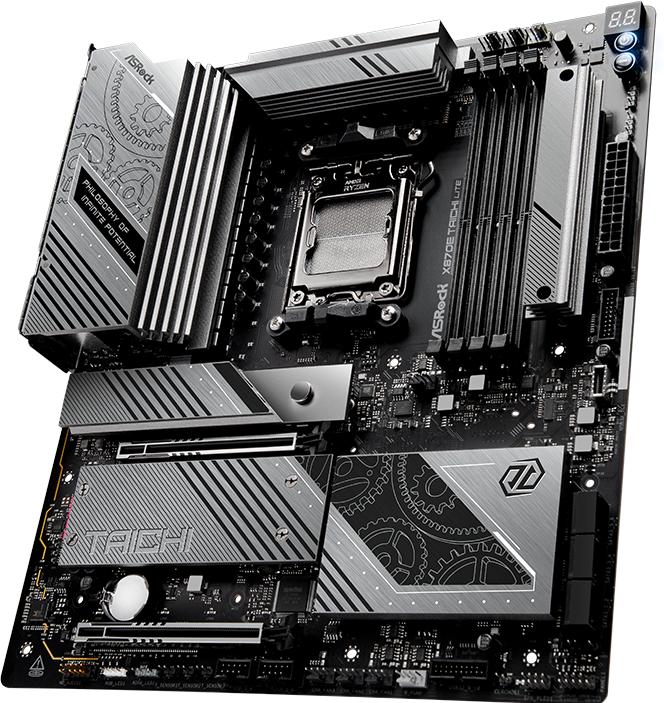

The ASRock X870E Taichi is based on the AMD X870E chipset and supports AMD processors for the AM5 socket. It features four DDR5 slots for up to 256 GB of RAM. Additional features of the ASRock X870E Taichi include a PCIe 5.0 x16 slot and a PCIe 5.0 x16 slot (x8 lanes). Furthermore, the ASRock X870E Taichi offers 8-channel audio, a 5 Gigabit LAN interface, WiFi 7, Bluetooth 5.4, six SATA3 ports, four M.2 slots, and a variety of USB interfaces.
Mainboard features | Front panel audio connector |
Wireless transmission | Bluetooth, Wi-Fi |
Number of memory modules (RAM) | 4x |
Memory type | DDR5-RAM |
Internal connections | M.2 PCIe (4x), S-ATA III (6x) |
Item number | 49690734 |
Manufacturer | AsRock |
Category | Motherboards |
Manufacturer No. | 90-MXBPA0-A0UAYZ |
Release date | 24.9.2024 |
Form factor | E-ATX |
Socket | AM5 |
Chipset | AMD X870E |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax, Wi-Fi 7 / 802.11be |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 8200 MHz |
Supported memory speed | 8000 MHz |
Memory type | DDR5-RAM |
RAM buffer | Unbuffered |
Video connection version | HDMI 2.1 |
Multi-GPU technology | AMD CrossFire |
Network connections | RJ45 5 Gigabit Ethernet (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Dragon RTL8125BG |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC4082 |
Audio channel | 5.1 channels |
RAID configuration | 0, 1 |
Internal connections | M.2 PCIe (4x), S-ATA III (6x) |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (3x) |
Power connectors | 24-pin ATX, 2x 8-pin ATX 12V |
Country of origin | China |
CO₂ emissions | 4329,41 kg |
Climate contribution | EUR 19,10 |

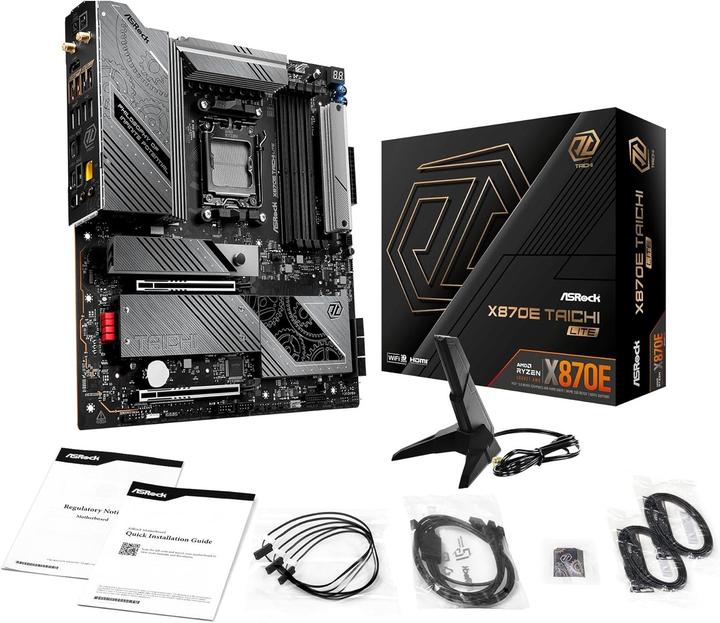

Scope of delivery | SATA cable (4x) |
Length | 244 mm |
Width | 305 mm |
Product Safety |
Length | 37.20 cm |
Width | 32.50 cm |
Height | 8.50 cm |
Weight | 2.82 kg |
