Product details

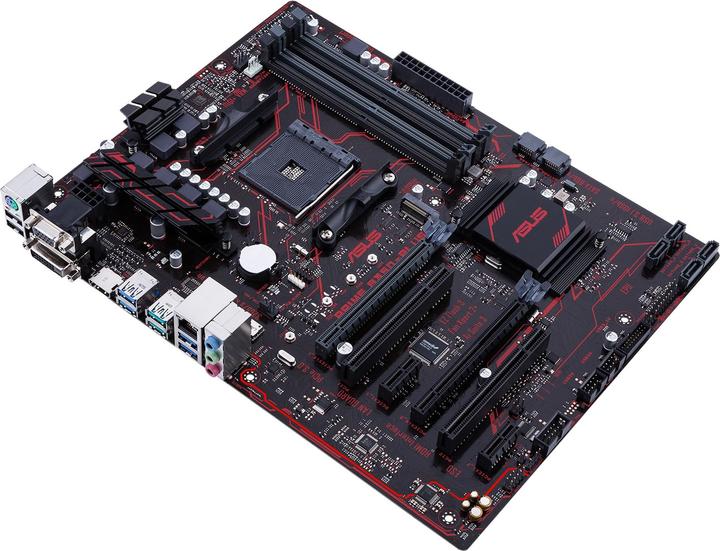

The ASUS PRIME B350-PLUS is a powerful motherboard designed for use with AMD processors. It supports the latest DDR4 SDRAM technology and offers a variety of speeds to meet the demands of modern applications. With an AM4 processor socket, it is compatible with a wide range of AMD processors, including the Ryzen and A-Series families. The motherboard is equipped with an AMD B350 chipset, providing stable performance and enhanced features. The integrated Gigabit Ethernet interface ensures fast network connections, while support for CrossFireX enables improved graphics performance. The construction of the motherboard guarantees high reliability and durability, making it an ideal choice for PC enthusiasts and gamers looking to build a robust and flexible system.
- Supports up to 64 GB of DDR4 RAM with speeds up to 3200 MHz
- Integrated Gigabit Ethernet interface for fast network connections
- Compatible with AMD Ryzen and A-Series processors
- Allows multi-GPU configurations with CrossFireX technology
- Optimized cooling through Fan Xpert 2+ for intelligent fan control.
Processor family | A-Series, Ryzen 1st Gen, Ryzen 2nd Gen |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (6x) |
Mainboard features | Front panel audio connector |
Item number | 6167782 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB0TG0-M0EAY0 |
Release date | 2.3.2017 |
External links |
Form factor | ATX |
Socket | AM4 |
Chipset | AMD B350 |
Mainboard features | Front panel audio connector |
Operating system compatibility | Windows 10 Home, Windows 10 Pro |
BIOS type | UEFI AMI |
Processor family | A-Series, Ryzen 1st Gen, Ryzen 2nd Gen |
Memory form factor | DIMM |
Number of pins | 288 x |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 64 GB |
Memory chip | DDR4-2133, DDR4-2400, DDR4-2666 |
Supported memory speed | 2133 MHz, 2400 MHz, 2933 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

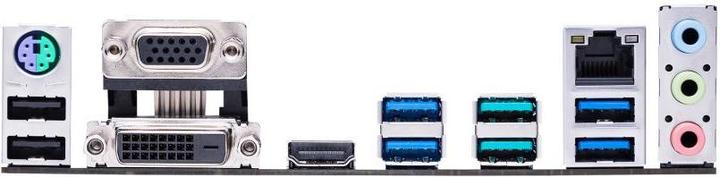

Video connections | VGA (1x) |
Video connection version | HDMI 1.4 |
Multi-GPU technology | AMD CrossfireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek 8111H |
Max. port speed | 1 Gbit/s |
Chip | Realtek ALC887-VD2 |
Audio channel | 8.1 Channel |
Audio Connections | Headphone output (1x) |
Internal connection options | S-ATA III (6x) |
Expansion slot | PCI Express x1 (2x), PCI Express x16 (2x) |
Power connectors | 24-pin ATX, 8-pin ATX 12V |
CO₂-Emission | |
Climate contribution |

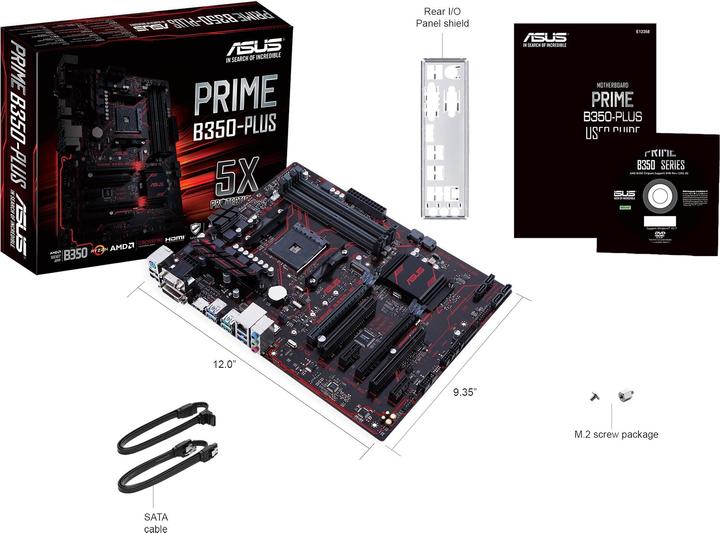

Scope of delivery | M.2 x4 Bracket, S-ATA cable, User manual |
Length | 305 mm |
Width | 244 mm |
Height | 237 mm |
Length | 33.50 cm |
Width | 27 cm |
Height | 5.60 cm |
Weight | 1.12 kg |
Product Safety |
