Product details

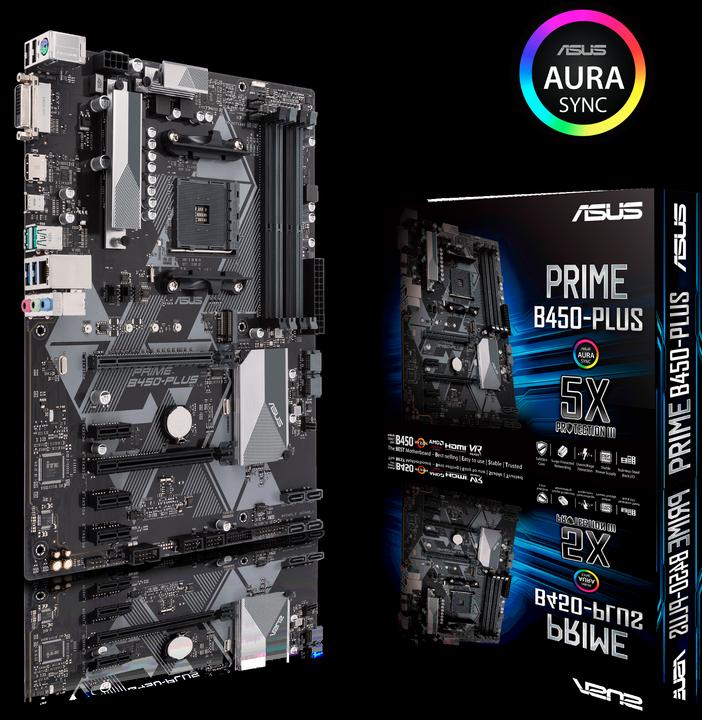

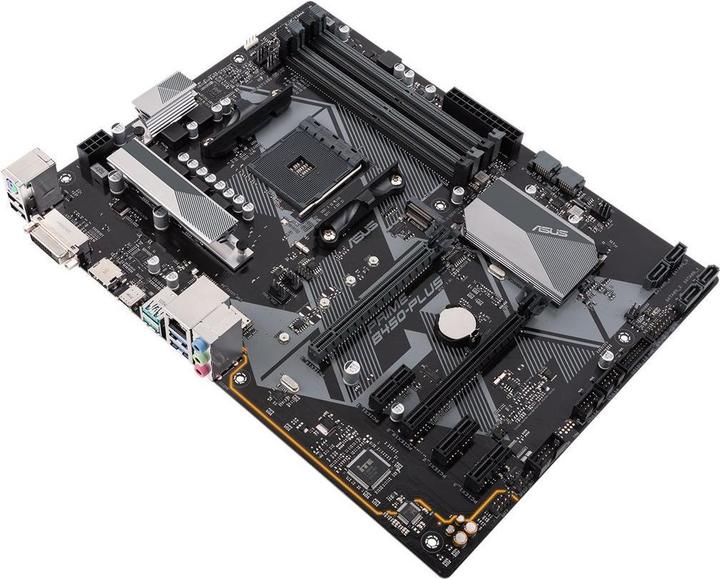

The Asus Prime B450 series mainboards provide a solid foundation for your first home-made system while providing enough options to grow with your needs. Asus has combined all the good features included
in AMD Ryzen processors with Asus' key technology and basic design to help you take advantage of industry-leading technologies - including automated system optimization, comprehensive cooling control, and high-quality onboard sound. With an Asus Prime B450 series mainboard, PC assembly is easy - a smart choice. The Prime-B450 series has the most comprehensive cooling control ever, configurable via the Asus Fan Xpert software or the UEFI BIOS. With a range of trace layout optimizations to improve memory stability, the Prime-B450 Series provides a powerful foundation for your system. With comprehensive support for the full range of Ryzen storage configurations - from the novice to the performance-oriented professional - the Prime-B450 Series is a versatile all-rounder suitable for working or playing. The Prime-B450 series mainboards are manufactured using the industry-leading 5X Protection III concept, which uses only the highest quality components, excellent switching design and the highest standards to ensure high quality and durability of the expensive motherboard. This means exceptional protection and maximum stability for the system - thanks to the decades of experience of the world's leading manufacturer in motherboard development.
| Processor family | Ryzen 2nd Gen |
| Memory type | DDR4-RAM |
| Internal connection options | S-ATA III (6x) |
| Peripheral connections | PS/2 Combo, USB 2.0 Type-A (2x), USB 3.0 Type-A (2x), USB 3.1 (2x), USB Type-C (1x) |
| Item number | 9346437 |
| Manufacturer | |
| Category | |
| Manufacturer no. | 90MB0YN0-M0EAY0 |
| Release date | 3/9/2023 |
| Sales rank in Category Motherboards | |
| External links |
| Form factor | ATX |
| Processor socket | AM4 |
| Chipset | AMD B450 |
| Mainboard features | Error Correcting Code |
| Operating system compatibility | Windows 10, Windows 10 Home, Windows 10 Pro |
| Peripheral connections | PS/2 Combo, USB 2.0 Type-A (2x), USB 3.0 Type-A (2x), USB 3.1 (2x), USB Type-C (1x) |
| BIOS type | UEFI AMI |
| Processor family | Ryzen 2nd Gen |
| Memory form factor | DIMM |
| Number of pins | 288 x |
| Number of memory modules (RAM) | 4 x |
| Max. memory (RAM) | 64 GB |
| Memory chip | DDR4-2933 |
| Max. RAM OC | 3200 MHz |
| Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 3000 MHz, 3200 MHz |
| Memory type | DDR4-RAM |
| RAM buffer | Unbuffered |
| Channel architecture | 2 |
| Video connections | HDMI (1x) |
| Video connection version | HDMI 2.0b |
| Multi-GPU technology | AMD CrossfireX |
| Network connections | RJ45 (1x) |
| Ethernet controller brand | Realtek |
| Ethernet controller | Realtek RTL8111H |
| Max. port speed | 1 Gbit/s |
| Chip | Realtek ALC887 |
| Audio channel | 7.1 Channel |
| Audio Connections | Jack 3.5mm (3x) |
| Internal connection options | S-ATA III (6x) |
| Expansion slot | PCI Express x1 (3x), PCI Express x16 (2x) |
| PCI express version (max.) | 3 |
| Number of fan connector | 4 |
| Power connectors | 24-pin ATX, 8-pin ATX 12V |
| Sustainability | Sustainable products and raw materials |
| Label | SBTi |

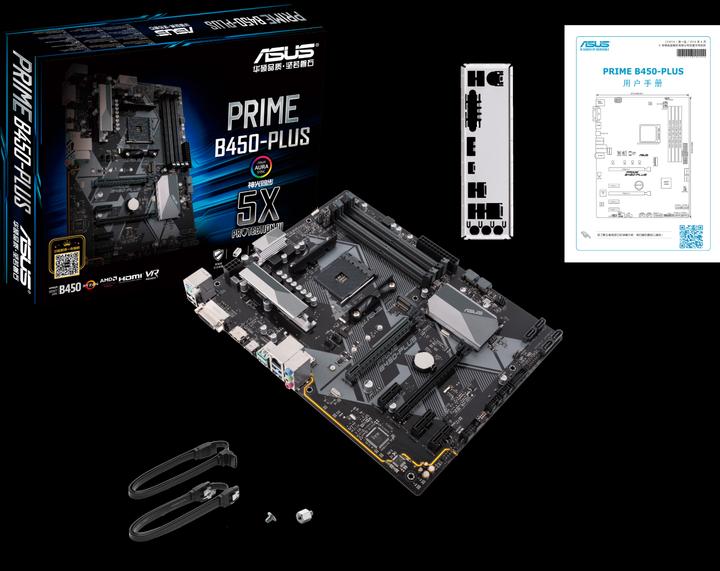

| Scope of delivery | S-ATA cable, User manual |
| Length | 234 mm |
| Width | 234 mm |
| Height | 305 mm |
| Weight | 1040 g |
| Length | 32.80 cm |
| Width | 26.80 cm |
| Height | 5 cm |
| Weight | 1.06 kg |
