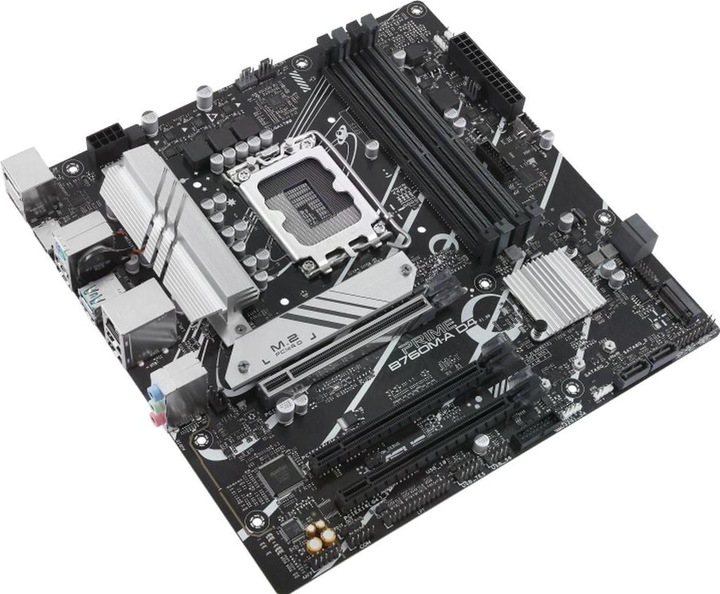

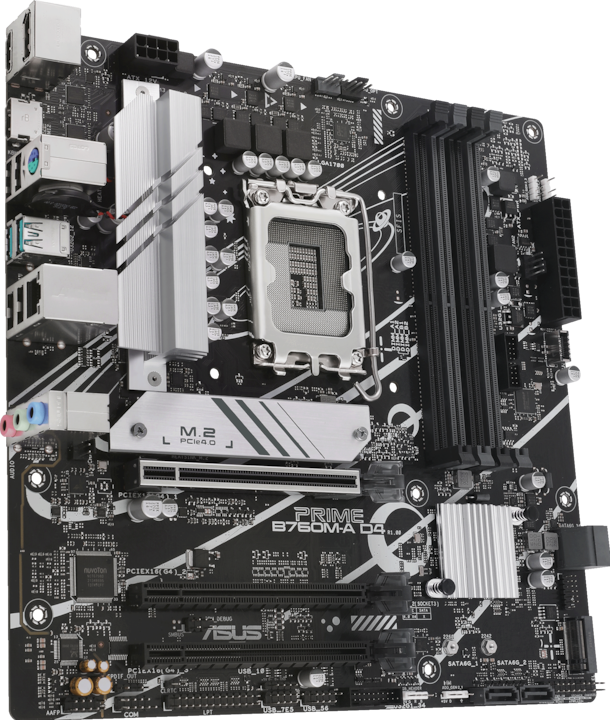

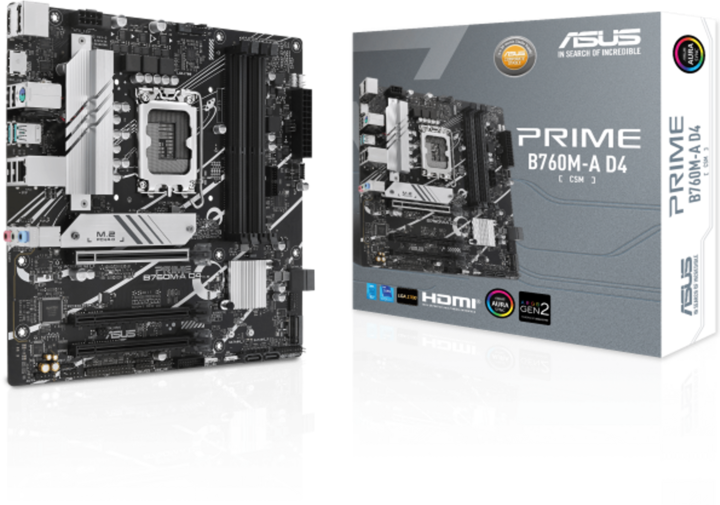

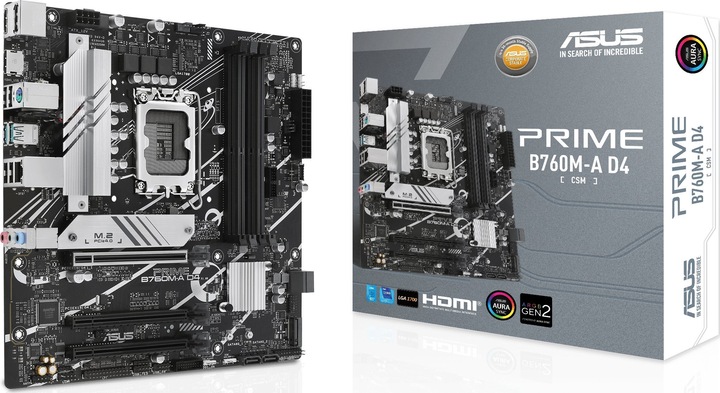

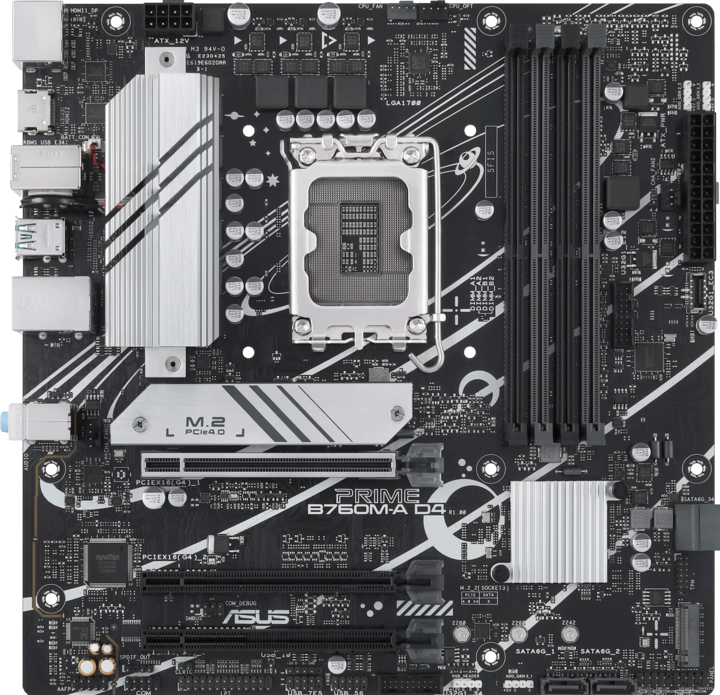

ASUS PRIME B760M-A D4-CSM
LGA 1700, Intel B760, mATX5 items in stock
Product details
B760M-A D4-CSM
The ASUS Prime series motherboards have been developed by experts to fully utilize the potential of the 13th generation Intel Core processors. With a robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME B760M-A D4-CSM offers users and PC DIY builders a range of performance optimizations through intuitive software and firmware features.
All-around Energy Efficiency
The energy-saving feature includes various settings that allow you to optimize power consumption and maximize energy savings. You can enable a CPU power limit, dim the Aura lighting, and set the fan profile to a power-saving mode. You can also switch the power plan integrated into Microsoft Windows.
Flexible Controls for Air and Liquid Cooling
The ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one cooling solutions.
Processor family | Celeron, Pentium Gold |
Memory type | DDR4-RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | S-ATA III (4x), USB 2.0 Header (4x) |
Mainboard features | Clear CMOS Button, Onboard processor, Reset button |
Item number | 24860091 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1D00-M0EAYC |
Release date | 9.3.2023 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Clear CMOS Button, Onboard processor, Reset button |
Operating system compatibility | Windows 10, Windows 11 Home |
BIOS type | UEFI AMI |
Processor family | Celeron, Pentium Gold |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5333 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz, 4000 MHz, 4400 MHz, 5000 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz, 7600 MHz, 7800 MHz, 8000 MHz, 8200 MHz, 8400 MHz, 8600 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

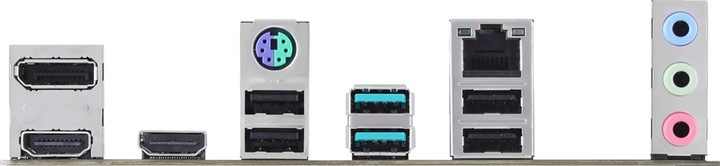

Video connections | DisplayPort (1x), HDMI (2x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller | Ethernet LAN, LAN |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Headphone output (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | S-ATA III (4x), USB 2.0 Header (4x) |
Expansion slot | PCI Express x1 (Gen 3) (1x) |
PCI express version (max.) | 2.50 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x) |
Power connectors | 20+8 pin ATX |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Cables supplied: SATA |
Length | 244 mm |
Width | 244 mm |
Weight | 1052 g |
Length | 27.90 cm |
Width | 26.40 cm |
Height | 5.70 cm |
Weight | 1.05 kg |
