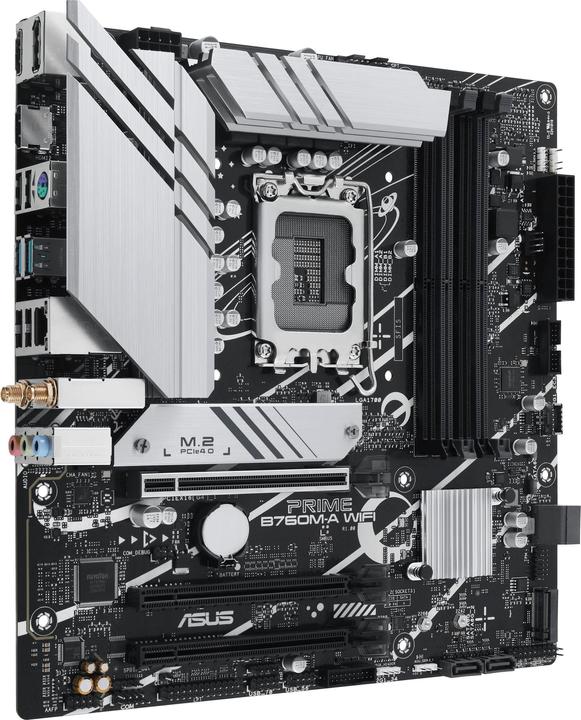

ASUS PRIME B760M-A WIFI
LGA 1700, Intel B760, mATXPrice in EUR including VAT
free shipping
The ASUS Prime series motherboards have been expertly designed to fully utilize the potential of the 13th generation Intel Core processors. With a robust power supply design, comprehensive cooling solutions, and intelligent tuning options, the PRIME B760M-A WIFI offers users and PC enthusiasts a range of performance optimizations through intuitive software and firmware features.
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Front panel audio connector, RGB header |
Item number | 25252973 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1EL0-M0EAY0 |
Release date | 2.3.2023 |
Sales rank in Category Motherboards | 43 of 888 |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Front panel audio connector, RGB header |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 7200 MHz |
Supported memory speed | 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7000 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort (1x), HDMI (2x) |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 Gigabit Ethernet (1x) |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (3x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (2x) |
Expansion slot | PCI Express x16 (3x) |
PCI express version (max.) | 4 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (3x), USB-A 3.2 Gen 2 (2x) |
Power connectors | 8-pin PCI-E |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Scope of delivery | SATA cable (1x) |
Length | 244 mm |
Width | 244 mm |
Height | 50 mm |
Weight | 886 g |
Length | 28.20 cm |
Width | 27.90 cm |
Height | 7.40 cm |
Weight | 1.46 kg |
