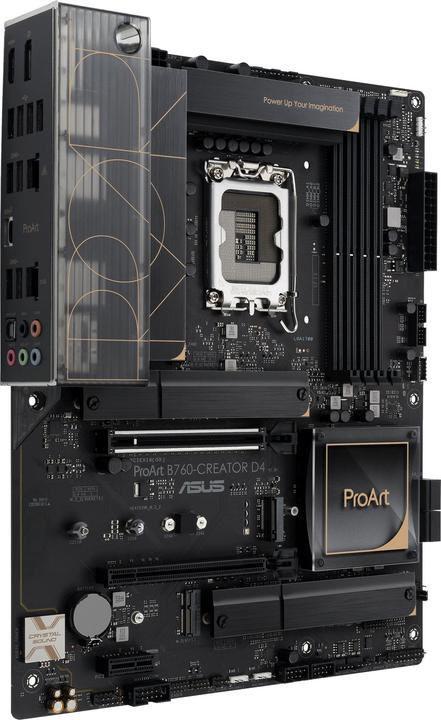

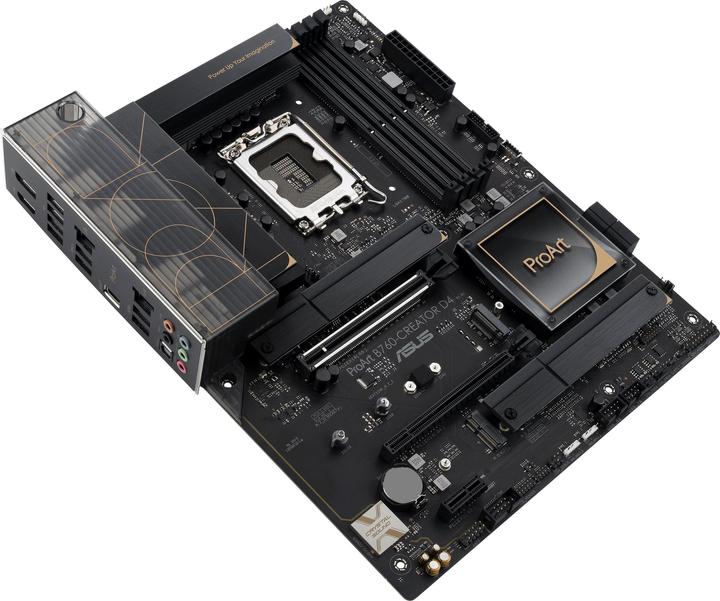

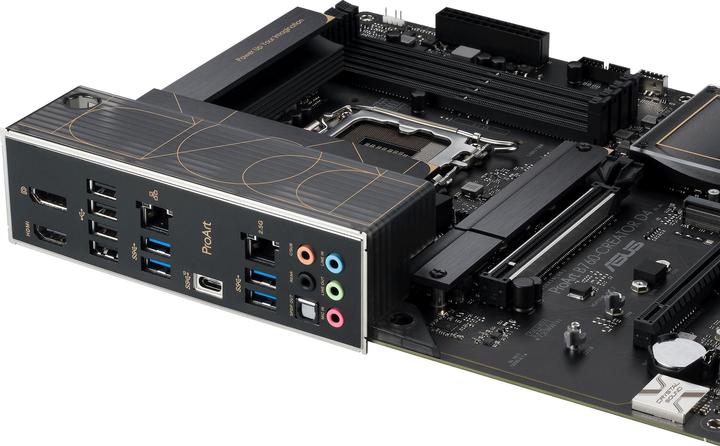

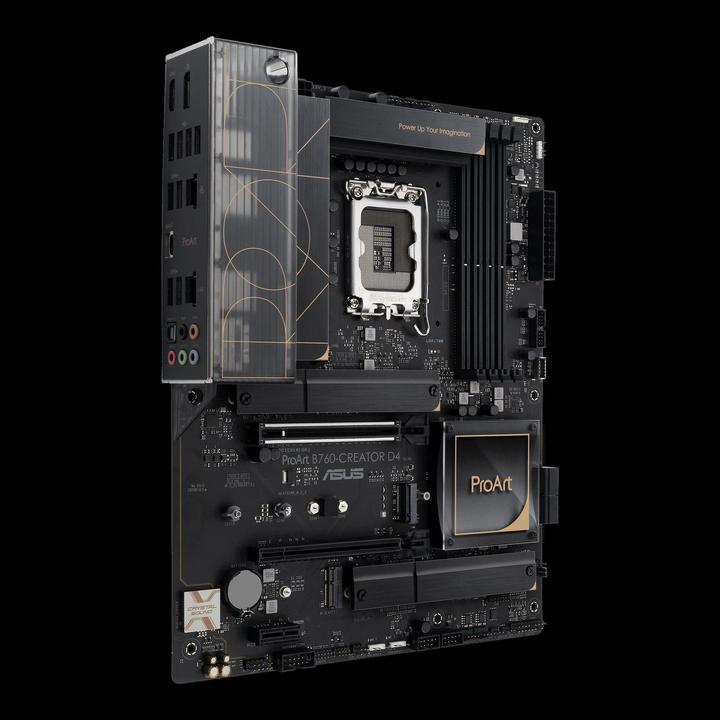

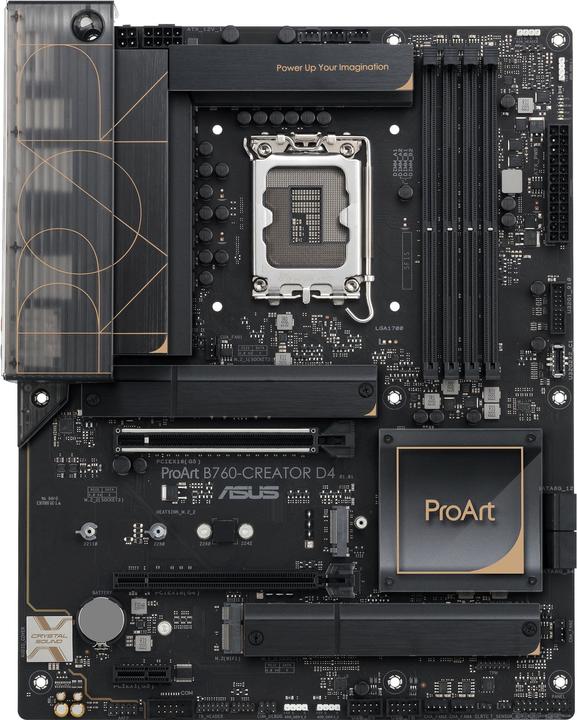

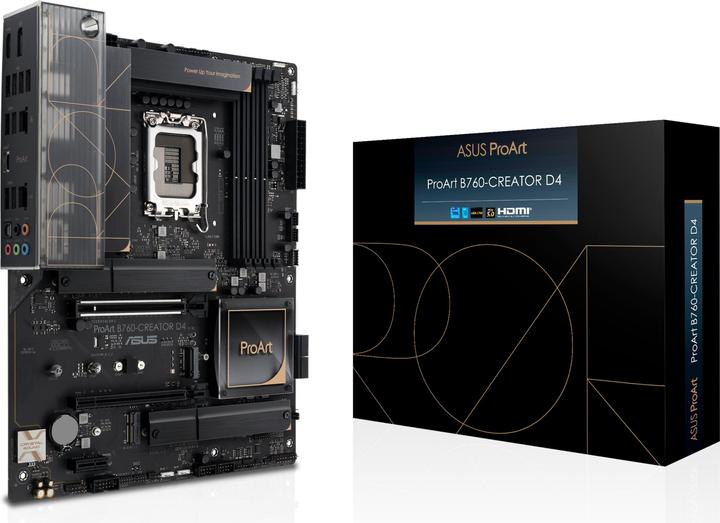

ASUS PROART B760-CREATOR D4
LGA 1700, Intel B760, ATXProduct details
The ASUS ProArt B760-Creator Intel is a high-end motherboard specifically designed for content creators. It supports the LGA 2066 socket and is equipped with the Intel X299 chipset.
The motherboard offers a variety of features and expansion options, including eight DDR4 DIMM slots that support up to 256 GB of RAM, as well as four PCIe 3.0 x16 slots for powerful graphics cards. It also includes PCIe 3.0 x4 slots and six SATA 6 Gb/s connectors for connecting hard drives or SSDs.
Additionally, the ASUS ProArt B760-Creator Intel provides a range of ports and interfaces, including Thunderbolt 3 ports, USB 3.2 Gen 2 ports, a Gigabit Ethernet port, and integrated audio. It also supports M.2 slots with NVMe support for fast data transfer rates.
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Wireless transmission | Wi-Fi |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Number of memory modules (RAM) | 4x |
Memory type | DDR4-RAM |
Internal connection options | M.2 (1x), S-ATA (4x) |
Item number | 24001309 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1DU0-M0EAY0 |
Release date | 9.3.2023 |
Form factor | ATX |

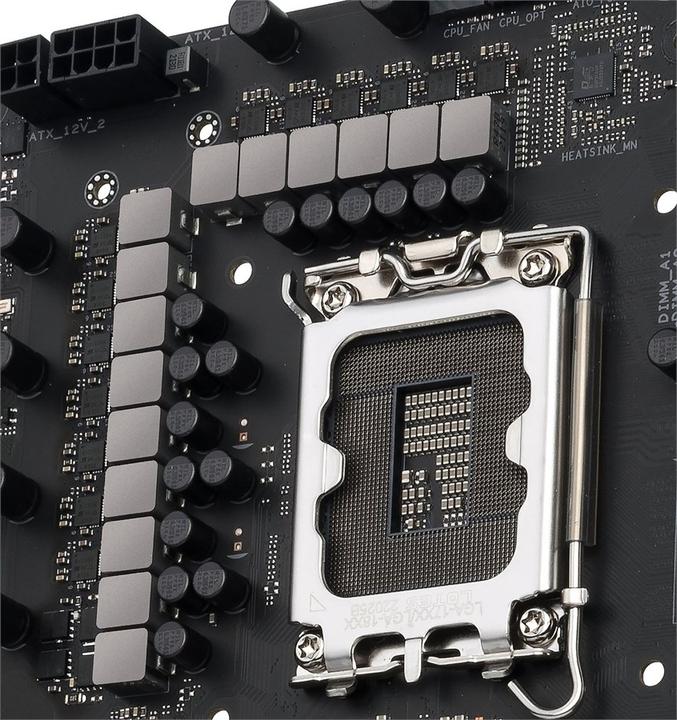

Socket | LGA 1700 |
Chipset | Intel B760 |
Mainboard features | Clear CMOS Button, Front panel audio connector, RGB header |
Operating system compatibility | Windows, Windows 10 |
BIOS type | UEFI |
Wireless transmission | Wi-Fi |
Processor family | Core i3 12th Gen, Core i3 13th Gen, Core i3 14th Gen, Core i5 12th Gen, Core i5 13th Gen, Core i5 14th Gen, Core i7 12th Gen, Core i7 13th Gen, Core i7 14th Gen, Core i9 12th Gen, Core i9 13th Gen, Core i9 14th Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5333 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |
Video connections | DisplayPort, HDMI Type A |
Video connection version | Display port 1.4, HDMI 2.1 |
Network connections | RJ45 2.5 Gigabit Ethernet (1x), RJ45 Gigabit Ethernet (1x) |
Max. port speed | 2.50 Gbit/s |
Audio channel | 7.1 Channel |
Audio Connections | Jack 3.5mm (5x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (1x), S-ATA (4x) |
Expansion slot | PCI Express x1 (Gen 3) (1x), PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 4 |

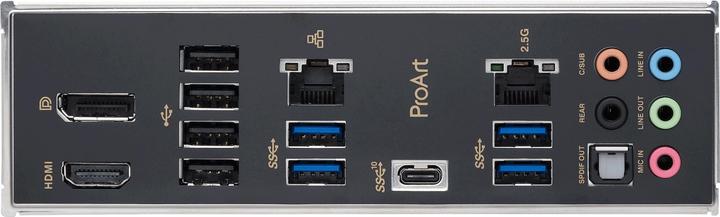

USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (4x) |
Power connectors | 20+8 pin ATX, 24-pin ATX |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |

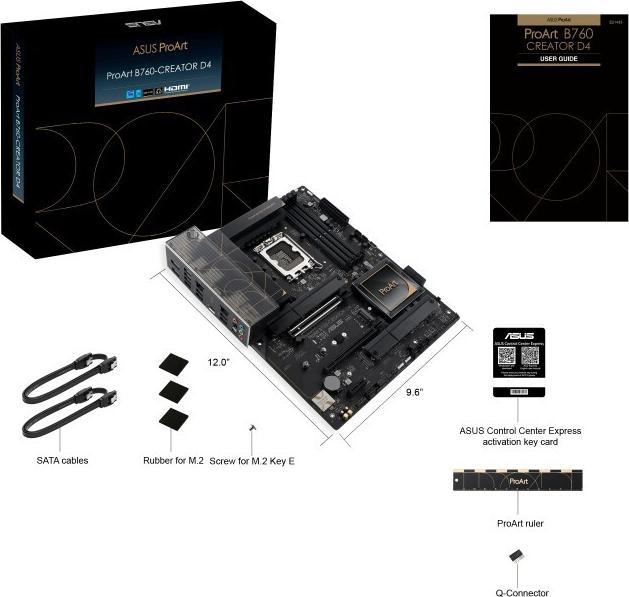

Scope of delivery | SATA cable, User manual |
Length | 305 mm |
Width | 305 mm |
Height | 50 mm |
Weight | 1850 g |
Product Safety |
Length | 35 cm |
Width | 28 cm |
Height | 7 cm |
Weight | 1.85 kg |
