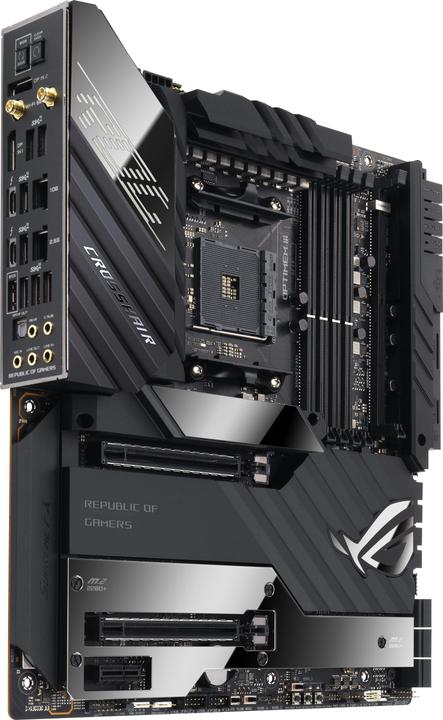

ASUS ROG Crosshair VIII Extreme ROG
AM4, AMD X570, E-ATXProduct details
ROG Crosshair VIII Extreme
The ROG Crosshair VIII Extreme motherboard is optimally designed to extract the maximum performance from the latest AMD Ryzen™ 5000 processors. It features the latest hardware and software, including a new passive cooling design that combines exceptional thermal performance with improved durability. With the dynamic OC Switcher, which automatically toggles between AMD's Precision Boost Overdrive and manual overclocking, overclocking becomes even easier.
TECHNICAL SPECIFICATIONS
The specifications depend on the CPU type. The specified specifications refer to AMD Ryzen™ desktop processors from the 5000 and 3000 series.
PERFORMANCE
The ROG Crosshair VIII Extreme motherboard is built for uncompromising performance. With an intelligent VRM rated for 90 Amperes, high-quality components, and an optimized memory layout, the motherboard delivers outstanding performance.
Processor family | AMD 3000 Series, AMD 5000 Series |
Memory type | DDR4-RAM |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button |
Internal connection options | S-ATA III (1x) |
Number of memory modules (RAM) | 4x |
Item number | 16525189 |
Manufacturer | ASUS |
Category | Motherboards |
Manufacturer no. | 90MB1860-M0EAY0 |
Release date | 17.9.2021 |
Form factor | E-ATX |
Socket | AM4 |
Chipset | AMD X570 |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Linux, Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | AMD 3000 Series, AMD 5000 Series |
Memory form factor | DIMM |
Number of pins | 288x |
Number of memory modules (RAM) | 4x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR4 RAM |
Max. RAM OC | 5000 MHz |
Supported memory speed | 2133 MHz, 2400 MHz, 2666 MHz, 2800 MHz, 2933 MHz, 3000 MHz, 3200 MHz |
Memory type | DDR4-RAM |
RAM buffer | Unbuffered |

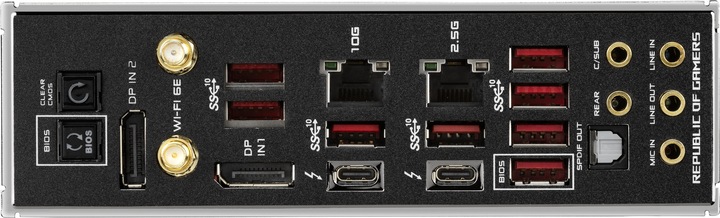

Video connections | DisplayPort (2x), HDMI (2x) |
Multi-GPU technology | NVIDIA SLI |
Network connections | RJ45 (2x) |
Ethernet controller brand | Marvell |
Ethernet controller | Intel I225-V, Marvell AQtion AQC113CS |
Max. port speed | 10 Gbit/s |
Chip | Realtek ALC4082 |
Audio channel | 7.1 Channel |
Audio Connections | Audio In |
Internal connection options | S-ATA III (1x) |
Expansion slot | PCI Express x1 (Gen 3) (1x), PCI Express x16 (4x) |
PCI express version (max.) | 4 |
Number of fan connector | 2 |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (2x) |
Power connectors | 20+8 pin ATX |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |

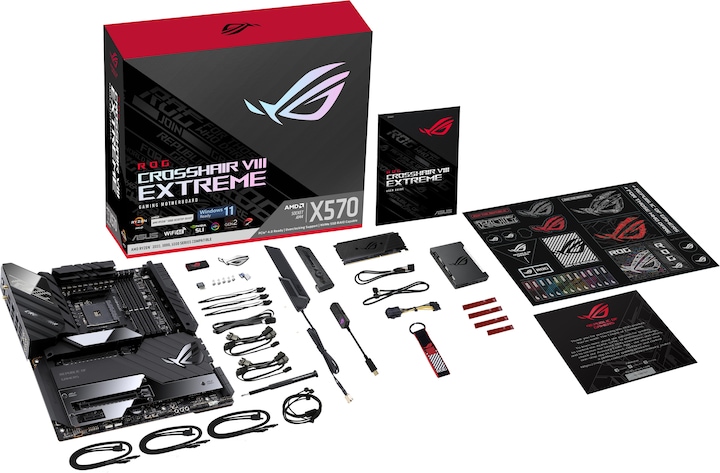

Scope of delivery | 3 x Serial ATA cable , External fan power adapter cable |
Length | 277 mm |
Width | 305 mm |
Height | 108 mm |
Weight | 3000 g |
Product Safety |
Length | 37.50 cm |
Width | 32.90 cm |
Height | 7.10 cm |
Weight | 3.06 kg |
