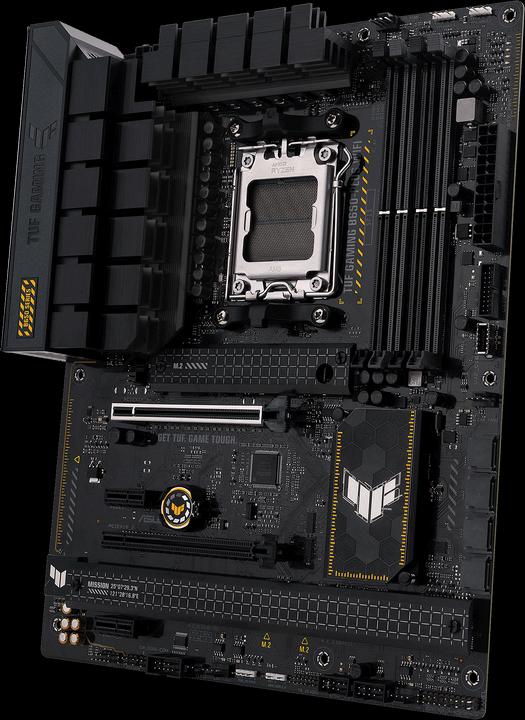

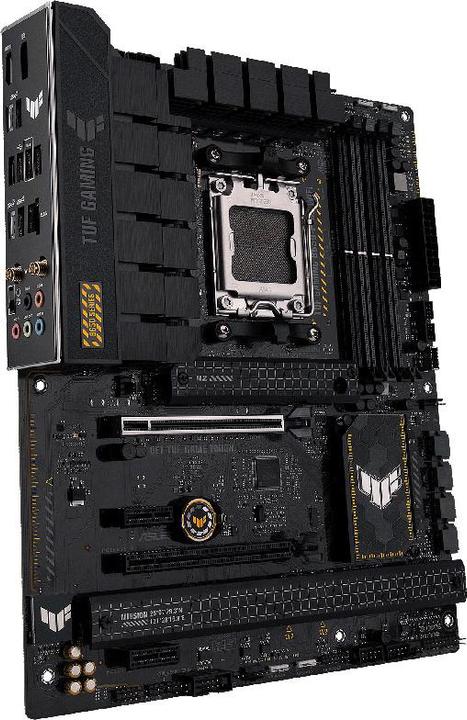

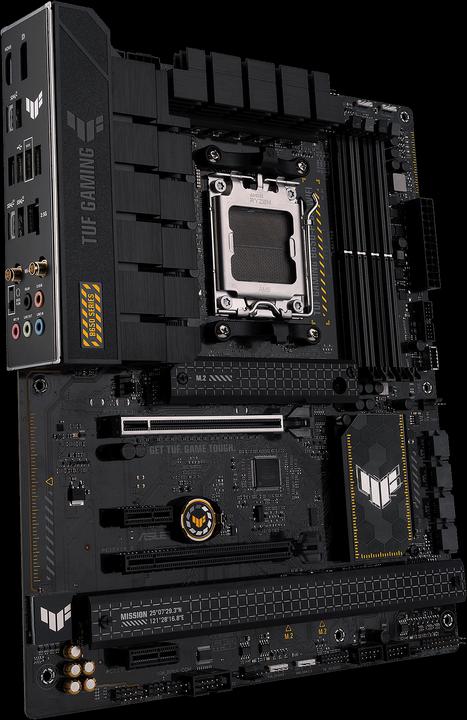

ASUS TUF GAMING B650-PLUS WIFI

AM5, AMD B650, ATX
Price in EUR including VAT, free shipping
43Ratings
Delivered Mon, 19.5.
More than 10 items in stock

Product details

Key specifications

Processor family
Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen
Memory type
DDR5 RAM
Number of memory modules (RAM)
4 x
Internal connection options
24-pin ATX power connector (1x), 4-pin ATX 12V (1x), 4-pin CPU (1x), 4-pin Molex (3x), 8-pin ATX 12V (1x), M.2 PCIe (3x)

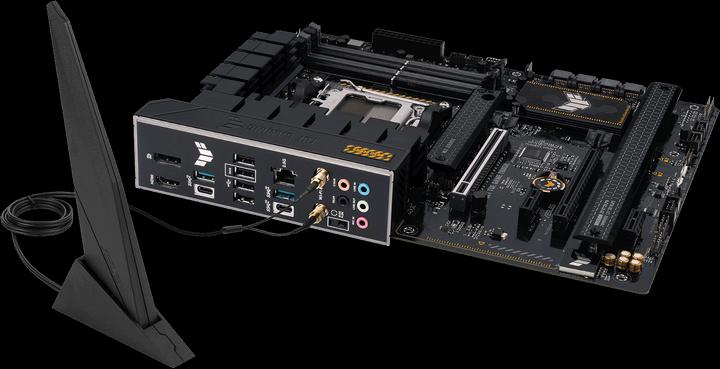

Wireless transmission
Bluetooth, Wi-Fi
Mainboard features
Clear CMOS Button, COM Port Header, RGB header, Thunderbolt header
Item number
22605355

General information

Manufacturer
ASUS
Category
Motherboards
Manufacturer no.
90MB1BZ0-M0EAY0
Release date
22.9.2022

Motherboard properties

Form factor
ATX
Socket
AM5
Chipset
AMD B650
Mainboard features
Clear CMOS Button, COM Port Header, RGB header, Thunderbolt header
Operating system compatibility
Windows 10
BIOS type
UEFI AMI
Wireless transmission
Bluetooth, Wi-Fi
Wi-Fi standard
Wi-Fi 6 / 802.11ax

Processor

Processor family
Ryzen 5 7th Gen, Ryzen 7 7th Gen, Ryzen 9 7th Gen

Memory

Memory form factor
DIMM
Number of pins
288 x
Number of memory modules (RAM)
4 x
Max. memory (RAM)
128 GB
Memory chip
DDR5
Max. RAM OC
6400 MHz
Supported memory speed
5000 MHz, 6400 MHz, 6600 MHz, 7000 MHz
Memory type
DDR5 RAM
RAM buffer
Error Correcting Code

Graphics properties

Video connections
DisplayPort (1x), HDMI (1x)
Video connection version
Display port 1.4, HDMI 2.1

Network

Network connections
RJ45 2.5 Gigabit Ethernet (1x)
Ethernet controller brand
Realtek
Ethernet controller
Realtek 2.5GbE LAN
Max. port speed
2.50 Gbit/s

Audio

Chip
High Definition Audio
Audio channel
7.1 Channel
Audio Connections
Jack 3.5mm (5x)

Internal interfaces

Internal connection options
24-pin ATX power connector (1x), 4-pin ATX 12V (1x), 4-pin CPU (1x), 4-pin Molex (3x), 8-pin ATX 12V (1x), M.2 PCIe (3x)
Expansion slot
PCI Express x1 (2x), PCI Express x16 (1x)
PCI express version (max.)
4
Number of fan connector
7

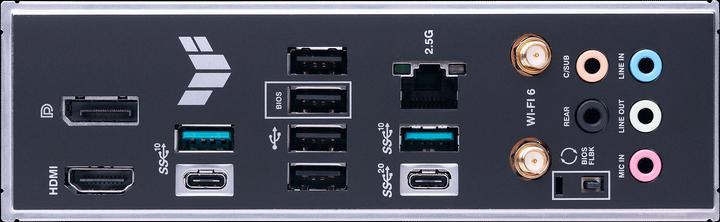

Further connections

USB ports
USB-A, USB-C
Exact USB ports
USB-A 2.0 (4x), USB-A 3.2 Gen 2 (2x), USB-C 3.2 Gen 2 (1x)

Power supply

Power connectors
24-pin ATX, 8-pin PCI-E

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer ASUS fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2 x Serial ATA cable

Product dimensions

Length
305 mm
Width
244 mm
Height
50 mm
Weight
1852 g

Package dimensions

Length
36.90 cm
Width
29.10 cm
Height
6.70 cm
Weight
1.82 kg
