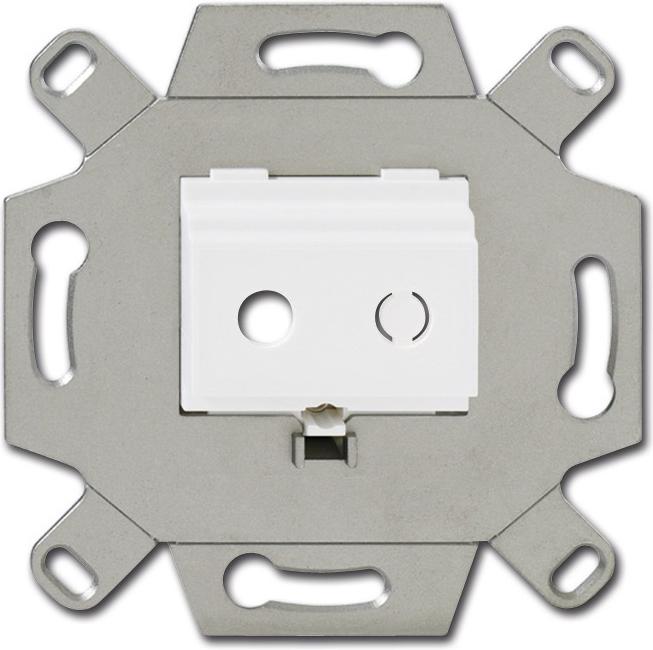

Busch-Jaeger Communication Adapter 0264/12

Manufacturer: Busch-Jaeger
Description: Communication adapter for jack socket
Type: 0264/12
Assembly: Basic element
Usage: Other
Mounting ring: Yes
With dust protection: No
With hinged cover: No
Outlet direction: Straight
Labeling field: Without labeling field
With print: No
Mounting type: Flush-mounted
Material: Metal
Material quality: Other
Halogen-free: Yes
Antibacterial treatment: No
Surface protection: Other
Surface finish: Matte
Color: Alpine white
Mounting type: Screw mounting
Number of modules (in modular design): 1
With sockets/couplings: No
Suitable for number of sockets/couplings: 2
With strain relief: No
Shielded sockets: No
Shielded housing: No
Terminal block: No
With lighting: No
Suitable for protection class (IP): IP20
Device width: 71 mm
Device height: 71 mm
Device depth: 16.5 mm
Min. depth of device box: 32 mm

Additional details: Communication adapter for mini jack sockets 3.5 mm. Compatible with TAE central plates 2539-21x and 1766-xxx. Designed to accommodate one or two sockets. For installation in cable ducts, flush-mounted device boxes, and underfloor systems. Without central plate. Without spreader.
