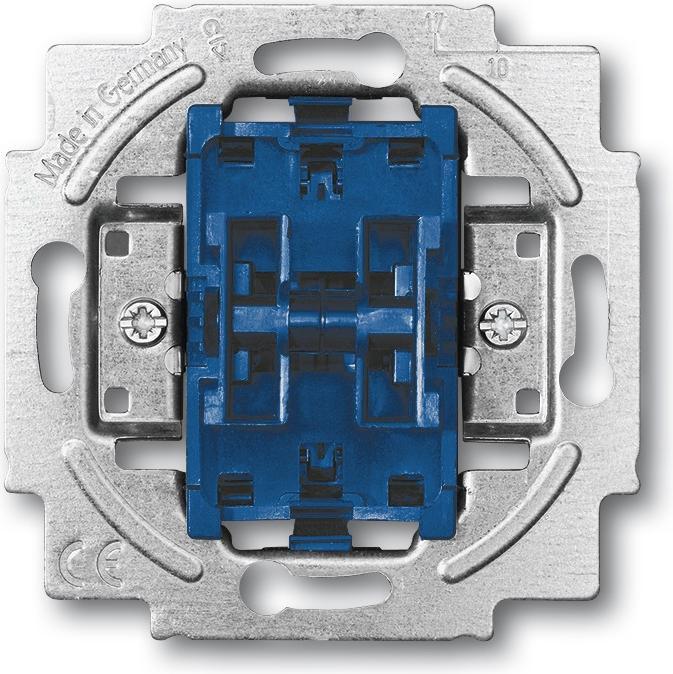

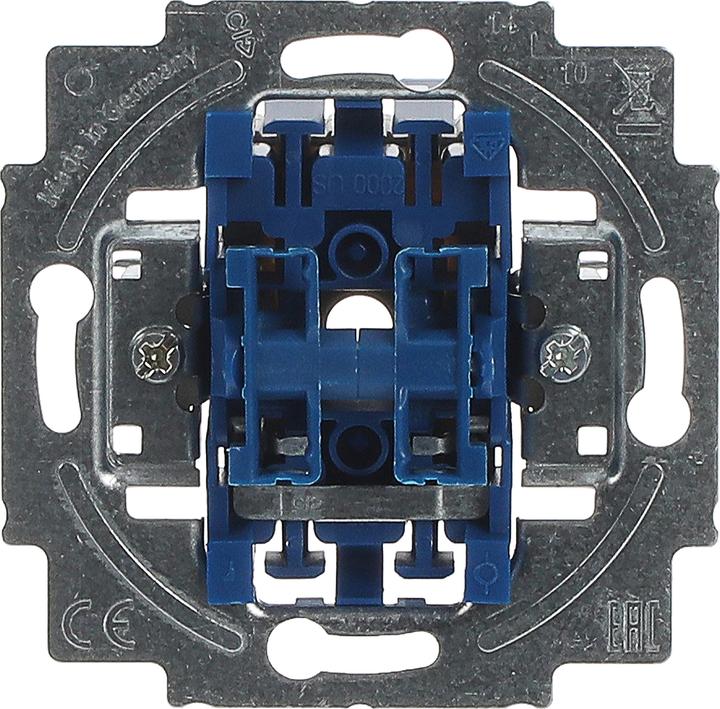

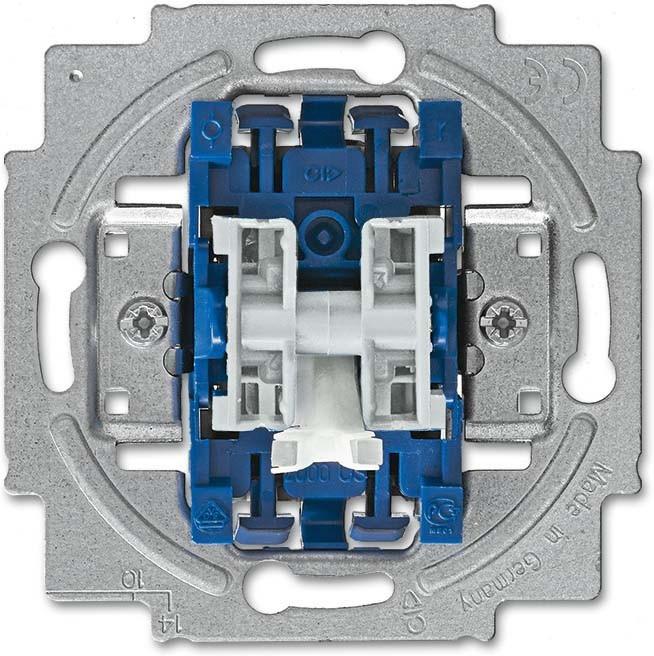

Busch-Jaeger Double Push Button Insert 2020 US-205

Manufacturer: Busch-Jaeger
Description: Double push button insert 1-pole 2x normally open
Type: 2020 US-205
Composition: Base element
Design: Standard push button
Operation type: Push button
Number of contacts as normally open: 2
Contactless design: no
Number of actuator buttons: 2
Number of poles: 1
Rated voltage: 250 V
Rated current: 10 A
With lighting: no
With light source: no
With signal lamp: no
Feedback contact: no
Connection type: Plug terminal
Mounting type: Flush-mounted
Mounting method: Claw/screw fastening
Material: Plastic
Material quality: Thermoset
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: matte
Color: blue
RAL number (similar): 5010
Transparent: no
Text field/labeling area: no
Printing: none
Suitable for protection class (IP): IP20
Device width: 71 mm
Device height: 71 mm
Device depth: 40 mm
Min. depth of device box: 25 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no

With one input terminal and 2 actuator buttons. Only to be installed in conjunction with commercially available flush-mounted device boxes according to DIN 49073. Can be illuminated by inserting lamp 8338-1.
EAN: 4011395045701.
