Busch-Jaeger Touch Control Element TB/U6.8.11-CG

Manufacturer: Busch-Jaeger
Designation: Touch Control Element 6-fold
Type: TB/U6.8.11-CG
KNX Bus System: yes
KNX Wireless System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Bidirectional Wireless: no
Mounting Type: Flush-mounted
With Theft/Dismantling Protection: yes
With Bus Coupling: no
Number of Control Points: 6
Number of Buttons: 6
With LED Display: no
With Labeling Field: yes
With Display: no
Material: Glass
Material Quality: other
Surface Protection: untreated
Surface Finish: glossy
Color: other
Transparent: no
With Room Thermostat: no
With Infrared Sensor: no
Protection Class (IP): IP20
Min. Depth of Device Box: 35 mm

The Busch-Jaeger Touch Control Element TB/U6.8.11-CG is a freely configurable multifunction control element with an integrated KNX bus coupler and temperature sensor, as well as an integrated proximity function. The button function includes switching, dimming, blinds, sending values, and light scenes. Support for KNX functions is provided through an innovative color concept (yellow = lighting, blue = blinds, orange = RTR, magenta = scene, and white = neutral/no function assignment) or standard lighting in red/green. The bus connection is made via the included bus terminal.

Number of Bus Participants: 1

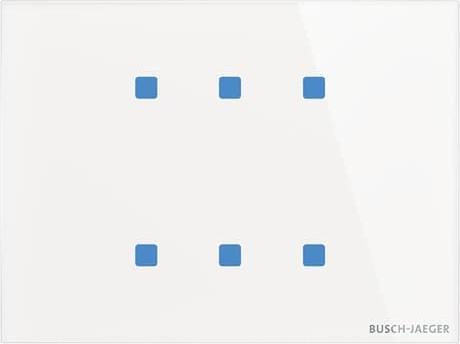

These individually produced devices are non-returnable. The image shows a configured device. Orders are only possible in conjunction with the specified design ID or the generated design ID from the configurator.
EAN: 4011395256428.
