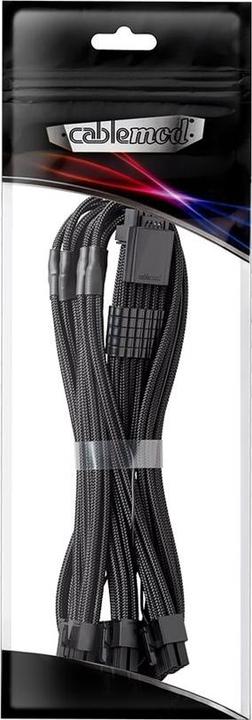

Graphics cards in the GeForce RTX 4000 series from NVIDIA use a new 16-pin connector (12+4-pin) with PCIe 5.0 standard for the power supply. This connector is also known as the 12VHPWR connector. With the RT-Series Pro ModMesh 12VHPWR to 3x PCI-e cable, CableMod offers a 12VHPWR PCIe 5.0 adapter that was developed for RT series power supplies from ASUS and Seasonic without a native 12VHPWR connection.

The CableMod RT-Series Pro ModMesh 12VHPWR to 3x PCI-e cable utilises a high-quality ModMesh sleeving. This cable consists of 16AWG conductors and is equipped with five pre-installed, closed cable combs.

Important notes: For the 16-pin 12VHPWR to 3x 8-PCIe cable to function correctly, all 8-pin connectors must be connected to the power supply unit. The distance between the graphics card connector and the side panel must be at least 4 to 4.5 cm. In addition, the cable should only be bent at a distance of 35 mm from the connector on the GPU. Finally, it should be ensured that the 12+4 pin plug is fully and securely inserted into the socket on the graphics card.

Technical details:

• Length: 600 mm
• Colour: Black
• Material: ModMesh
• Conductor thickness: 16 AWG
• Connectors:
• 1x 16-pin 12VHPWR PCIe 5.0
• 3x PCIe 8-pin
• Compatibility:
• ASUS Loki SFX-L, ROG Strix, ROG Thor, TUF Gaming
• Seasonic CORE, FOCUS, G-Series, P-Series, PRIME, VERTEX, X-Series
• Phanteks Amp, Revolt.
