With this conversion kit, which includes a riser cable and a PCI slot bracket, a graphics card can be installed vertically in cases with seven PCI slots. To do this, the entire slot cover of the midi tower is removed and replaced with the slot cover included in the kit. The bracket has two PCI slots for the graphics card connections, which can be up to three slots high. The included rubber pads stabilize the GPU. The integrated riser cable is 210 mm long and supports PCIe Gen4 x16. CableMod also includes a 1.8 m DisplayPort cable and an HDMI adapter with this kit.

Technical details:

• Connections:

Connector: PCIe with 16 lanes
Socket: PCIe with 16 lanes

• Cable length: 210 mm
• Color: Black
• Supported PCI Express standards: 1.x, 2.x, 3.0, 4.0
• Compatibility:

Cases with 7 PCI slots

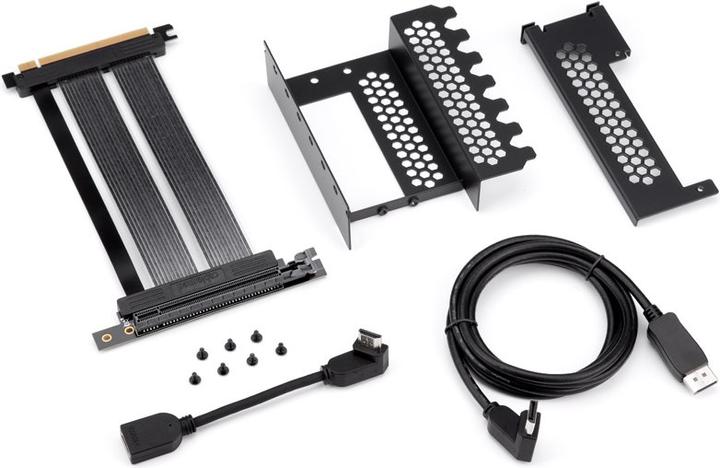

• Package contents:

1x Vertical PCI bracket
1x PCIe 4.0 x16 riser cable
1x DisplayPort cable (1.8 m)
1x HDMI adapter
7x screws.
