Cisco Ucs Sp C24 Entry W/2Xe5-2420

Intel Xeon E5-2420, Rack Server
Currently out of stock

Product details

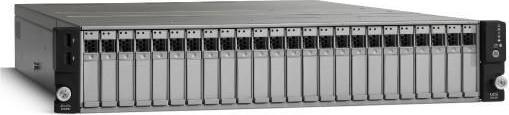

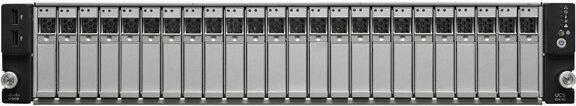

The Cisco UCS SP C24 Entry Rack Server with two Intel Xeon E5-2420 processors is a powerful solution for businesses that require a reliable and scalable server infrastructure. With a form factor of 2U, this server accommodates up to 24 hard drives, providing high storage capacity and flexibility. The server supports DDR3 RAM and offers a maximum memory support of 32 GB, making it ideal for data-intensive applications. The hot-swapping feature of the hard drives ensures uninterrupted maintenance, while the ECC RAM technology guarantees data integrity. The server is equipped with an Intel C600 chipset and offers a variety of interfaces, including PCI Express 3.0, to enable seamless integration into existing IT infrastructures.

  • Two Intel Xeon E5-2420 processors with 6 cores and 12 threads
  • Maximum support of 32 GB DDR3 RAM with ECC
  • Hot-swapping feature for hard drives to minimize downtime
  • RAID-capable storage controller for enhanced data security
  • PCI Express 3.0 interfaces for high data transfer rates.

Key specifications

Number of rack units
2 U
Processor family
Xeon E5
Processor type
Intel Xeon E5-2420
Max. number of hard disks
24
Number of processors
2 x
Item number
20701583

General information

Manufacturer
Cisco
Category
Servers
Manufacturer no.
UCS-SP6-C24E
Release date
28.4.2022

Hardware form factor

Design
Rack Server
Number of rack units
2 U

Processor

Processor family
Xeon E5
Processor type
Intel Xeon E5-2420
Number of processors
2 x
Clock frequency
1.90 GHz
Number of threads
12
Number of processor cores
6 -Core
Max. turbo clock rate
2.40 GHz
Max. TDP
95 W
L3 Cache
15 MB

Motherboard properties

Socket
LGA 1356
Chipset
Intel C600

Memory

Memory type
DDR3-RAM
Max. RAM
32 GB
RAM speed
1600 MHz
RAM error correction
ECC

Data storage controller

Mass storage controller type
RAID

Hard drive slots

Max. number of hard disks
24
Form factor
2.5"
Hard disk additional functions
Hot swapping

Internal interfaces

PCI express version (max.)
3

External interfaces

Connectivity
Ethernet

Network

Network connections
RJ45 (7x)
Ethernet controller
Gigabit Ethernet
Max. port speed
256000 Mbit/s

Graphics card properties

Graphics card model
Matrox G200e
Video memory type
DDR3
Graphics chip (GPU)
Matrox
Hardware interface
PCI Express 3.0

Optical drive properties

Optical drive type
No drive

Operating system

Processor design
64-bit

Mains supply properties

Number of power supply units
2 x
Power
450 W
input voltage
230 V

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
660.50 mm
Width
430 mm
Height
87.60 mm
