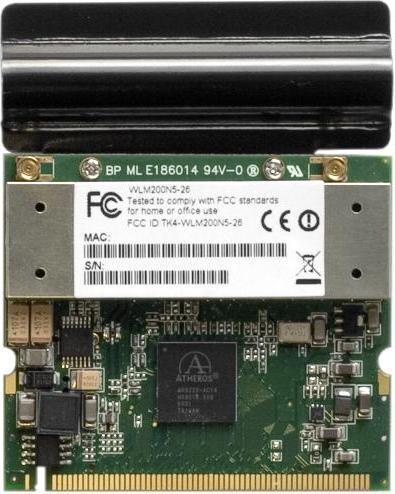

The WLM200N5-26dBm MiniPCI wireless network adapter provides leading 802.11a/n performance, supporting up to 300 Mbps physical data rates and about 200 Mbps of actual user throughput on both the uplink and downlink. Adding the Compex WLM 11n series mini-PCI wireless network adapter to your device will greatly improve network performance and achieve higher efficiency in everyday activities such as file transfers, internet browsing, and media streaming.

The Compex WLM200N5-26dBm miniPCI network adapter offers a high output power of 400 mW, allowing for an extended range of wireless coverage. Combined with excellent receiver sensitivity, the WLM200N5-26dBm is the miniPCI radio card choice for long-distance links or those where signal levels are reduced due to minor obstructions such as trees or buildings.

Built on the Atheros chipset, it can be used with all draft IEEE 802.11n compatible WLANs and is ideally suited for integration into a wide range of OEM devices.

• 5 GHz IEEE 802.11a standard Draft 2.0
• Output power of up to 26 dBm (MiMo aggregate 29 dBm)
• Support for up to 2x2 MiMo with spatial multiplexing
• Four times the throughput of 802.11a
• Transmission Power Control (TPC)
• Enhanced performance with Atheros XSPAN technology optimized for higher throughput at long range
• High performance (up to 300 Mbps physical data rates and about 200 Mbps of actual throughput) with low power consumption
• Dynamic Frequency Selection (DFS)
• Multi-country roaming support (IEEE 802.11d)
• 2 x MMCX antenna connector
• Suitable for embedded systems or OEM projects
• Affordable and ideal for a variety of applications
• Chipset: AR9220
• Driver information: Linux, Windows XP, Windows 2000, Windows Vista.
