A great performer with AMD EPYC performance in a rack mountable enclosure. This model includes 8GB DDR4 RAM, 256GB M.2 solid state flash and can handle up to 14.6 Gbps firewall and 2.3 Gbps IPsec throughput.

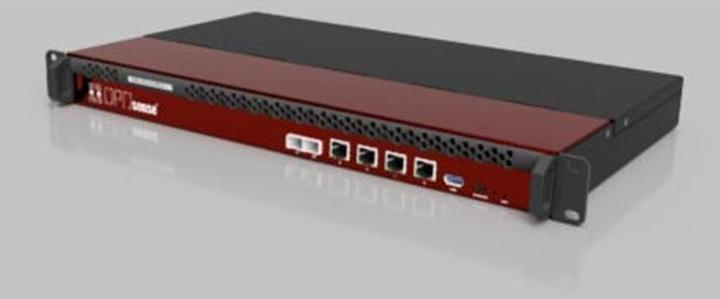

• 19″ 1U rack appliance
• Matching power cord
• Configuration cable
• Quickstart guide

Software

• Preinstalled software OPNsense
• License Open Source + 1 year free Business Edition

Hardware Specifications

• SFP+ Ports [10 Gbps] 2
• GbE RJ45 Ports [10/100/1000 Mbps] / 2.5 GbE [100/1000/2500 Mbps] 4x 2.5 GbE
• USB 3.0 Ports 2
• Console Port 1
• Internal Storage 256GB M.2 solid state flash
• Memory 16GB DDR4
• CPU Cores 8 (max frequency 3.1 GHz)
• Virtual Interfaces (802.1q VLANs) 4093

System Performance

• Firewall Throughput 17.4 Gbps
• Firewall Packets Per Second 1,450 Kpps
• Firewall Port to Port Throughput 9 Gbps
• Firewall Port to Port Packets Per Second 1,450 Kpps
• Concurrent Sessions 15,000,000
• New Connections Per Second 50,000
• Firewall Latency (average) 100 µs
• Firewall Policies (Recommended Maximum) 10,000
• IPsec VPN Throughput (AES256GCM16) 2.5 Gbps
• IPsec VPN Packets Per Second (AES256GCM16) 200 Kpps
• Threat Protection Throughput Packets Per Second 163 Kpps
• Threat Protection Throughput ~2 Gbps
• High Availability with State Synchronization Requires Two

Dimensions

• Height x Width x Depth (mm) 43.65 (1U) x 482.6 (19″) x 282 (259 excl. panel)
• Height x Width x Length (inches) 1.72 x 19 x 11.1 (10.2 excl. panel)
• Form Factor 19″ Rackmountable
• Weight (appliance only) 3.45 kg

Environment

• Power Requirements 100-240 VAC, 50-60 Hz
• Maximum Current 2.2 A
• Power Consumption (Typical) 45 W
• Heat Dissipation 153.6 BTU/hr
• Operating Temperature 0 to +50°C
• Storage Temperature -20 to +70°C
• Humidity 10-90% non-condensing

Regulatory Compliance

• FCC part 15 Class A, CE, RoHS.
