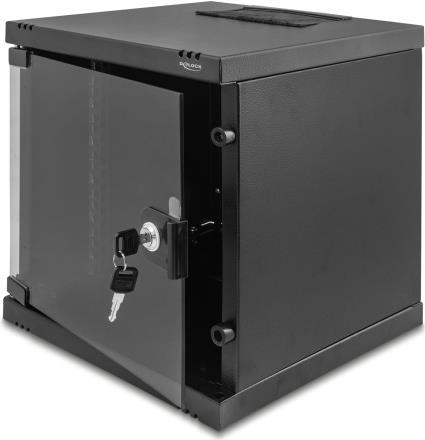

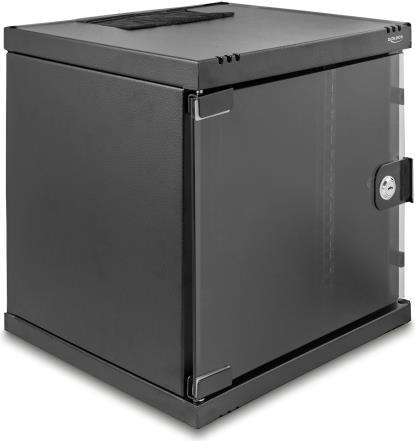

This mini network cabinet from Delock can be used for both floor and wall mounting and is ideal for the installation of 10-inch devices, such as patch panels.

Lockable front door with viewing window
The 10-inch network cabinet can be locked for added security. The viewing window provides a clear view of the interior of the cabinet at all times.

Optimal cable management with brush insert
The cable entries on the top cover allow cables to be fed into the cabinet from above. The included nylon brushes at the top entry prevent dust and dirt from entering.

Versatile application possibilities
The home network cabinet is perfect for smaller network environments and allows for a secure and tidy installation of IT devices.

Specifications

• 10-inch network cabinet for floor or wall mounting, 6 HE
• 2 profile rails at the front, depth adjustable
• Front door with safety glass, lockable
• Cable entry in the floor and roof with brush insert (145 x 70 mm)
• Ventilation slots for air intake and exhaust
• Installation depth: max. 240 mm
• Load capacity: max. 30 kg
• Weight: approx. 8 kg
• Protection class: IP20
• Color: black
• Material: SPCC 1.2 mm steel sheet with powder coating
• Dimensions (LxWxH): approx. 330 x 312 x 300 mm

Package contents

• Network cabinet
• 2 x keys
• 20 x M6 screws
• 20 x washers
• 20 x cage nuts.
