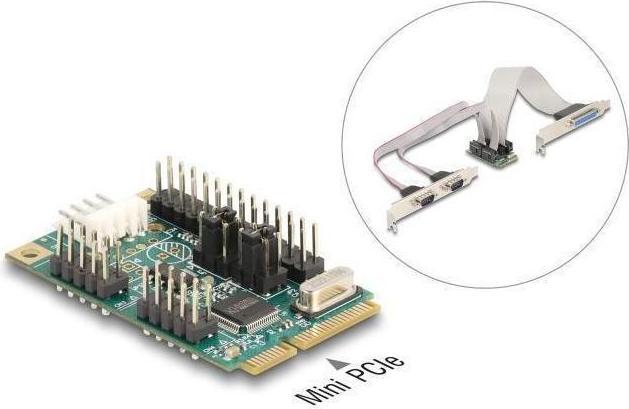

This Mini PCIe module by Delock provides you with two serial and one parallel interface, which you can connect to the outside via the slot bracket. You can connect various serial and parallel devices such as printers, scanners, and modems to the adapter.

Optional power supply via RS-232
Connected devices can optionally be supplied with a voltage of 5 V or 12 V.

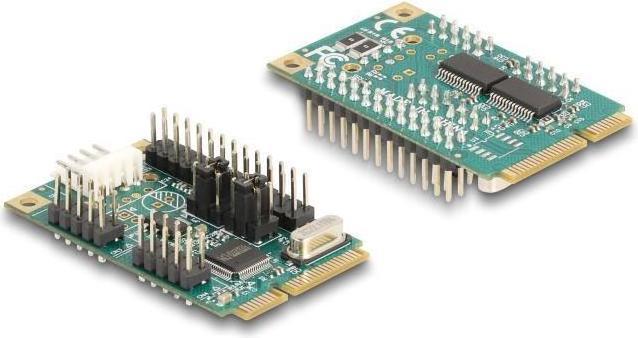

Technical data

• Connections:

External:
2 x serial D-Sub 9 pin plug
1 x parallel D-Sub 25 pin socket
Internal:
1 x Mini PCI Express, Rev. 1.2
2 x 10 pin male connectors
1 x 26 pin male connector
1 x floppy 4 pin male connector

• Chipset: WCH382L
• Form factor: Mini PCIe full size
• Serial specification:
• Data transfer rate up to 460.8 Kbps
• FIFO: 2 x 256 Byte
• Data bits: 5, 6, 7, 8
• Stop bits: 1, 2
• Parity bit: even, odd, none, marked, empty
• Flow control: none, hardware RTS/CTS, software XON/XOFF
• Signals: DCD, TxD, RxD, RTS, CTS, DTR, DSR, GND, RI/12V/5V
• Jumper for setting RI or 5 V / 12 V on pin 9
• Electrical power per port: max. 20 Watt (5 V / 4 A)
• Electrical power per port: max. 48 Watt (12 V / 4 A)
• Parallel specification:
• Data transfer rate up to 1 Mbps
• SPP, PS2, EPP, ECP compatible with IEEE 1284
• Cable length including connections: approx. 25 cm
• Dimensions (LxWxH): approx. 51 x 30 x 10 mm

System requirements

• Windows 10/10-64/11
• Windows Server 2022
• Mainboard with one free Mini PCIe slot with PCIe interface

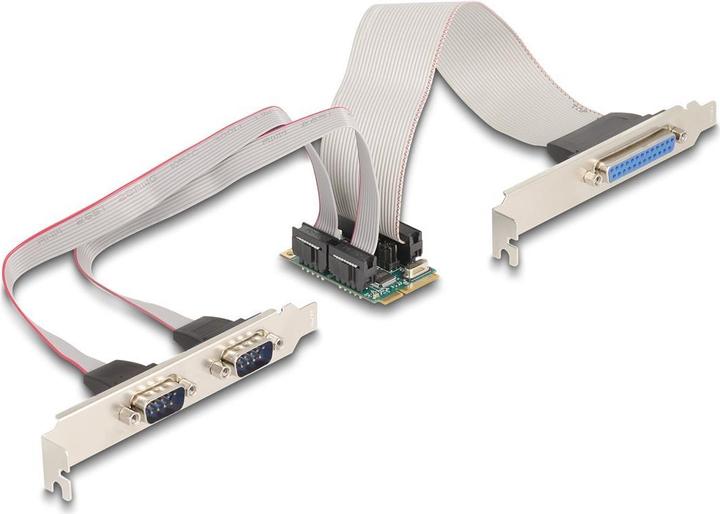

Package contents

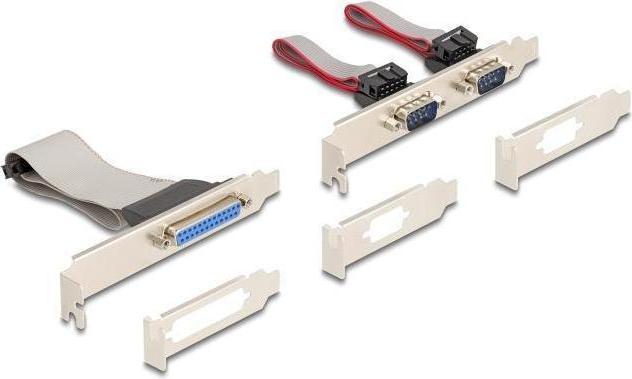

• Mini PCIe module
• 2 serial connection cables
• 1 parallel connection cable
• 2 x standard bezels
• 3 x low profile bezels
• Operating instructions.
