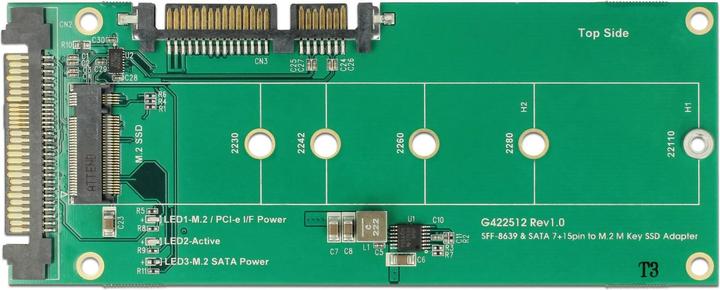

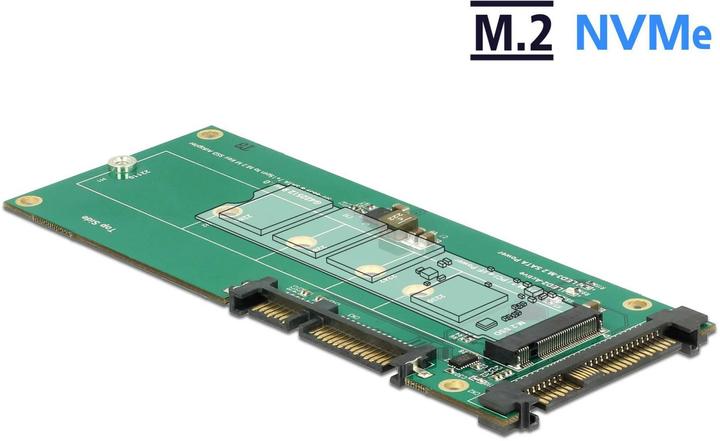

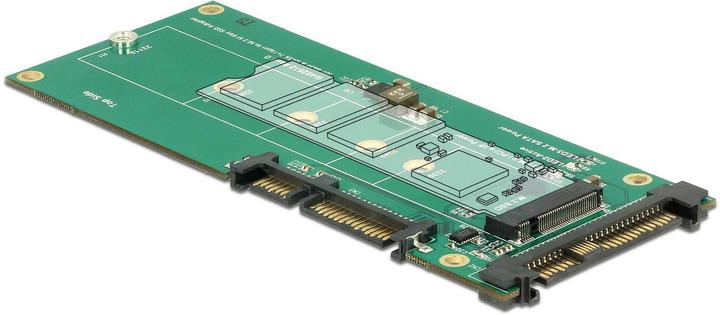

This Delock converter allows for the connection of an M.2 SSD in the 22110, 2280, 2260, 2242, and 2230 formats. It enables the use of an M.2 SSD based on PCIe or SATA. The converter can be integrated internally into the system via the SATA interface when using a SATA M.2 SSD, or through the U.2 interface when using a PCIe M.2 SSD.

Specifications:

• Connections:

1 x U.2 SFF-8639 connector (for PCIe SSDs 2 or 4 lanes)
1 x SATA 6 Gb/s 22 pin socket (for SATA SSDs)
1 x 67 pin M.2 Key M slot

• Interface: SATA / PCIe (2 or 4 lanes)
• Supports M.2 modules in the formats 22110, 2280, 2260, 2242, and 2230 with Key M or Key B+M based on SATA or PCIe
• Maximum height of components on the module: 1.5 mm, use of double-sided modules possible
• LEDs for power and activity
• Bootable
• Supports NVM Express (NVMe)
• Maximum output current: 3 A
• Overcurrent protection, overheat protection, short circuit protection
• ESD protection up to 2 kV
• Dimensions (LxWxH): approx. 130 x 52 x 6 mm

System requirements:

• Linux Kernel 3.20 or higher
• Windows 7/7-64/8.1/8.1-64/10/10-64/11
• An available U.2 SFF-8639 interface (PCIe SSD) or
• An available SATA 22 pin interface (SATA SSD)

Package contents:

• Converter
• Mounting materials
• User manual.
