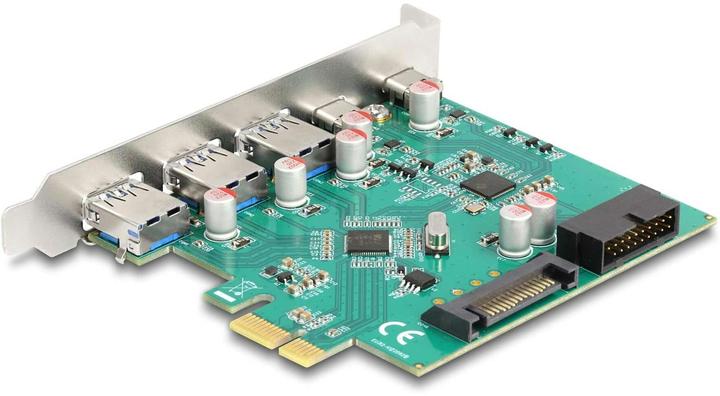

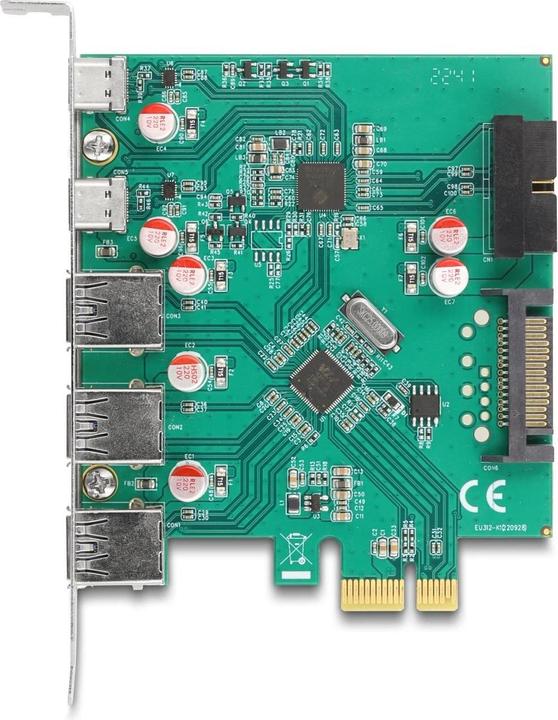

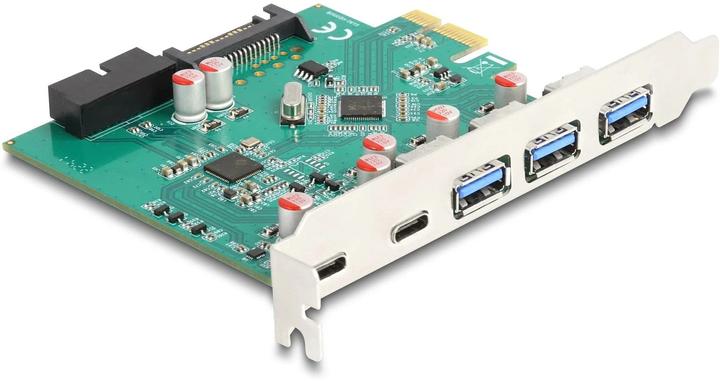

The Delock PCI Express card expands the PC with three external Type-A and two external USB Type-C ports, as well as one internal 19-pin USB header. Various USB devices, such as USB sticks, card readers, and external enclosures, can be connected. A maximum data transfer rate of up to 5 Gbps can be achieved.

Specifications:

• Connections:

external:
3 x USB 5 Gbps Type-A socket
2 x USB 5 Gbps USB Type-C socket
internal:
1 x 19-pin USB 5 Gbps header
1 x SATA 15-pin power connector
1 x PCI Express x1, V2.0

• Chipset: VIA VL805, Genesys Logic GL3510
• Data transfer rate up to 5 Gbps
• Power supply via SATA power connector
• Electrical power per port: max. 4.5 Watts (5 V / 900 mA)
• Supports eXtensible Host Controller Interface (xHCI) Specification 1.1
• Supports UASP
• Supports Multiple INs
• Bootable

System Requirements:

• Linux Kernel 5.15 or higher
• Windows 10/10-64/11
• PC with an available PCI Express slot
• Power supply with an available SATA power connector

Package Contents:

• PCI Express USB 5 Gbps card
• User manual.
