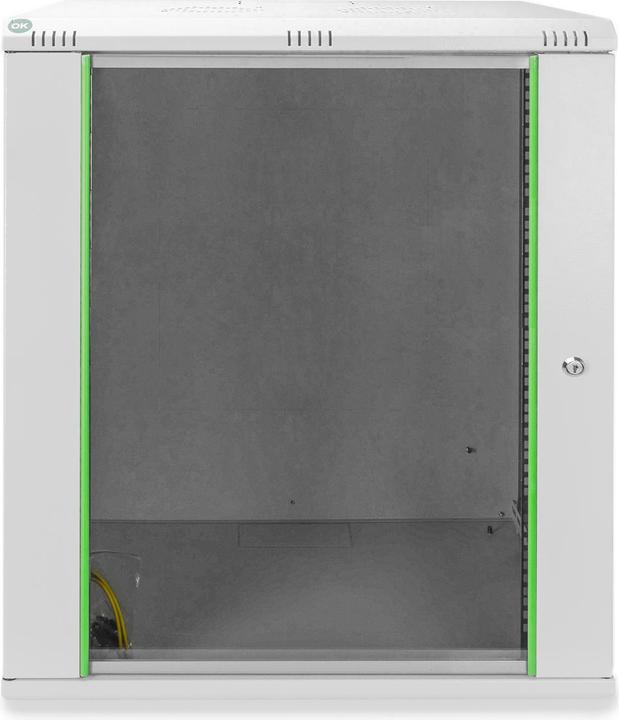

Digitus 48,3cm 19inch wall cabinet 16HE SoHoline RAL7035 grey H816mmxW600mmxD450mm with glass door
16 RU, 19 inch rackPrice in EUR including VAT
free shipping

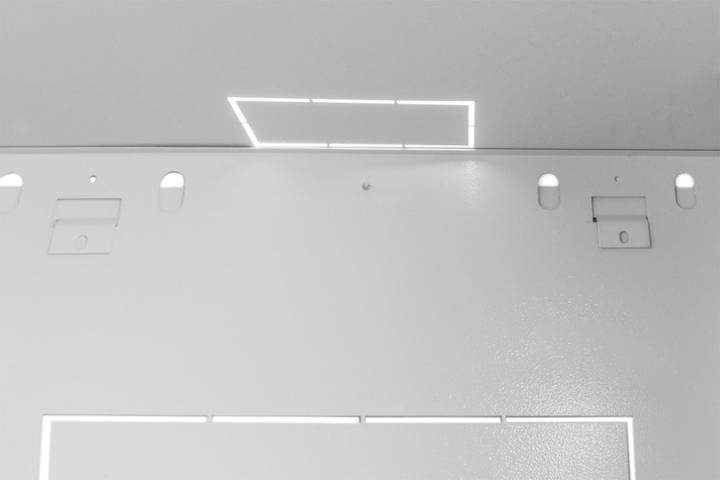

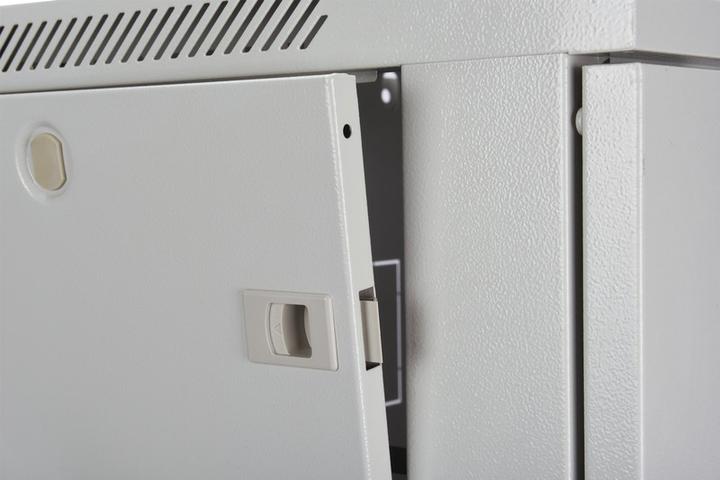

The wall-mounted network cabinets of the Dynamic series have been designed for easy and particularly cost-effective network expansion. The top, bottom, and rear panel of each cabinet are equipped with a pre-punched cable entry. The top chassis is also provided with a punched area for the installation of a fan module. Inside, there are two pairs of galvanized 483 mm (19") profile rails labeled with height units that can be read in both directions. These can be adjusted in depth. Each cabinet is a robust steel construction made from up to 1.5 mm thick steel sheet. The color finish is done through electrostatic powder coating in standard colors Grey (RAL 7035) and Black (RAL 9005). Removable side panels and a lockable and detachable front door enhance accessibility. A door hinge reversal can be performed. Wall mounting is done in two simple steps: the supplied mounting plate is screwed to the wall and then connected to the housing.
Type | Cabinet |
Usable installation depth | 380 mm |
Protection type (IP code) | IP20 |
Ventilation | Passive |
Server cabinet features | Lockable |
Item number | 10343543 |
Manufacturer | Digitus |
Category | Server cabinets |
Manufacturer no. | DN-19 16-U-EC |
Release date | 4.7.2023 |
Sales rank in Category Server cabinets | 4 of 1959 |
External links |
Colour | Grey |
Exact colour description | Light grey, RAL 7035 |
Material group | Metal |
Material | Glass, Steel |
Type | Cabinet |
Rack size | 19 inch rack |
Form factor size | 16 RU |
Usable installation depth | 380 mm |
Max. weight | 60 kg |
Protection type (IP code) | IP20 |
Ventilation | Passive |
Server cabinet features | Lockable |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | mounted |
Height | 816.20 mm |
Width | 600 mm |
Length | 450 mm |
Weight | 28 kg |
Length | 87 cm |
Width | 66 cm |
Height | 51 cm |
Weight | 28.50 kg |
