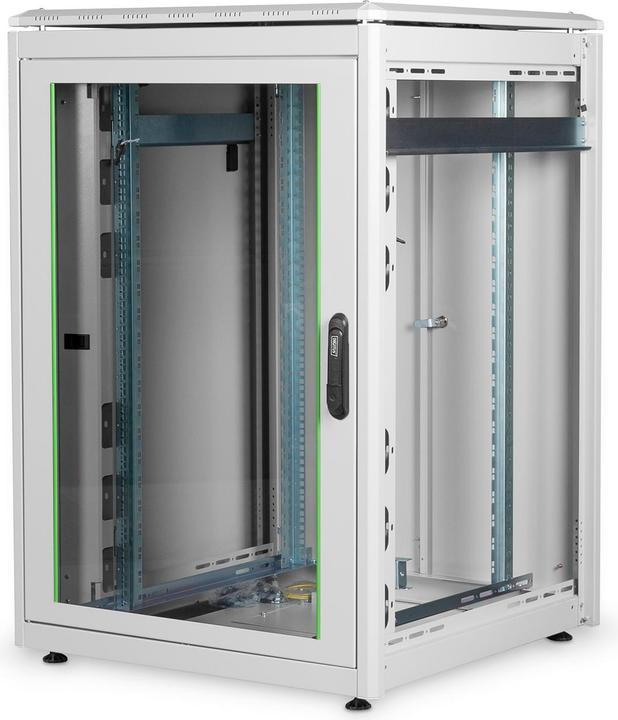

Digitus DN-19 22U-8/8-1 network cabinet
22 RU, 19 inch rack4 items ordered
Product details
The DIGITUS® Unique Series is designed, conceived, and developed to meet the high demands of IT infrastructure.
The top is prepared to accommodate a fan unit and features a removable cover. The locking system includes a swing lever handle on the front door and is prepared for the installation of a profile half-cylinder (adapter included). A sliding cable entry with a rubber seal is located at the bottom.

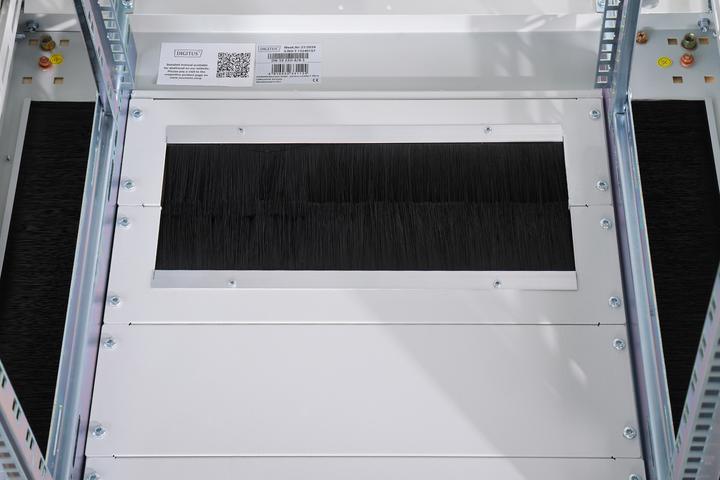

The network cabinets of the Unique Series have been developed for particularly comfortable and flexible network cabling. Brush-equipped entries in the top and bottom (from 26U and 800 mm cabinet width), a sliding entry in the bottom chassis with a rubber seal, and rear brush strips above and below the rear door (from 26U) allow for versatile use in various application scenarios. Vertical cable management channels with covers, installed next to the profile rails (from 800 mm cabinet width), complete the design. A recessed, removable cover with ventilation slots ensures improved air circulation and sits above a special construction for easy installation of a fan module.

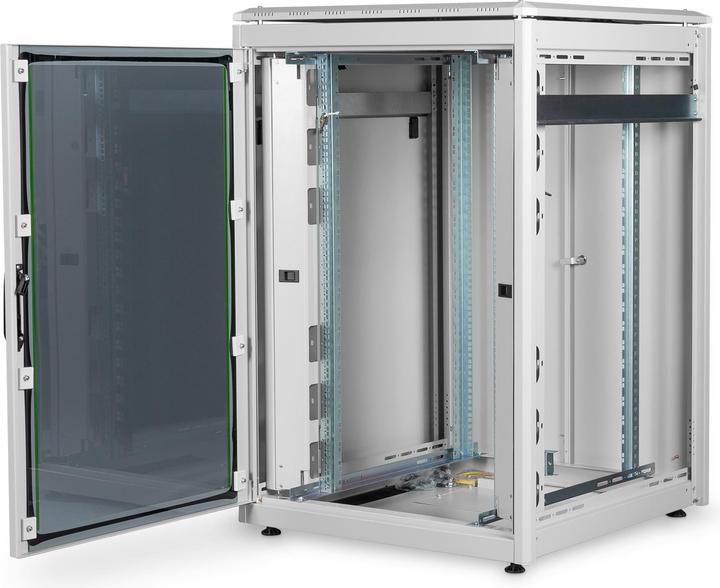

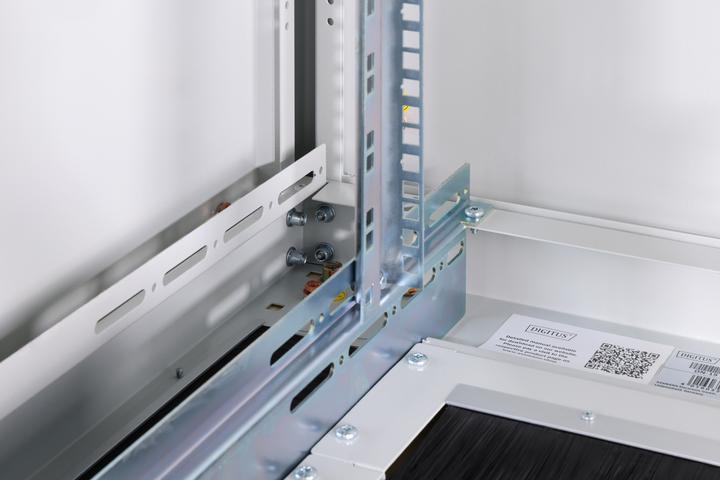

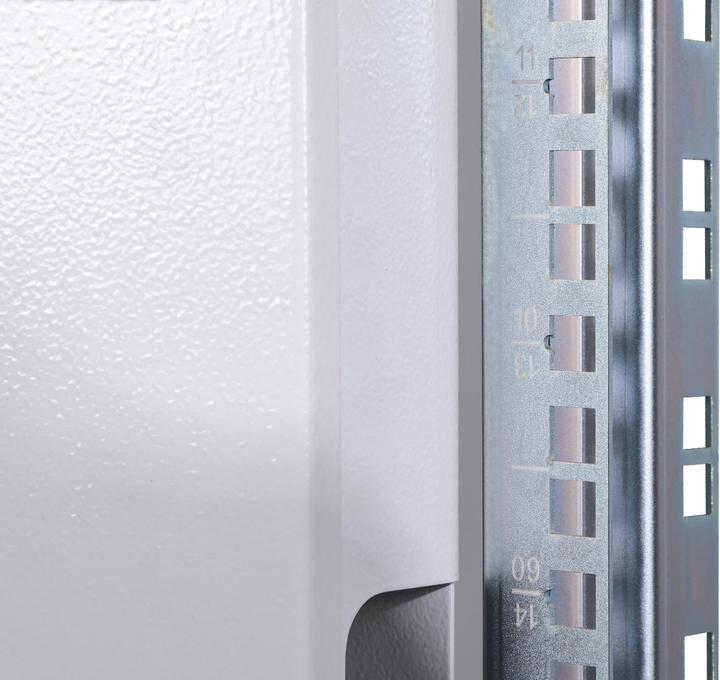

Two pairs of galvanized, height-adjustable 483 mm (19") profile rails, labeled for readability in both directions, are installed inside. They can be adjusted in depth and are connected with additional depth supports in the cabinet. Each cabinet is a robust steel construction made from up to 1.5 mm thick steel sheet. The color finish is applied through electrostatic powder coating in standard colors Gray (RAL 7035) and Black (RAL 9005). Modular lockable and removable side panels and doors enhance accessibility. A door hinge reversal can be performed. Furthermore, the cabinets can be completely disassembled if needed due to their modular construction.
Type | Floor standing cupboard |
Usable installation depth | 570 mm |
Protection type (IP code) | IP20 |
Server cabinet features | Door, Lockable |
Item number | 4668091 |
Manufacturer | Digitus |
Category | Server cabinets |
Manufacturer No. | DN-19 22U-8/8-1 |
Release date | 29.4.2015 |
Colour | Grey |
Exact colour description | Light grey, RAL 7035 |
Material group | Glass, Metal |
Material | Glass, Steel |
Type | Floor standing cupboard |
Rack size | 19 inch rack |
Form factor size | 22 RU |
Usable installation depth | 570 mm |
Max. weight | 1200 kg |
Protection type (IP code) | IP20 |
Server cabinet features | Door, Lockable |
Country of origin | China |
CO₂ emissions | 221,73 kg |
Climate contribution | EUR 5,56 |
Scope of delivery | 2 keys, 2 pairs of adjustable mounting rails, Brush Strips, Glass front door, Rack levelling feet, Rear door, Screws, Side parts |
Height | 1164 mm |
Width | 800 mm |
Length | 800 mm |
Weight | 77 kg |
Product Safety |
Length | 82 cm |
Width | 81 cm |
Height | 110 cm |
Weight | 68 kg |
