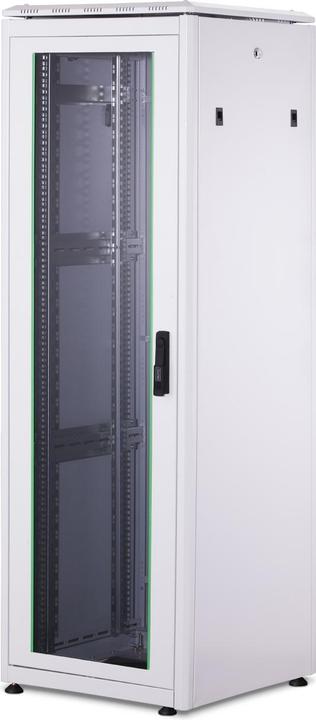

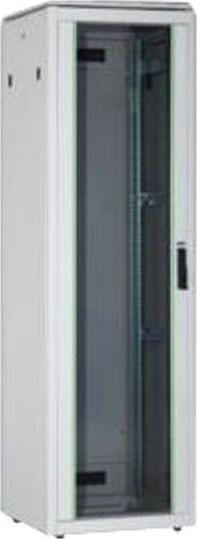

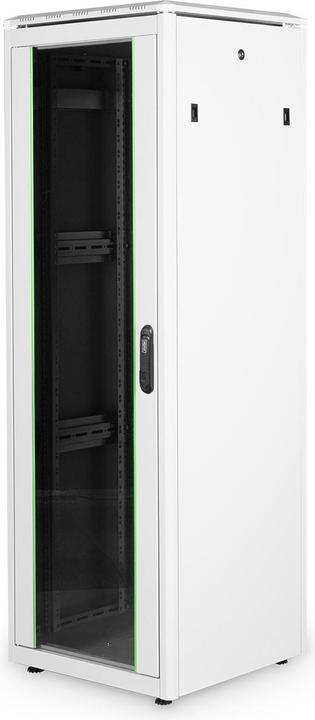

Digitus DN-19 36U-6/6-1 network cabinet

36 RU, 19 inch rack
Currently out of stock

Product details

The DIGITUS® Unique Series is designed and developed to meet the high demands of IT infrastructure.

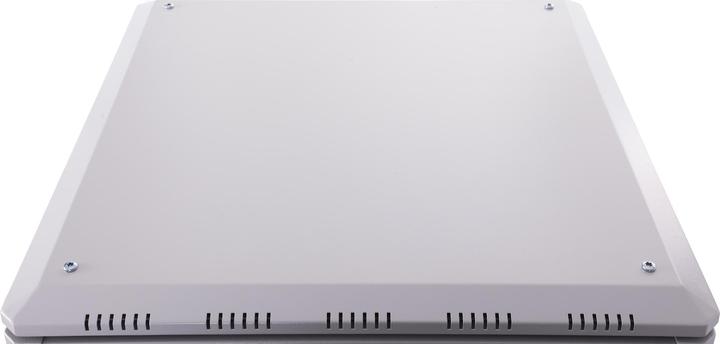

  • The top is prepared for the installation of a fan unit and features a removable cover.
  • Locking system with a swivel lever handle on the front door (prepared for the installation of a profile half-cylinder; adapter included).
  • Slide-in cable entry with a foam rubber seal at the bottom.

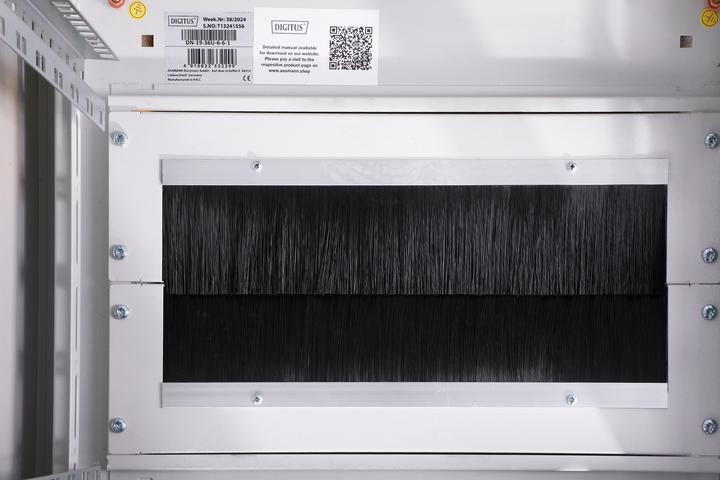

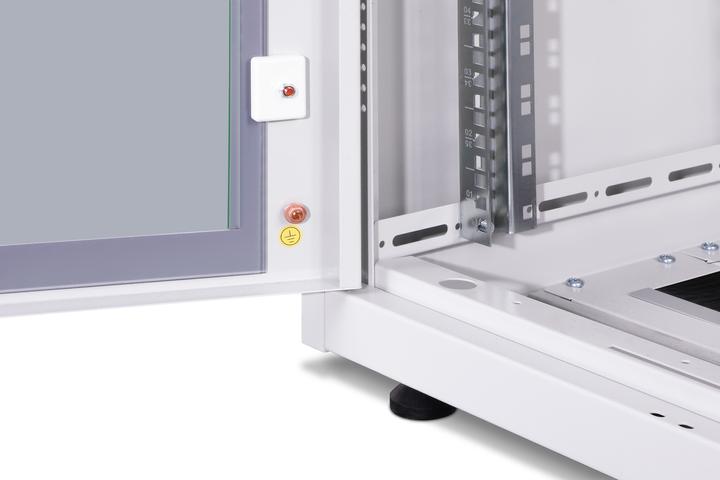

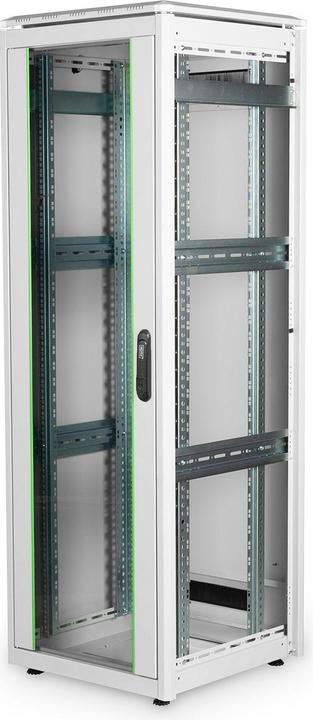

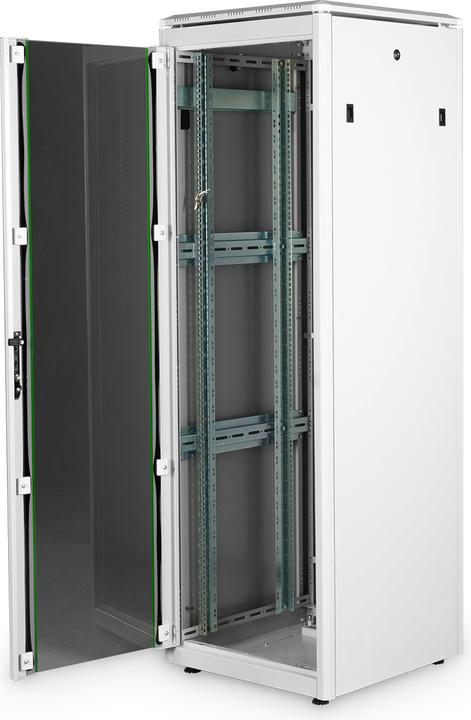

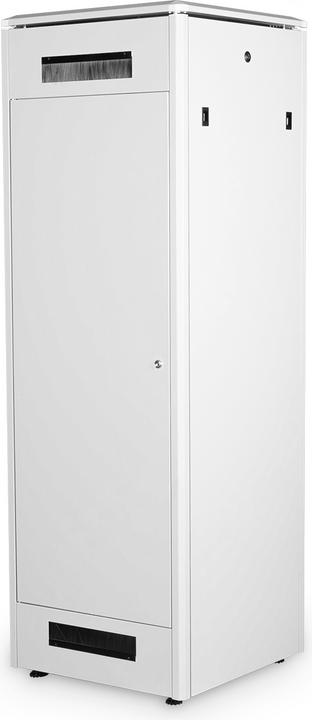

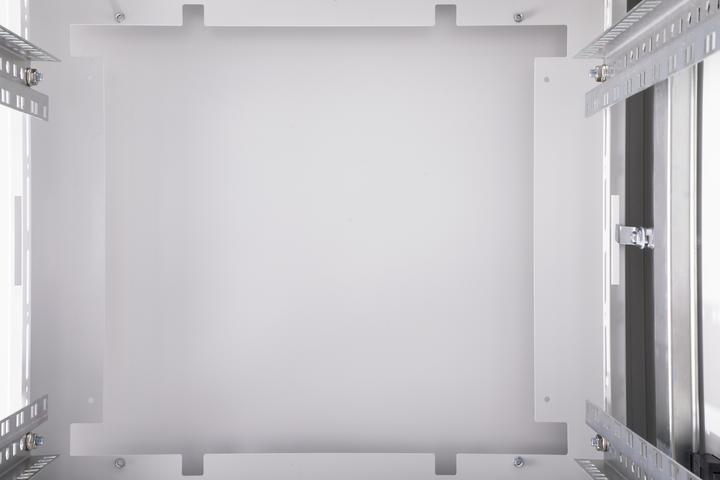

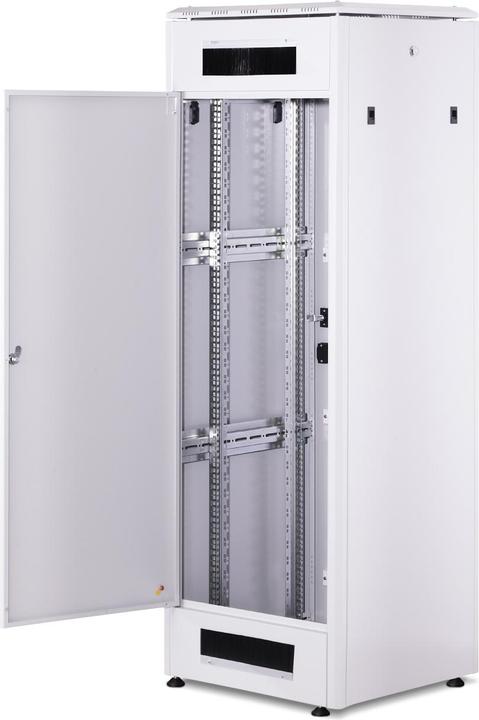

The network cabinets of the Unique Series are designed for particularly comfortable and flexible network cabling. Brush-equipped entries in the top and bottom (from 26U and 800 mm cabinet width), a slide-in entry in the bottom chassis with a foam rubber seal, and rear brush strips above and below the rear door (from 26U) allow for versatile use in various application scenarios. Vertical cable management channels with covers, installed next to the profile rails (from 800 mm cabinet width), complete the design. A recessed, removable cover with ventilation slots ensures improved air circulation. This sits above a special construction for easy installation of a fan module. Two pairs of galvanized 483 mm (19") profile rails, labeled with height units readable in both directions, are installed inside. They can be adjusted in depth and are connected with additional depth braces in the cabinet. Each cabinet is a robust steel construction made from up to 1.5 mm thick steel sheet. The color is applied in the form of electrostatic powder coating in standard colors gray (RAL 7035) and black (RAL 9005). Modular lockable and removable side panels and doors enhance accessibility. A door hinge reversal can be performed. Furthermore, due to the disassemblable construction, the cabinets can be completely disassembled if necessary.

Key specifications

Type
Floor standing cupboard
Usable installation depth
370 mm
Protection type (IP code)
IP20
Server cabinet features
Lockable
Item number
4665312

General information

Manufacturer
Digitus
Category
Server cabinets
Manufacturer no.
DN-19 36U-6/6-1
Release date
28.4.2015
External links

Colour

Colour
Grey
Exact colour description
Light greyRAL 7035

Material

Material group
Metal
Material
Steel

Server cabinet properties

Type
Floor standing cupboard
Rack size
19 inch rack
Form factor size
36 RU
Usable installation depth
370 mm
Max. weight
800 kg
Protection type (IP code)
IP20
Wall thickness
1.50 mm
Server cabinet features
Lockable

Origin

Country of origin
Turkey

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Height
1787 mm
Width
600 mm
Length
600 mm
Weight
76 kg

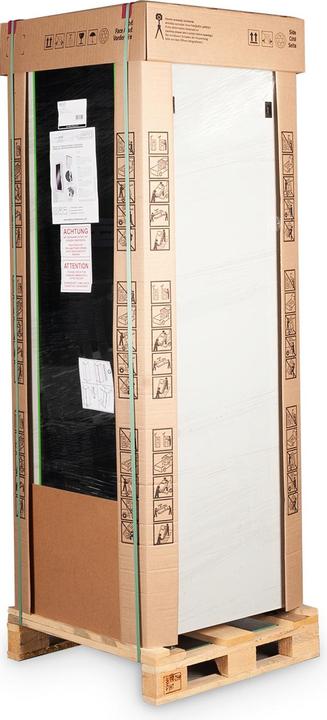

Package dimensions

Length
63 cm
Width
68 cm
Height
179 cm
Weight
32 kg
