Eaton C22-DL-W-K10-24-P1
Product details

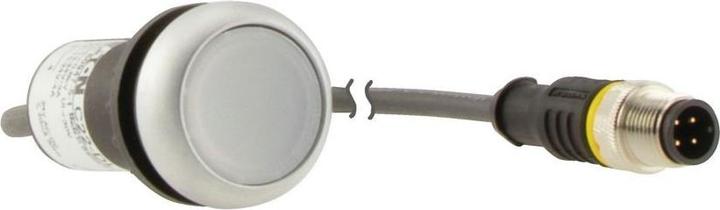

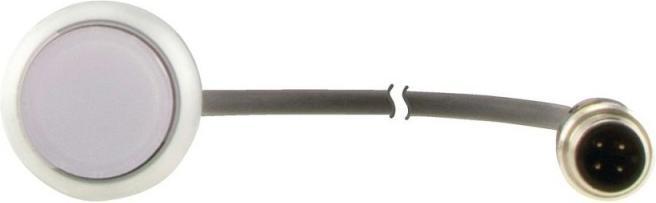

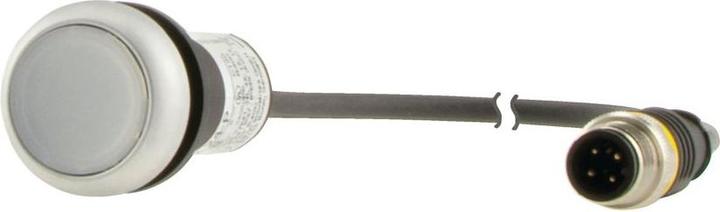

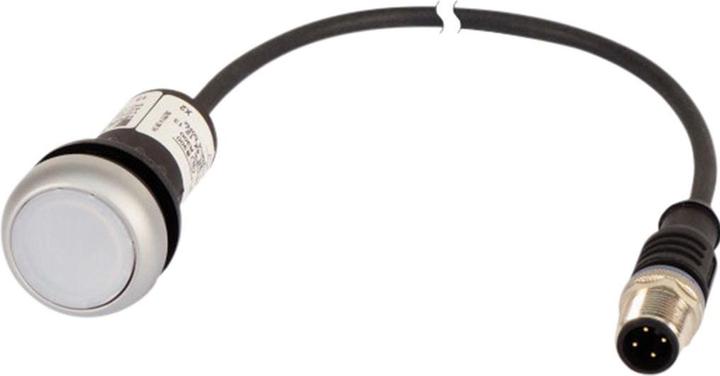

The Eaton C22-DL-W-K10-24-P1 is a high-quality illuminated push button switch designed for a variety of applications in industrial and commercial environments. With a diameter of 22 mm and a length of 56 mm, this switch offers a compact design that is ideal for flush mounting. The push button is equipped with an LED light that provides white illumination, ensuring clear visibility. The robust construction made of PUR plastic and the high protection rating of IP65 to IP69K make it particularly resistant to dust and water, making it well-suited for use in demanding environments. The switch is designed for a contact voltage of 24 VAC and 24 VDC and can handle a contact current of up to 4 A at 24 VAC and 3 A at 24 VDC. Connection is made via a 4-pole cable with an M12A connector, allowing for easy integration into existing systems.
- High protection rating IP65 to IP69K for maximum durability
- LED illumination in white for clear visibility
- Compact design with a diameter of 22 mm
- Easy integration via 4-pole M12A connector
- Robust construction made of PUR plastic.
Colour | White |
Mounting type | Built-in installation |
Number of actuation levels | 1 x |
Width | 150 mm |
Item number | 32066843 |
Manufacturer | Eaton |
Category | Buttons + Switches |
Manufacturer no. | 185556 |
Release date | 17.10.2022 |
Colour | White |
Exact colour description | White |
Material group | Plastic |
Material | PUR plastic |
Operating mode | Key |
Number of actuation levels | 1 x |
Mounting type | Built-in installation |
Mounting type | Engagement |
LED colour | White |
Number of poles | 1 x |
Nominal voltage | 24 V |
Nominal current | 4 A |
Protection type (IP code) | IP65, IP66, IP67, IP69K |
Switch + push-button Additional function | Lighting |
Country of origin | Germany |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 4-pole, Cable length: 0.2 m, Complete device, Connection to SmartWire-DT: no, Connection type: Cable (black) with M12A plug, Design: flat, EAN: 4015081810505, groping, Illuminated push-button, IP65 (rear), Ip67, IP69K (front), Key plate unlabelled, Key plate: white, Labelling: without, LED colour: white, Protection class: IP66, Rated operating voltage LED: 24 V AC/DC, RMQ compact solution, S = Normally open contact: 1 S, Standards and regulations: IEC/EN 60947-5-1, Titanium front ring, VDE 0660 |
Length | 220 mm |
Width | 150 mm |
Height | 3 mm |
