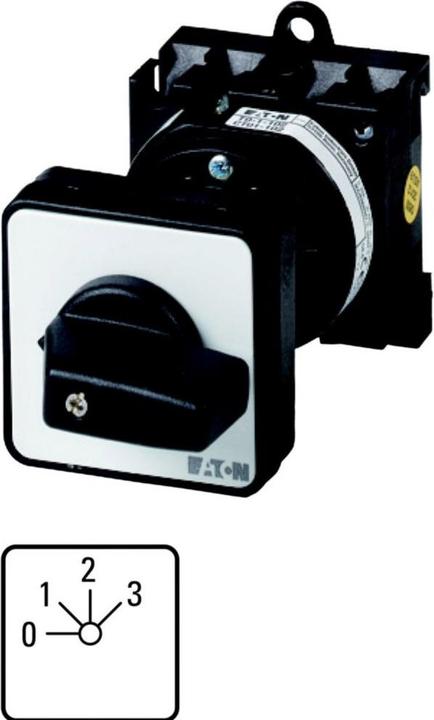

The T0-2-8316/Z from Eaton is a versatile step switch specifically designed for heating applications. With a robust design for panel mounting and an IP65 protection rating, this switch is ideal for use in demanding environments. The switch features four contacts and a latching switching behavior with a 0 position, allowing for precise control. The switching angle of 45° ensures user-friendly operation. The T0-2-8316/Z complies with standards such as IEC/EN 60947, VDE 0660, IEC/EN 60204, CSA, and UL, highlighting its reliability and safety. With a rated operational power of 5.5 kW at 400 V and a rated continuous current of 20 A, this switch is suitable for a wide range of applications and offers high performance.
Item number | 31799617 |
Manufacturer | Eaton |
Category | Buttons + Switches |
Manufacturer no. | 11803 |
Release date | 17.10.2022 |
Material group | Plastic |
Material | Plastic |
Mounting type | Screw fastening |
Number of poles | 3 x |
Nominal voltage | 400 V |
Nominal current | 11.50 A |
Max. Switching capacity | 4000 W |
Protection type (IP code) | IP65 |
Country of origin | United Kingdom |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 2 unit(s), 20 A, 45 °, 50 - 60 Hz 400 V: P = 5.5 kW, Contacts: 4, CSA, Front shield: 0-3, IEC/EN 60204, Intermediate building, Rated continuous current: Iu = 20 A, Rated operating power AC-23A, resting, Standards and regulations: IEC/EN 60947, Step switch for heating, Switch-disconnector according to IEC/EN 60947-3, T0, UL, VDE 0660, with 0-position |
