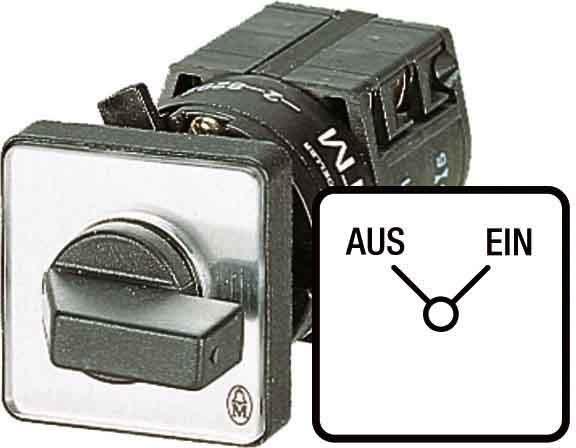

The TM-6-8370/E from Eaton is a versatile switch designed for various control applications. With a robust design and an IP65 protection rating, this control switch is ideal for use in demanding environments. The switch features 12 contacts and offers a latching switching behavior without a 0 position, allowing for precise control. The switching angle of 60° ensures user-friendly operation. The TM-6-8370/E is rated for an operational power of up to 3 kW at 400 V and complies with relevant standards and regulations, including IEC/EN 60947 and VDE 0660. This panel-mounted switch is a reliable choice for applications requiring high performance and safety.
Mounting type | Built-in installation |
Item number | 33662650 |
Manufacturer | Eaton |
Category | Buttons + Switches |
Manufacturer no. | 93861 |
Release date | 17.5.2023 |
Material group | Plastic |
Material | Plastic |
Mounting type | Built-in installation |
Mounting type | Screw fastening |
Number of poles | 6 x |
Nominal voltage | 400 V |
Nominal current | 10 A |
Max. Switching capacity | 6600 W |
Protection type (IP code) | IP65 |
Country of origin | Austria |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 50 - 60 Hz 400 V: P = 3 kW, 6 Assembly unit(s), Auxiliary current switch according to IEC/EN 60947-5-1, Contacts: 12, Control switch according to IEC/EN 60947-5-1, CSA, Design: Built-in, Front shield: 1-2, Protection class: Front IP65, Range: Control switches, Rated continuous current: Iu = 10 A, Rated operating power AC-23A, Standards and regulations: IEC/EN 60947, Switching angle: 60 °, Switching behaviour: latching, Toggle switch, Type connoisseur: TM, UL, VDE 0660, with black toggle and front shield, without 0-position |
