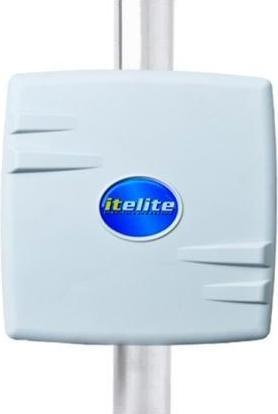

IT ELITE MRA50019 - 5 GHz, 19 dBi Panel Antenna + Enclosure

Antenna with a multifunctional enclosure operating in the 5 GHz band, featuring 19 dBi gain and horizontal or vertical polarization. The enclosure provides ample space for a RouterBOARD or other electronic equipment.

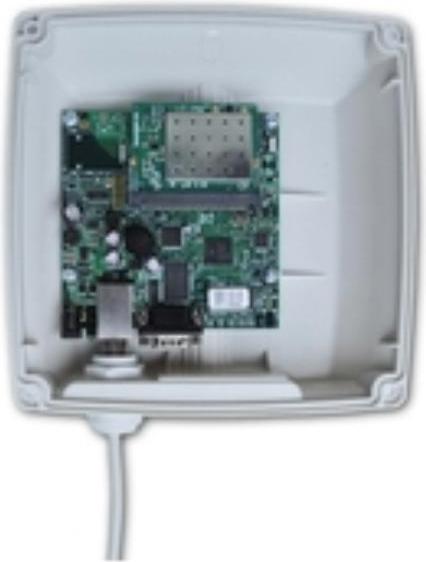

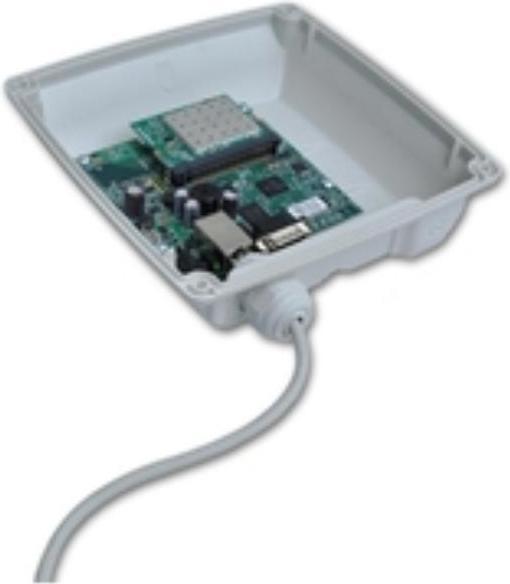

The enclosure is equipped with a special cable gland that allows for an easy connection to the internet network. LAN cables can be connected without removing the RJ45 connector. Specifically designed for use in harsh weather conditions, the corrosion-resistant material even allows for use in saltwater environments. The high quality of the mounting elements ensures easy alignment and stable operation. The enclosure has suitable locations for MikroTik RouterBOARDs of the 411 and 711 series.

Main Features:

• 19 dBi gain
• LED display at the bottom
• Special weatherproof enclosure for outdoor use
• Suitable for MikroTik RouterBOARDs
• Highest protection class (EN 60529) IP67
• Horizontal or vertical polarization
• Wall mount optional
• Designed for use in all weather conditions

Applications:

• 5 GHz band WLAN
• IEEE 802.11a WLAN systems
• RLAN
• FWA
• WiMAX

Electrical Properties:

• Frequency 5.1 - 5.9 GHz
• Gain: 19 dBi
• Polarization: horizontal or vertical
• Horizontal beamwidth: 20°
• Vertical beamwidth: 20°
• VSWR:
• Impedance: 50 Ohm
• Front-to-back ratio: > 33 dB
• Lightning protection: grounding

Enclosure Properties:

• Technology: Microstrip
• Material: UV-resistant
• Color: gray
• Protection class (EN 60529): IP 67
• Min. temperature: -40°C / -40°F
• Max. temperature: 80°C / 176°F

Mechanical Properties:

• Compatible with: RB411 and RB433 series

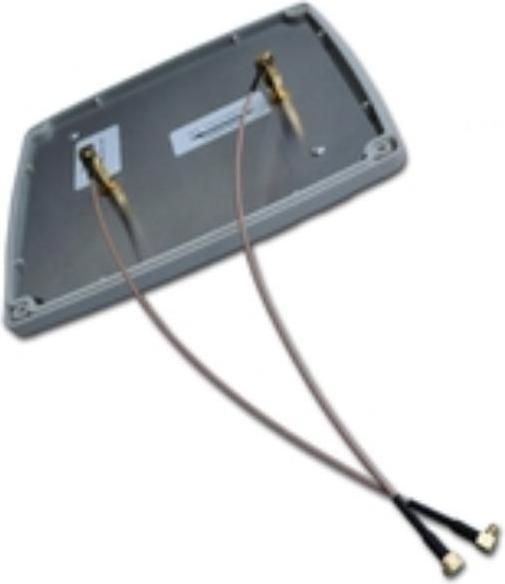

• Antenna connector: SMA socket, U.FL or MMCX pigtail optional
• Dimensions: 180 x 180 x 45 mm
• Weight: 0.6 kg / 1.3 lbs.
