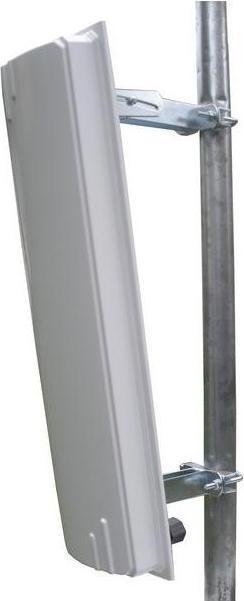

IT ELITE PRO-SEC35016V - 3.5 GHz, 16 dBi Sector Antenna + Box

Professional sector antenna operating in the 3.5 GHz band, with 16 dBi gain, vertical polarization, and space for electronics.

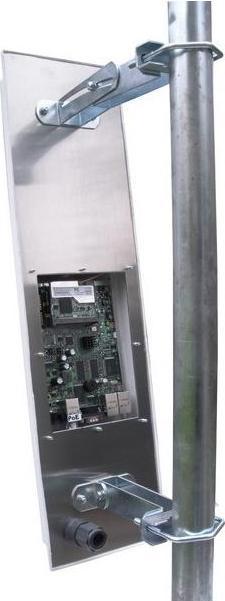

The waterproof outdoor enclosure provides ample room for RouterBOARDs or other electronic accessories. The enclosure is equipped with a special RJ-45 waterproof Ethernet connector for easy network connection and PoE.

Perfectly suited for use in harsh weather conditions, as the corrosion resistance of the materials allows the antenna to operate even in saltwater environments. A professional mounting system with a 0-15 degree scale ensures easy and smooth tilt adjustment as well as stable operation.

This product is excellent for point-to-point and multipoint connections. The enclosure features appropriate mounting holes for MikroTik RouterBOARD models 411 and 433 series.

Key Features:

• 17 dBi sector gain
• Special weatherproof enclosure for outdoor use
• Highest protection class IP 66
• Suitable for MikroTik RouterBOARDs
• High-quality construction
• Vertical polarization
• Robust mounting elements
• Easy alignment and installation
• Designed for use in all weather conditions

Applications:

• 3.5 GHz band Wireless LAN
• WIMAX
• Point-to-multipoint applications

Electrical Properties:

• Frequency: 3.4 - 3.7 GHz
• Gain: 16 dBi
• Polarization: Vertical
• Horizontal beamwidth: 90°
• Vertical beamwidth: 10°
• VSWR:
• Impedance: 50 Ohm
• Front to Back ratio: > 35 dB
• Lightning protection: DC grounding

Enclosure Properties:

• Technology: Microstrip
• Material: UV resistant
• Color: White
• Protection class (EN 60529): IP 66
• Minimum temperature: -40°C
• Maximum temperature: 80°C

Mechanical Properties:

• Compatible with: RB411 and RB433 series
• Input: SMA socket, U.FL or MMCX pigtail optional

Enclosure Connection: Waterproof Ethernet connector
External dimensions: 580 x 150...
