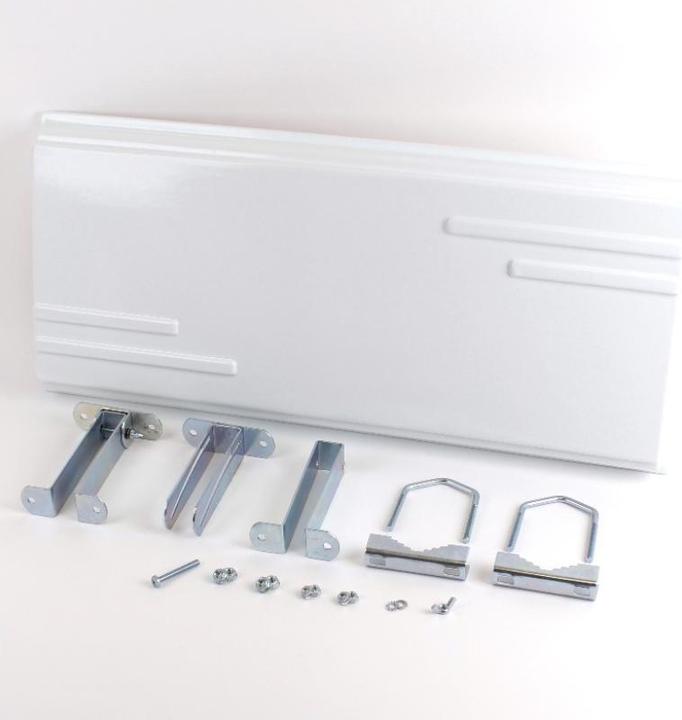

Itelite SEC-XL24/50DP - 2.4 & 5 GHz, 2x 15 dBi dual-polarized sector antenna

Dual-band and dual-polarization in one housing, with two antennas in the 2.4 GHz band and two in the 5 GHz band. The antennas are vertically and horizontally polarized. It is the ideal solution for MIMO configurations.

Perfectly suited for operation under challenging weather conditions, as the corrosion resistance of the materials allows the antenna to be used in saltwater environments. A professional mounting system with a 0-15 degree scale ensures easy and smooth tilt adjustment as well as stable operation.

Main features:

• Sector gain
• 2.4 GHz dual & 5 GHz dual in one housing
• 2x dual polarization
• Special weatherproof outdoor housing
• Highest protection class IP 67
• High-quality construction
• High-load fastening elements
• Easy installation and tilt adjustment
• Designed for operation in any weather

Applications:

• MIMO
• 2.4 GHz band WLAN
• 5 GHz band WLAN
• IEEE 802.11a/b/g/n WLAN systems
• Point-to-multipoint applications

Electrical properties:

• Frequency: 2.4 & 5 GHz
• Gain: 2x 15 dBi in 2.4 GHz & 2x 18 dBi in 5 GHz
• Polarization: 2x dual H&V
• Horizontal beamwidth: 90° (-3 dB), 120° (-6 dB)
• Vertical beamwidth: 12° in 2.4 GHz & 6° in 5 GHz
• VSWR:
• Impedance: 50 Ohm
• Front-to-back ratio: > 35 dB

Housing properties:

• Technology: Microstrip
• Material: UV-resistant
• Color: white
• Protection class (EN 60529): IP 66
• Min. temperature: -40 °C
• Max. temperature: 120 °C

Mechanical properties:

• Antenna connection: 4x N socket
• External dimensions: 580 x 260 x 50 mm
• Weight: 3 kg.
