Eltako Switching relay

Price in EUR including VAT
4Ratings
BrandMore from Eltako
Delivered between Sat, 11.4. and Wed, 15.4.
More than 10 pieces in stock at supplier
free shipping

input voltage3

Number of poles2

Product details

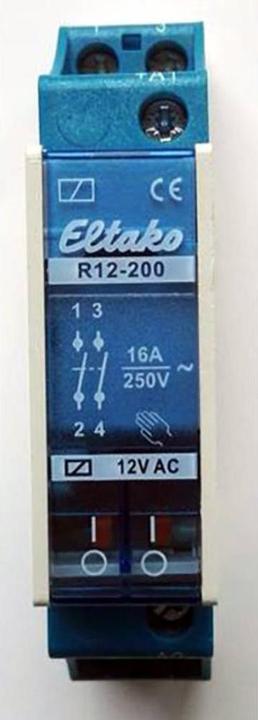

Eltako Switching Relay for Series-EB R12-200-12V

Manufacturer: Eltako
Designation: Switching Relay for Series-EB 2S 16A
Type: R12-200-12V
Function: Other
Mounting Type: DIN Rail
Width in Division Units: 1
Installation Depth: 55 mm
Number of Contacts as Normally Open: 2
Control Voltage 1: 12 V
Control Voltage Type 1: AC
Control Voltage Frequency 1: 50 Hz
Rated Current: 16 A
Type of Supply Voltage: AC
Max. Incandescent Load: 2300 W
Max. Fluorescent Load: 2300 VA
Max. Fluorescent Load (Duo Circuit): 2300 VA
Max. Fluorescent Load (Parallel Compensated): 500 VA
Max. Switching Current (cos phi 0.6): 10 A

Eltako Switching Relay for Series-EB R12-200-12V: Additional Details
2-pole 16A/250V AC. Series installation devices for mounting on DIN rail EN 60715 TH35 with manual operation and switching position indication. 1 division unit = 18 mm wide, 55 mm deep. Duty cycle 100%. Control power requirement 1.9 W. Contacts 2 normally open. Contact gap 3 mm. Test voltage contact/contact 2000 V and test voltage control terminals/contact 4000 V. The compatible electronic switching relays ER12DX-UC, ER12-200-UC, and ER12-110-UC can also be used. The universal control voltage UC covers the voltage range of 12-230 V AC 50-60 Hz and 12-230 V DC.
EAN: 4010312200506.

Key specifications

Relay type
Switching relay
input voltage
12 V
Output voltage
250 V
Electric current output
16 A
Output current type
AC
Number of poles
2x

General information

Item number
17823861
Manufacturer
Eltako
Category
Relays
Manufacturer no.
22200011
Release date
10.12.2021

Relay properties

Relay type
Switching relay
input voltage
12 V
Output voltage
250 V
Electric current output
16 A
Output current type
AC
Switching function
Normally open
Number of openers
0x
Number of closers
2x
Number of poles
2x
Max. Switching capacity
2.30 kW

Smart home features

Smart home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
12,39 kg
Climate contribution
EUR 0,31

Scope of delivery

Scope of delivery
Switching relay for series EB 2S 16A

Product dimensions

Width
18 mm
Height
55 mm
Weight
101 g

Legal Notice

Product Safety

Package dimensions

Length
8.80 cm
Width
5.90 cm
Height
3 cm
Weight
108 g
