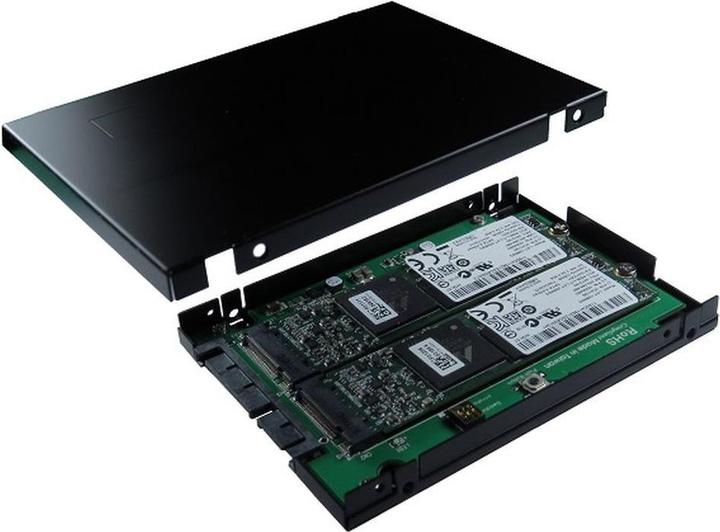

The EX-3606 converter can be used as a replacement for a 2.5" hard drive or SSD. A SATA 3 connection on the motherboard or a SATA 3 controller is required for connecting the EX-3606. The M.2 NGFF modules 2280, 2260, 2242, and 2230 can be used and support both B-Key and B+M Key. The EX-3606 supports RAID 0/1 and JBOD. An integrated ASM1092R high-performance processor supports two M.2 NGFF 2280, 2260, 2242, and 2230 boards. It is 100% mechanically compatible with a 2.5" mounting frame with a 9.5 mm form factor. RAID modes such as RAID 0 (fast), RAID 1 (security), and JBOD (volume) can be switched via hardware between strapping or GUI. The 22-pin SATA (signal and power) connector supports SATA 3 Revision 3.1. The device is operating system independent and requires no drivers. A green LED indicates active SATA 3, while a red LED signals errors with the M.2 SSD.

Main features:

• Storage media: Size of storage drive 2.5"
• Number of supported storage drives: 1
• Supported storage drives: SSD
• Supported storage drive interfaces: M.2, Serial ATA III
• Supported drive height: 9.5 mm
• RAID Level: 0, 1

Design:

• Product color: Black
• LED indicators: Alarm, Data

Technical details:

• Hard drive form factor: 2.5"
• Operating conditions: Operating temperature range 0 - 55 °C, storage temperature range -40 - 70 °C, humidity during operation 5 - 95%

Weight & dimensions:

• Weight: 200 g
• Width: 100.2 mm
• Depth: 69.8 mm
• Height: 9.5 mm

Package contents:

• Number of storage drive bays: 1
• Operating manual: Yes
• Screws included: Yes
• Packaging type: Box.
