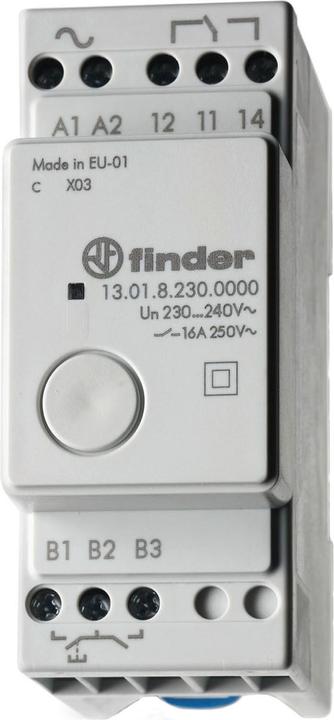

Finder impulse switch 13.01.8.230.0000
Manufacturer: Finder
Designation: Impulse switch 1S 10A 230VAC
Type: 13.01.8.230.0000
Function: Electronic switch
Mounting type: DIN rail
Width in pitch units: 2
Installation depth: 58 mm
Number of contacts as changeover contacts: 1
Control voltage 1: 230 V
Control voltage type 1: AC
Frequency of control voltage 1: 50-60 Hz
Rated switching current: 16 A
Supply voltage: 230 V
Voltage type of supply voltage: AC
Max. incandescent lamp load: 2000 W
Max. fluorescent lamp load: 1000 VA
Max. fluorescent lamp load (duo circuit): 1000 VA
Max. fluorescent lamp load (parallel compensated): 750 VA
Max. switching current (cos phi 0.6): 12 A
Suitable for manual operation: No

Finder impulse switch 13.01.8.230.0000: more details
Impulse switch with electronic input circuit, 1 changeover contact for 16 A / 250 V AC (AC1), max. switching capacity at 230 V AC: AC1 4000 VA, AC15 750 VA, lamp loads: Incandescent and halogen lamps 2000 W, energy-saving lamps 400 W, LED (230 V AC) 400 W, LV halogen lamps or LED with ECG 400 W, LV halogen lamps or LED with CCG 800 W, fluorescent lamps with ECG 1000 W, fluorescent lamps with CCG 750 W, contact material AgSnO², 100% ED, suitable for SELV applications, dielectric strength between supply and contacts: 4 kV, supply voltage: 230 V AC, EAN: 8012823268972.
