Four-Faith F-R100-FL-SIM2 - M2M 3G/4G Industrial Router, Cellular (LTE/WCDMA), WiFi, 2x SIM

Price in EUR including VAT
Ratings
BrandMore from Four-Faith
Delivered between Thu, 3.7. and Sat, 5.7.
Only 1 item in stock at supplier
free shipping

Product details

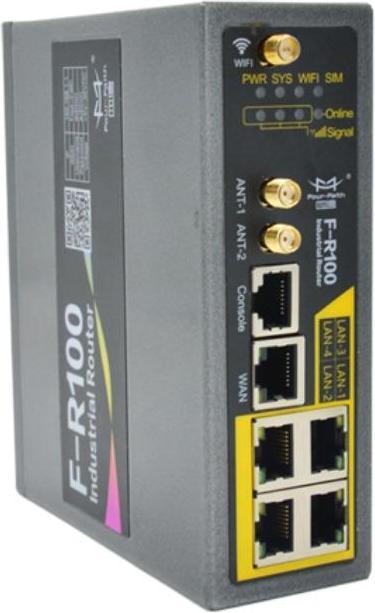

F-R100-FL-SIM2 - M2M 3G/4G Industrial Router, Cellular (LTE/WCDMA), WiFi, 2x SIM

The Four-Faith F-R100 is an intelligent cellular router designed for industrial applications requiring faultless connectivity. It provides secure, reliable, real-time remote connectivity for SCADA, distribution management systems, metering, and more. With software-defined multi-carrier networking, dual SIM models, 802.11n, and global 2.5G/3G/HSPA+/LTE options, it is easy to get connected. The F-R100 features DIN-rail mounting, a wide operating temperature range, and IP30 metal housing, making it a convenient yet reliable solution for any industrial wireless application.

Cellular WAN
Supported frequency bands: LTE: B1, B2, B3, B4, B5, B7, B8, B20, B28; WCDMA: 2100 (B1), 1900 (B2), 850 (B5); EV-DO/CDMA: 800 (BC0); GSM/GPRS/EDGE: 850/900/1800/1900. Automatic SIM-based network operator switching.

Host Interfaces

  • 10/100 Base-T RJ45 Ethernet port
  • RS-232 or RS-485 serial console port
  • 3x SMA antenna connectors (Wi-Fi and double-cellular)
  • Active GPS antenna support (optional)
  • (6) pin 3.5 mm terminal block

Management Interfaces

  • Web-based user interface
  • Device configuration templates
  • Software and radio module firmware updates
  • AT Command Line Interface (Telnet/SSH/serial)
  • SMS commands (optional)

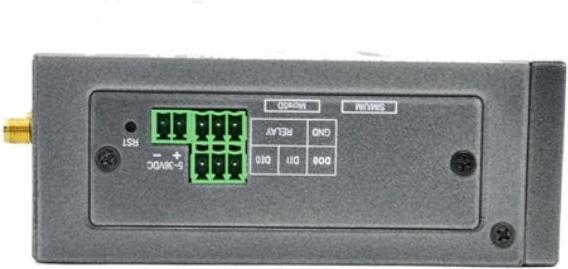

Input/Output

  • (6) pin 3.5 mm terminal block
  • (2) DI, (1) DO, (1) relay
  • Input ON voltage: 5 to 30 V DC
  • Input OFF voltage: 0 to 3 V DC
  • Output: Relay: 1 A, 250 V AC/30 V DC

LAN

  • DNS, DNS proxy
  • DHCP server
  • IP passthrough (optional)
  • VLAN
  • Host interface watchdog
  • PPPoE

Serial

  • TCP/UDP PAD mode
  • Modbus (ASCII, DTU, variable)
  • PPP
  • Reverse Telnet

WiFi

  • IEEE 802.11 b/g/n, AP and client mode
  • Adjustable output power (max.: 26 dBm)
  • Access point for up to 30 clients
  • Simultaneous access point/client mode
  • WEP, WPA-PSK, WPA2-PSK, and other security options

Networking and Routing

  • Network Address Translation (NAT)
  • Port forwarding
  • Host port routing
  • VRRP
  • Reliable Static Route
  • Dynamic DNS
  • VPN: IPSec, GRE, and OpenVPN client with up to 10 concurrent tunnels.

Key specifications

Router type
Wi-Fi router
Network connections
RJ45 (5x)
Item number
22566567

General information

Manufacturer
Four-Faith
Category
Routers
Manufacturer no.
F-R100-FL-SIM2
Release date
3.10.2022

Router properties

Router type
Wi-Fi router

Mobile internet properties

LTE frequency bands
20

Network interface

Network connections
RJ45 (5x)

Voluntary climate contribution

CO₂-Emission
Climate contribution

Package dimensions

Length
31.20 cm
Width
26.60 cm
Height
7.40 cm
Weight
1 kg
