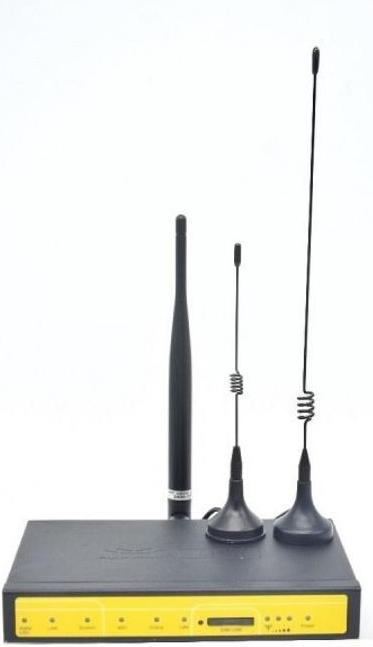

Four-Faith F8926GW - Mobile WLAN Gateway, LoRaWan + GPRS 2G/3G/4G for Indoor Use

The F8926GW is a wireless data transmission gateway based on the LoRaWAN standard protocol, applicable to terminals and NS that comply with the LoRaWAN standard. It can connect with LoRaWAN terminals in various application nodes, collects useful information, and transmits the data via a wireless 3G/4G mobile network or wired Ethernet to a cloud server.

The product utilizes a powerful industrial 32-bit CPU and a wireless module with an embedded real-time operating system as its software support platform. It offers 1x Ethernet LAN/WAN (configurable), 1x WLAN interface, supports WLAN configuration, management, and online updates, as well as DC input.

The product is widely used in the M2M industry of the IoT industrial chain, including smart grid, intelligent transport, smart home, finance, mobile POS gateways, supply chain automation, industrial automation, smart buildings, fire protection, public safety, environmental protection, meteorology, digital medicine, telemetry, agriculture and forestry, water, coal, petrochemicals, and other related fields.

Key Features:

• Communication range: 6 km
• Max. TX power: 23 +/- 2 dBm
• RT sensitivity: Max. -142 dBm (at LoRa); -70 dBm (at Wi-Fi)
• Communication bandwidth: 125 kHz, 250 kHz, 500 kHz
• 8 upstream channels, 1 downstream channel
• Reliable and low-latency wireless communication
• Speed: Adaptive connection speed
• Operating mode: Supports different frequency and same frequency
• Report to server: 3G/4G, wired network
• Wireless management: WLAN management and upgrade
• Protection class IP 65
• RF region: EU868 - Europe 863-870 MHz

Product Attributes: Gateway
Represented Solution: Smart Cities, Smart Industries, Home, Smart Building, Smart Metering
Gateway Type:...
