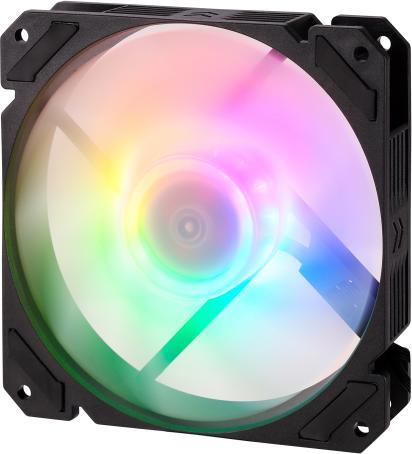

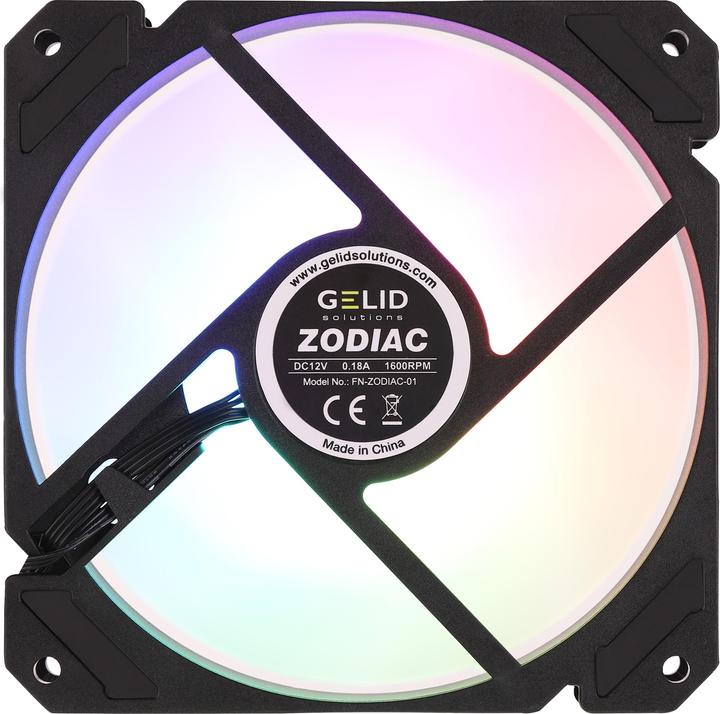

Zodiac introduces a harmonious combination of top-notch technologies and vivid design. It boasts 12 ARGB LEDs illuminating stylish lighting. It features a hydro dynamic bearing for increased reliability and an optimized impeller for enhanced airflow.

12 full color RGB LEDs: circularly mounted high-bright LEDs for a stunningly vivid RGB lighting experience.

Programmable digital-RGB control: limitless color modes and lighting effects via individually addressable RGB LEDs.

Extreme static pressure: powerful impeller with unprecedented static pressure and performance profile.

Noiseless motor drive IC: newly designed and enhanced motor driver to eliminate clicking noise.

Hydro dynamic bearing: long life hydro dynamic bearing guarantees ultra low noise.

Wide range RPM: extended fan speed in the range of 700 – 1600 RPM.

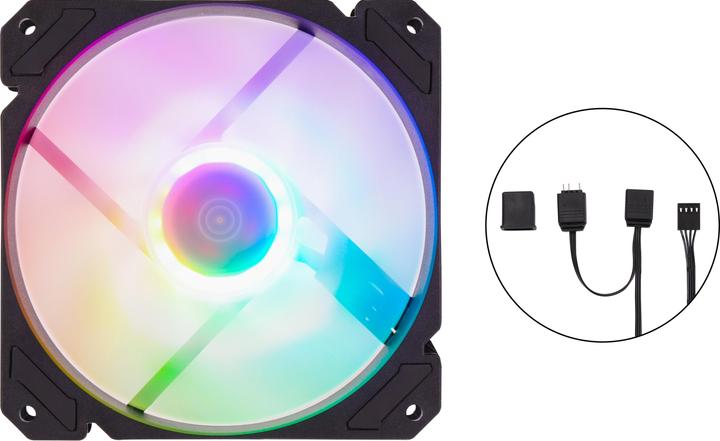

Broad compatibility: all modern motherboards with RGB sync controls and 5V addressable RGB (ARGB) headers are supported.

Standard RGB and individually addressable RGB explained: in standard RGB applications, this type of fan uses the standard RGB LED header with 4-wiring: 12V, R, G, B. All the LEDs integrated with the fan are then connected onto the same 4 busses, and they are all controlled as a whole, so they each will output exactly the same color.

It’s like you set a color for an object in your graphics editor, for example, Red: 25, Green: 50, and Blue: 125. An external RGB controller or motherboard drives the standard RGB LED fan in the same way by altering power on the color busses at a proper duty cycle – the Red, Green, and Blue bus, respectively – to output the desired RGB color.

Of course, colors can be managed dynamically, with numerous lighting effects in series. But uniformity of the LEDs – one color for all the LEDs at a time – limits RGB lighting effects to some degree.
