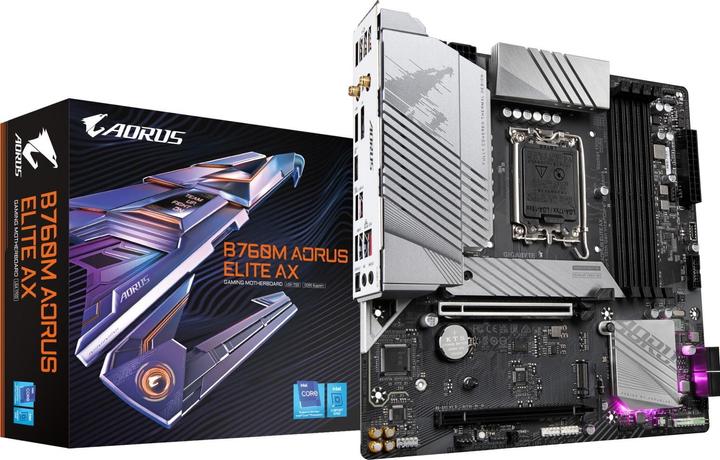

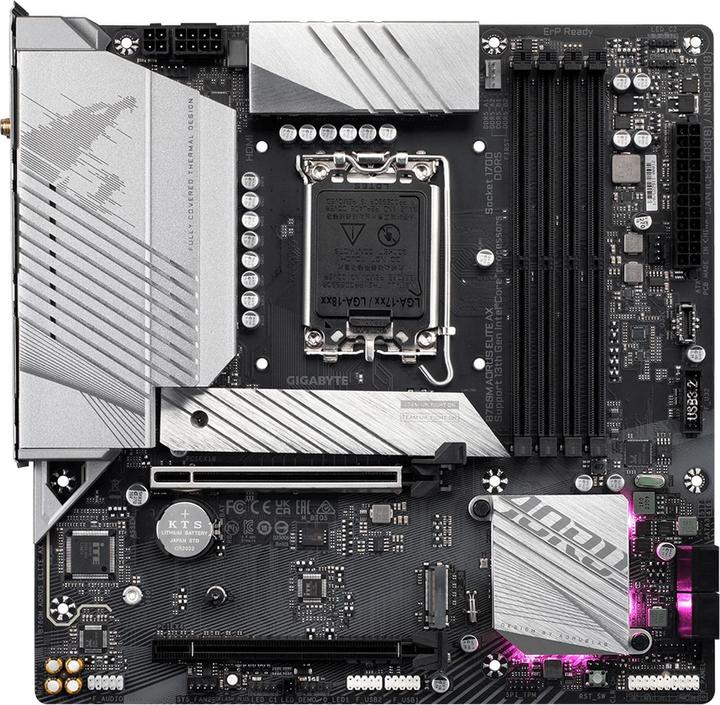

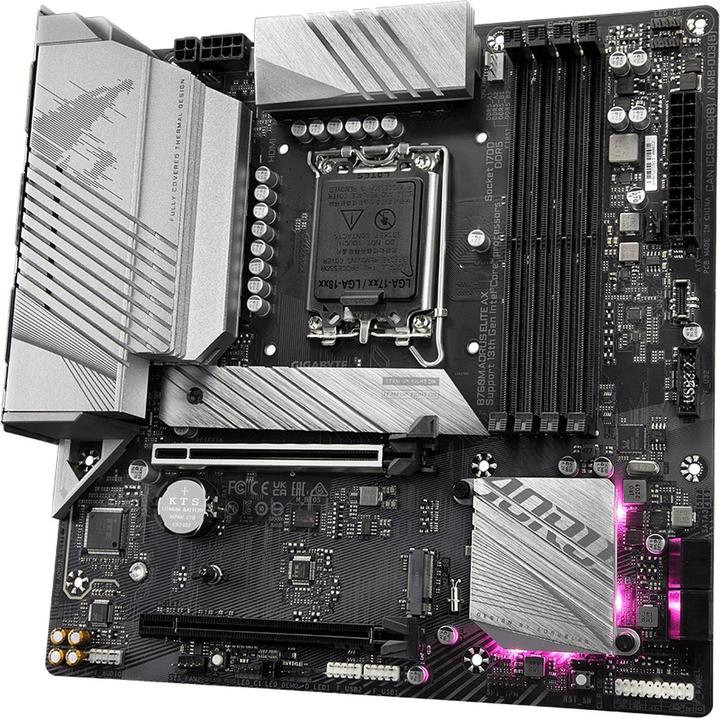

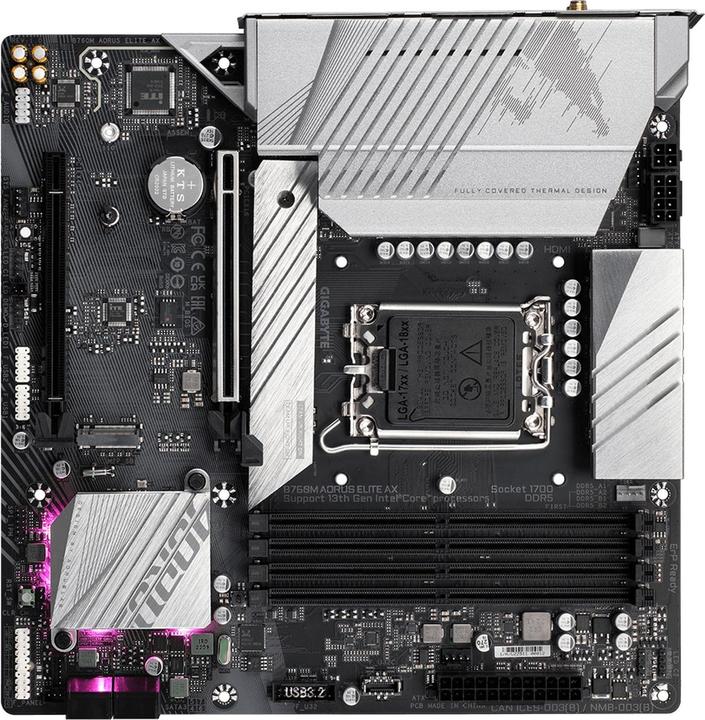

Gigabyte B760M AORUS ELITE AX
LGA 1700, Intel B760 Express, mATX2 items ordered
Product details
With the rapidly changing technological landscape, GIGABYTE consistently follows trends and offers its customers advanced features and technologies. GIGABYTE motherboards are equipped with an improved power solution, memory standards, and excellent connectivity options to ensure optimal performance for gaming. The unparalleled performance of GIGABYTE motherboards is guaranteed by an innovative and optimized thermal design, ensuring CPU, chipset, and SSD stability as well as low temperatures during heavy loads and gaming performance. GIGABYTE motherboards provide the ultimate connectivity experience with lightning-fast data transfer speeds through the next generation of network, storage, and Wi-Fi connectivity. GIGABYTE motherboards offer a range of useful and intuitive software that helps users control every aspect of the motherboard and provides customizable lighting effects with outstanding aesthetics that match your unique personality.
Processor family | Celeron, Core i3, Core i5 |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 4 x |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button |
Item number | 23653522 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B760M AORUS ELITE AX |
Release date | 9.12.2022 |
External links |
Form factor | Micro ATX (mATX) |
Socket | LGA 1700 |
Chipset | Intel B760 Express |
Mainboard features | Clear CMOS Button |
Operating system compatibility | Windows 10 |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 6 / 802.11ax |
Processor family | Celeron, Core i3, Core i5 |
Memory form factor | DIMM |
Number of memory modules (RAM) | 4 x |
Max. memory (RAM) | 256 GB |
Memory chip | DDR5 |
Max. RAM OC | 7600 MHz |
Supported memory speed | 4000 MHz, 4800 MHz, 5400 MHz, 5600 MHz, 5800 MHz, 6000 MHz, 6200 MHz, 6400 MHz, 6600 MHz, 7800 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

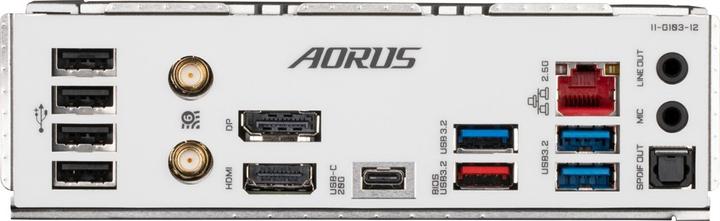

Video connections | DisplayPort (1x), HDMI (1x) |
Video connection version | Display port 1.2, HDMI 2.0 |
Multi-GPU technology | AMD Quad-GPU CrossFireX |
Network connections | RJ45 (1x) |
Ethernet controller brand | Intel |
Max. port speed | 5 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Coaxial S/PDIF (1x) |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (2x), S-ATA III (4x) |
Expansion slot | PCI Express x16 (Gen 4) (1x) |
PCI express version (max.) | 4 |
Number of fan connector | 3 |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (4x), USB-A 3.2 Gen 1 (2x) |
Power connectors | 8-pin PCI-E |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Sata Cables |
Length | 244 mm |
Width | 244 mm |
Height | 35 mm |
Weight | 1600 g |
Length | 27.90 cm |
Width | 27.90 cm |
Height | 7.80 cm |
Weight | 1.52 kg |
