Gigabyte B860I AORUS PRO ICE
LGA 1851, Intel B860, Mini-ITXMore than 10 items in stock at supplier
Product details

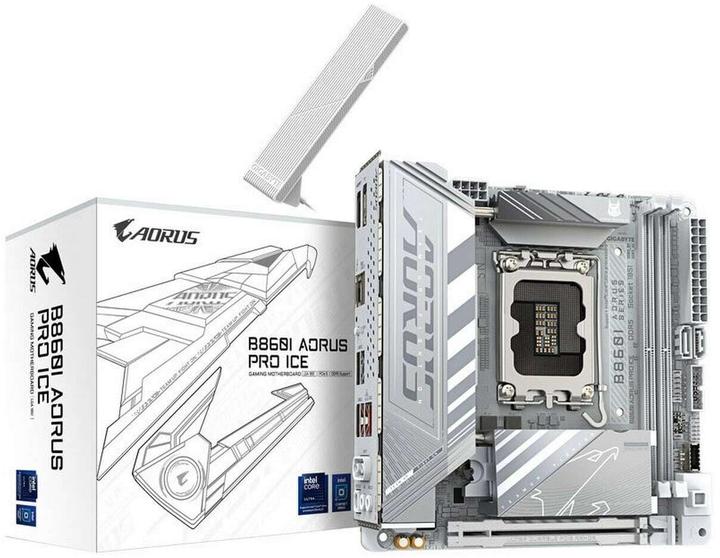

The Gigabyte B860I AORUS PRO ICE is a powerful Mini-ITX motherboard designed for the Intel Core Ultra Series 2 processors. With a socket 1851 and the Intel B860 chipset, it provides a solid foundation for compact and powerful systems. The motherboard supports up to 128 GB DDR5 RAM with speeds of up to 9200 MHz, making it ideal for demanding applications and gaming. The versatile connectivity options include HDMI, DisplayPort, Thunderbolt 4 and multiple USB 3.2 ports that enable fast data transfer. In addition, the motherboard offers expandable storage options with two SATA600 and two M.2 slots, which increases flexibility when configuring the system.
- Supports Intel Core Ultra Series 2 processors with socket 1851
- Maximum RAM capacity of 128 GB DDR5 with speeds up to 9200 MHz
- Versatile connection options: 1x HDMI, 1x DisplayPort, 1x Thunderbolt 4, 2x USB 3.2
- Expandable storage options with 2x SATA600 and 2x M.2 slots
- Robust power supply with 8+1+2+1 phase VRM for stable performance.
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory type | DDR5 RAM |
Number of memory modules (RAM) | 2 x |
Internal connection options | M.2 (2x), S-ATA III (2x) |
Wireless transmission | Bluetooth, Wi-Fi |
Mainboard features | Clear CMOS Button, Front panel audio connector |
Item number | 53976706 |
Manufacturer | Gigabyte |
Category | Motherboards |
Manufacturer no. | B860I AORUS PRO ICE |
Release date | 13.1.2025 |
Form factor | Mini-ITX |
Socket | LGA 1851 |
Chipset | Intel B860 |
Mainboard features | Clear CMOS Button, Front panel audio connector |
Operating system compatibility | Windows |
BIOS type | UEFI AMI |
Wireless transmission | Bluetooth, Wi-Fi |
Wi-Fi standard | Wi-Fi 7 / 802.11be |
Processor family | Core Ultra 5 2nd Gen, Core Ultra 7 2nd Gen, Core Ultra 9 2nd Gen |
Memory form factor | DIMM |
Number of memory modules (RAM) | 2 x |
Max. memory (RAM) | 128 GB |
Memory chip | DDR5 SDRAM |
Max. RAM OC | 9200 MHz |
Supported memory speed | 5600 MHz, 6400 MHz |
Memory type | DDR5 RAM |
RAM buffer | Unbuffered |

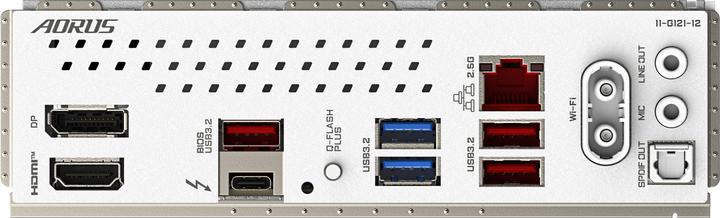

Video connections | DisplayPort (1x), RJ 45 |
Video connection version | DisplayPort 2.1, HDMI 2.1 |
Network connections | RJ45 (1x) |
Ethernet controller brand | Realtek |
Ethernet controller | Realtek RTL8125 |
Max. port speed | 2.50 Gbit/s |
Chip | Realtek ALC897 |
Audio channel | 7.1 Channel |
Audio Connections | Headphones |
RAID configuration | 0, 1, 10, 5 |
Internal connection options | M.2 (2x), S-ATA III (2x) |
Expansion slot | PCI Express x16 (1x) |
PCI express version (max.) | 5 |
Number of fan connector | 2 |
USB ports | USB-A, USB-C |
Exact USB ports | USB-A 2.0 (1x), USB-A 3.2 Gen 1 (1x), USB-A 3.2 Gen 1 (2x), USB-A 3.2 Gen 2 (3x) |
Power connectors | 24-pin ATX |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Norton Internet Security (OEM version) |
Length | 170 mm |
Width | 170 mm |
Height | 35 mm |
Weight | 1300 g |
